Audible Warnings Schematics (Radio Output, Left Front Door Open Signal and Key-In-Ignition Signal)

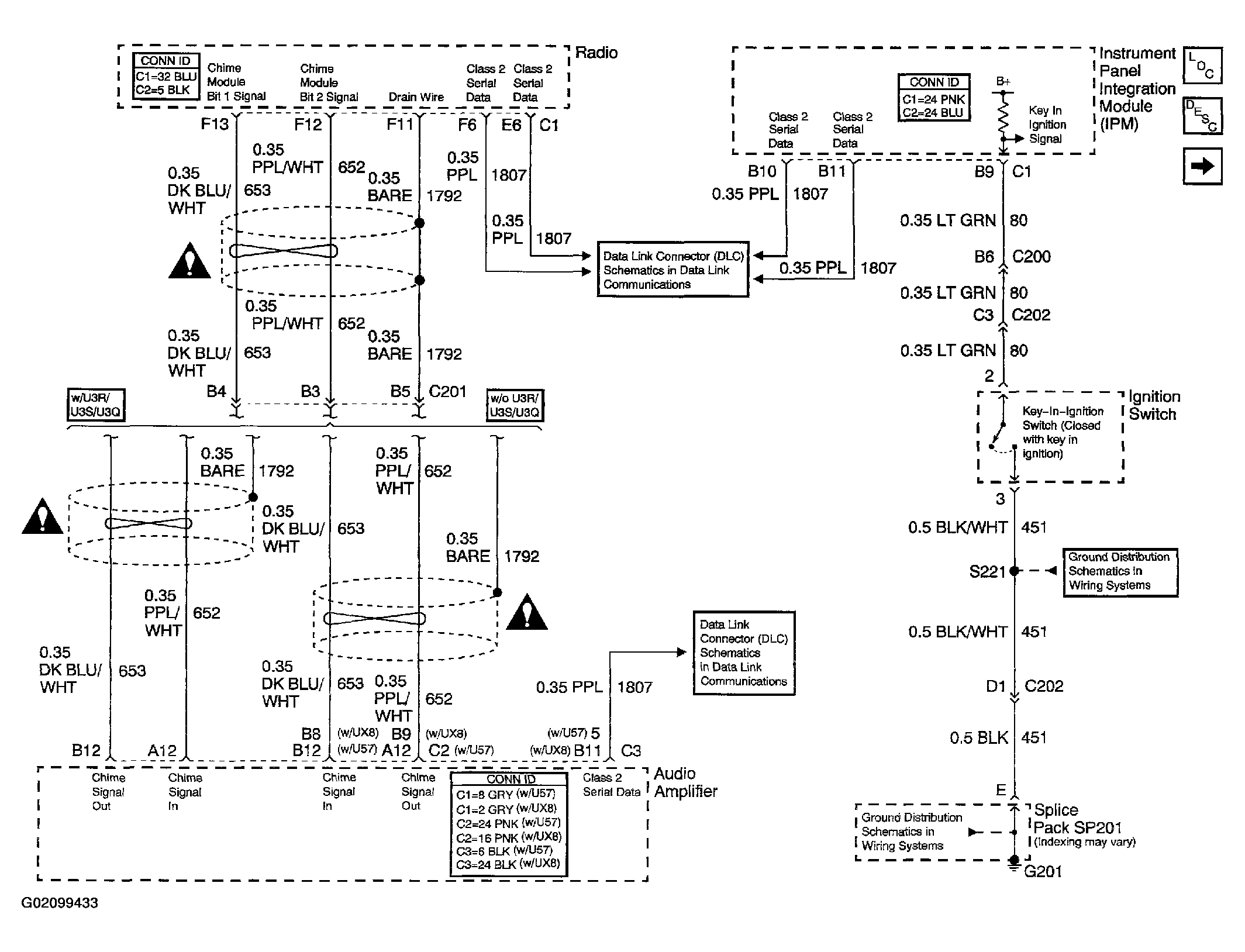

Fig 1: Audible Warnings Schematics - Radio Output, Left Front Door Open Signal And Key-In-Ignition Signal
G02099433Courtesy of GENERAL MOTORS CORP.

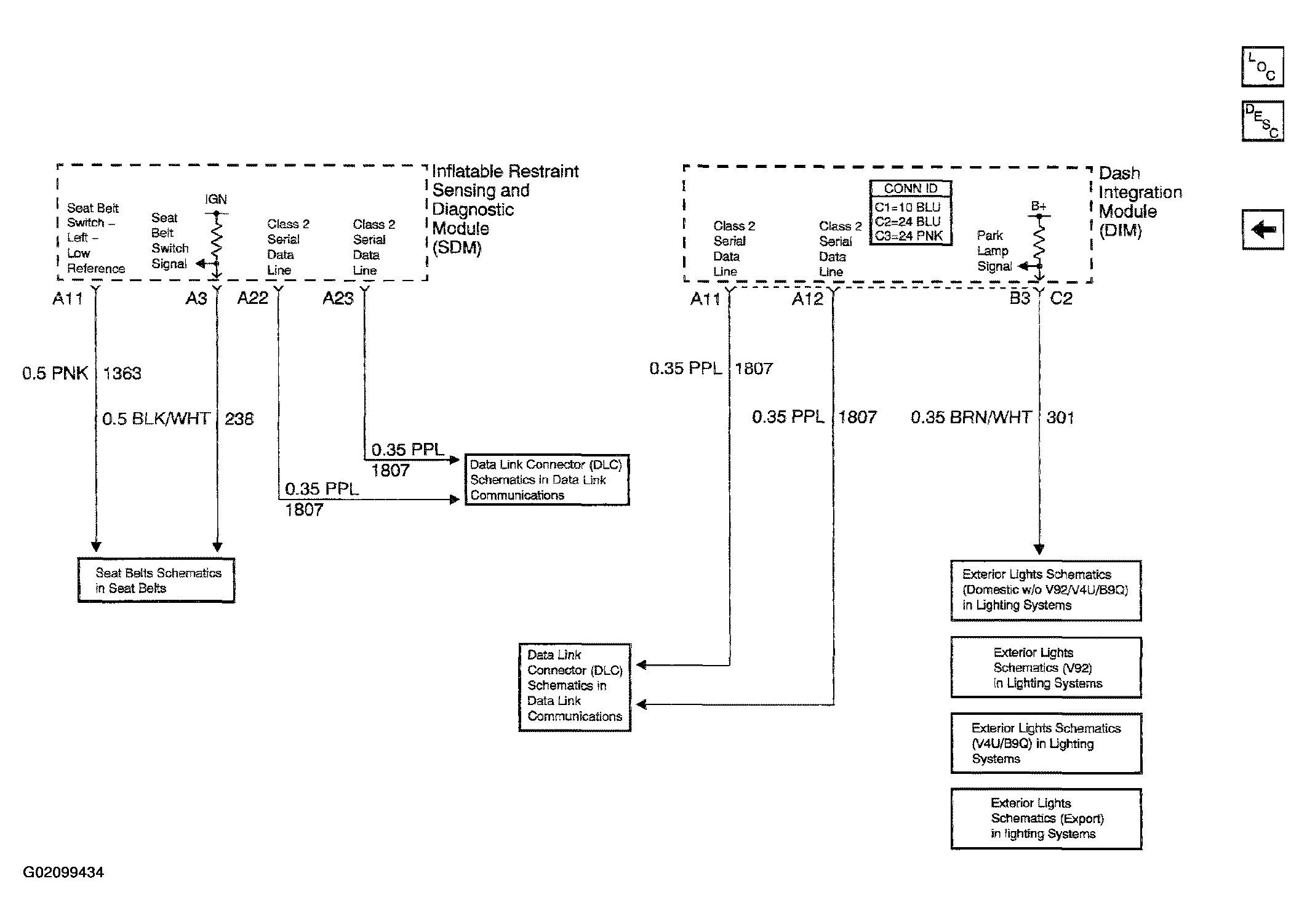

Fig 2: Audible Warnings Schematics - Seat Belt Switch Signal And Park Lamp Signal
G02099434Courtesy of GENERAL MOTORS CORP.
