Installation Procedure

  1. Connect the electrical connector to the hazard switch.
  2. Install the right accessory trim panel (1).
    NOTE: Refer to FASTENER NOTICE
  3. Install the trim panel screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the IP cluster trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .
  5. Install the IP storage compartment. Refer to STORAGE COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P)  .
  6. Install the IP upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER  .

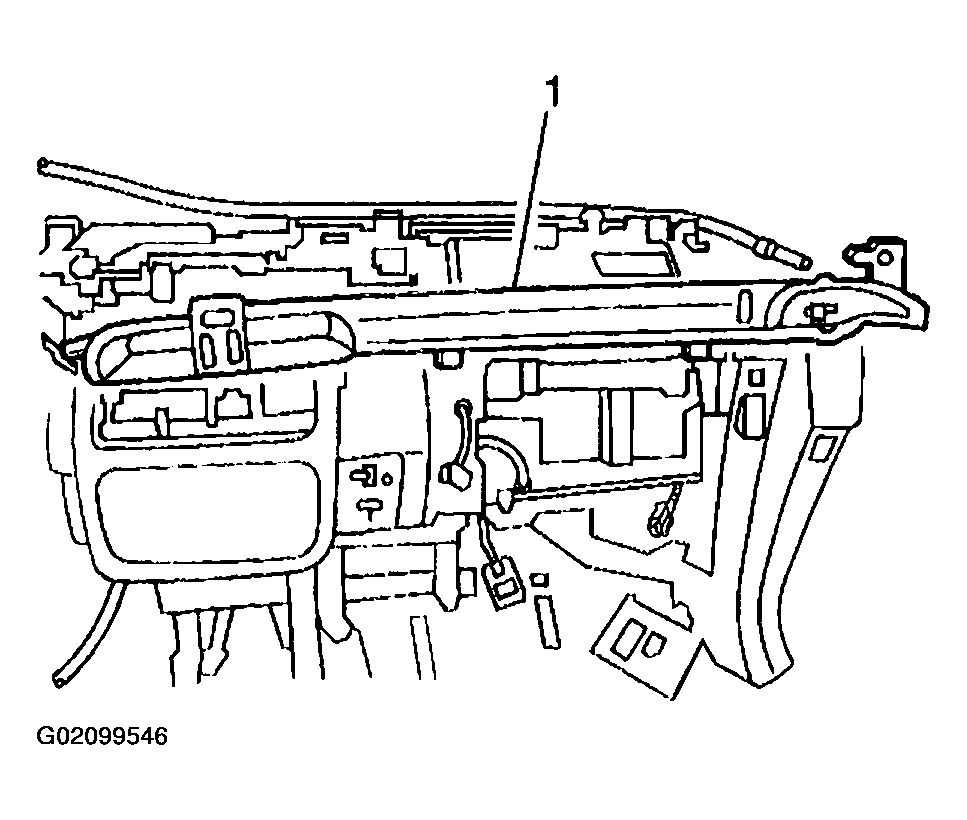

    Fig 1: Installing Right Accessory Trim Panel
    G02099546Courtesy of GENERAL MOTORS CORP.
