Removal Procedure

CAUTION: Refer to SIR CAUTION
  1. Remove the Instrument Panel (IP) upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER  .
  2. Remove the screw holding the cluster trim panel and the passenger trim panel together.

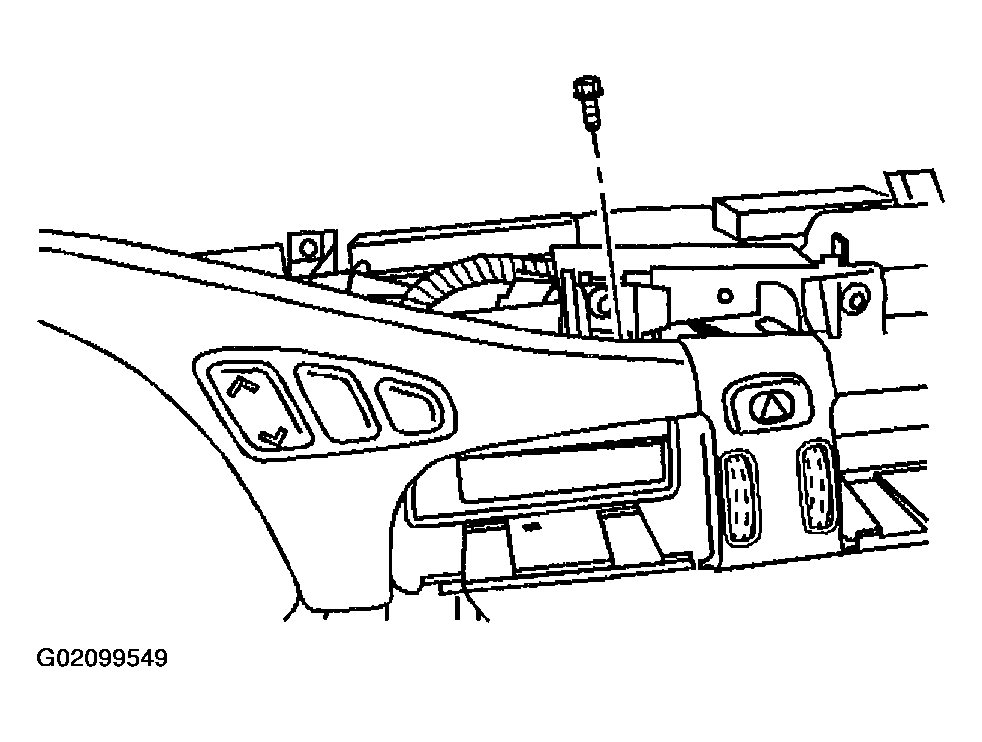

    Fig 1: Removing Screw Holding Cluster Trim Panel
    G02099549Courtesy of GENERAL MOTORS CORP.
  3. Remove the screws from the outside edges of the IP cluster trim panel (1).
  4. Disconnect the Driver Information Center (DIC) electrical connectors.
  5. Remove the IP cluster trim panel (1).

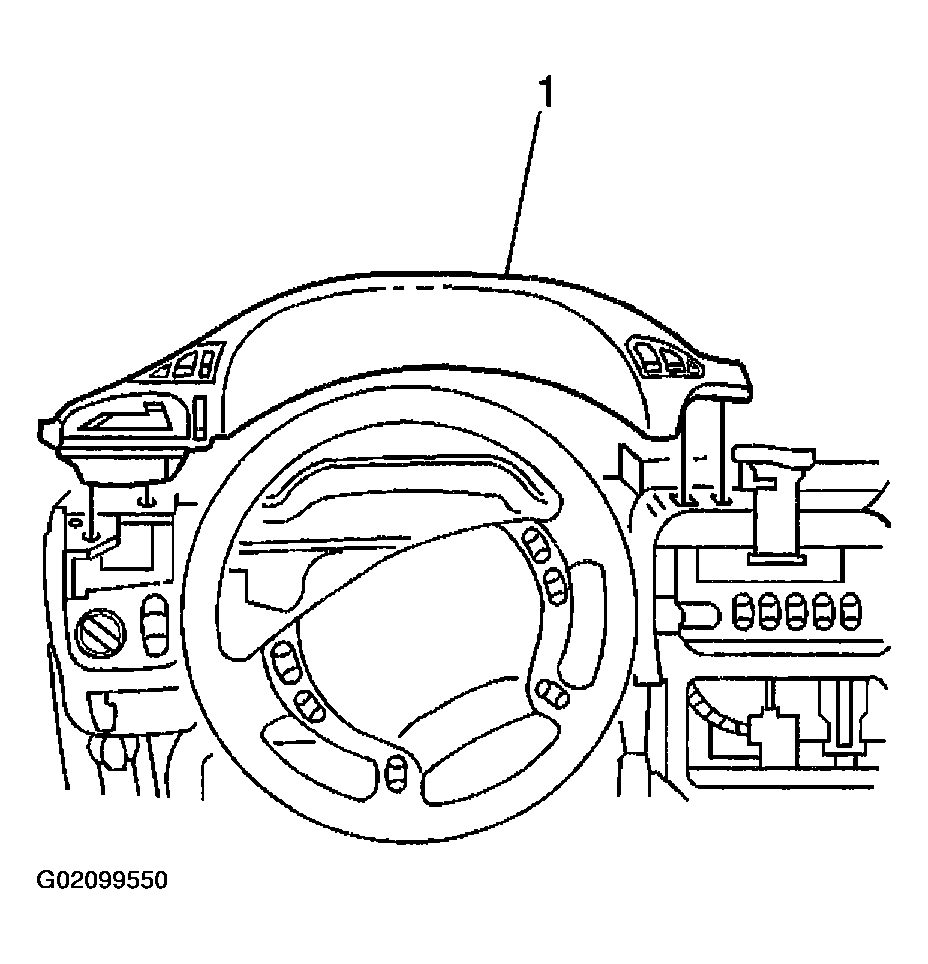

    Fig 2: Removing IP Cluster Trim Panel
    G02099550Courtesy of GENERAL MOTORS CORP.
