Installation Procedure

  1. Engage the lower edge of the IP cluster trim plate (1) to the IP.
  2. Connect the electrical connectors to the DIC switches.
    NOTE: Refer to FASTENER NOTICE
  3. Install the IP cluster trim panel (1) screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

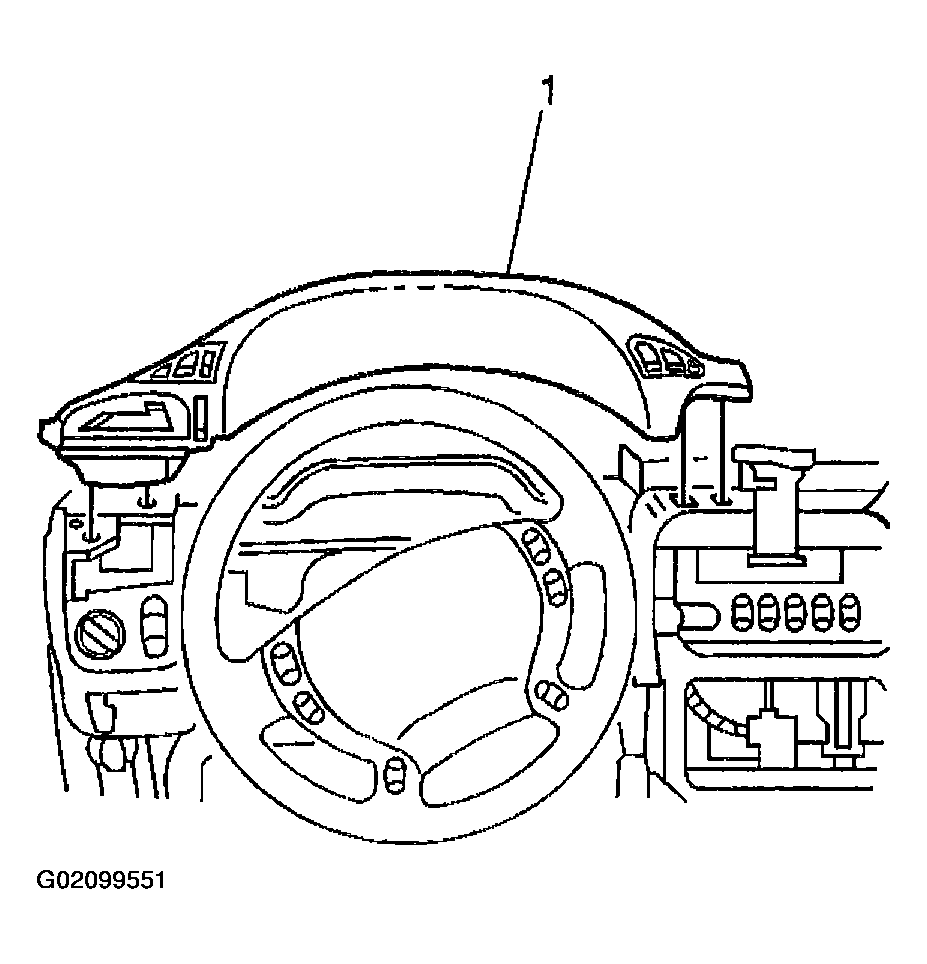

    Fig 1: Installing IP Cluster Trim Panel
    G02099551Courtesy of GENERAL MOTORS CORP.
  4. Install the screw securing the IP cluster bezel to the passenger trim panel.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  5. Install the Upper Trim Pad TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER

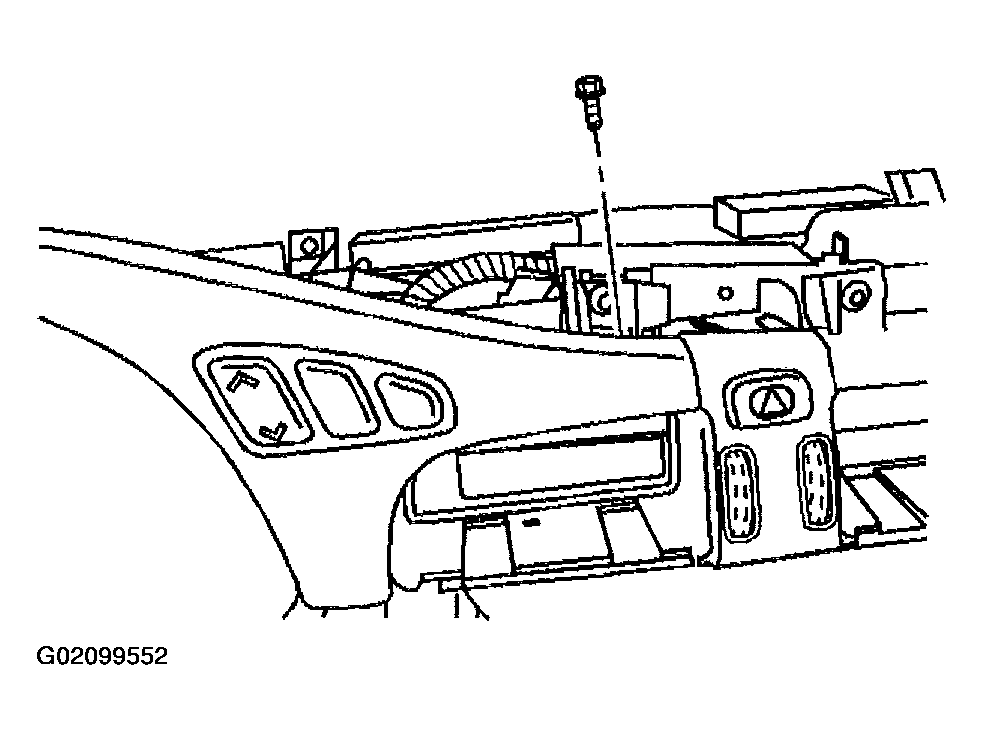

    Fig 2: Installing Screw Securing IP Cluster Bezel
    G02099552Courtesy of GENERAL MOTORS CORP.
