Removal Procedure

  1. Remove the defroster grille. Refer to DEFROSTER GRILLE REPLACEMENT (WITHOUT UV2)  or DEFROSTER GRILLE REPLACEMENT (UV2)
  2. Remove the sunload sensor (1) from defroster grill by twisting 1/4 turn.

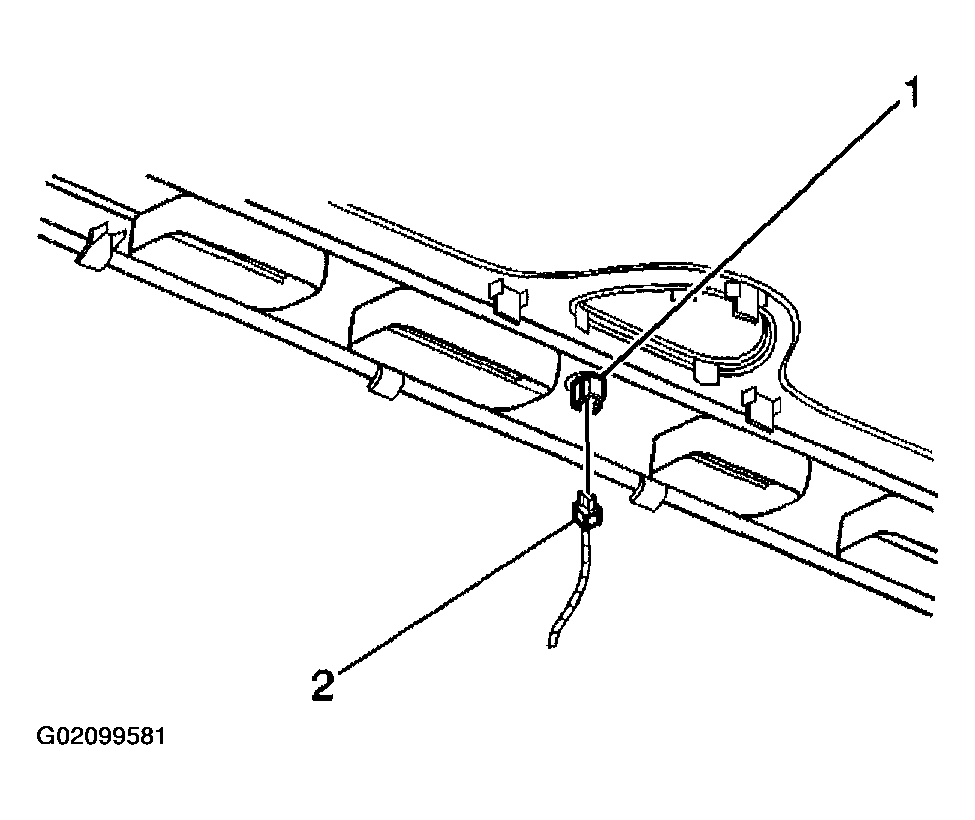

    Fig 1: Removing Sunload Sensor From Defroster Grill
    G02099581Courtesy of GENERAL MOTORS CORP.
