Installation Procedure

  1. Install the sunload sensor (1) to the defroster grille by twisting 1/4 turn.
  2. Install the defroster grille. Refer to DEFROSTER GRILLE REPLACEMENT (WITHOUT UV2)  or DEFROSTER GRILLE REPLACEMENT (UV2)

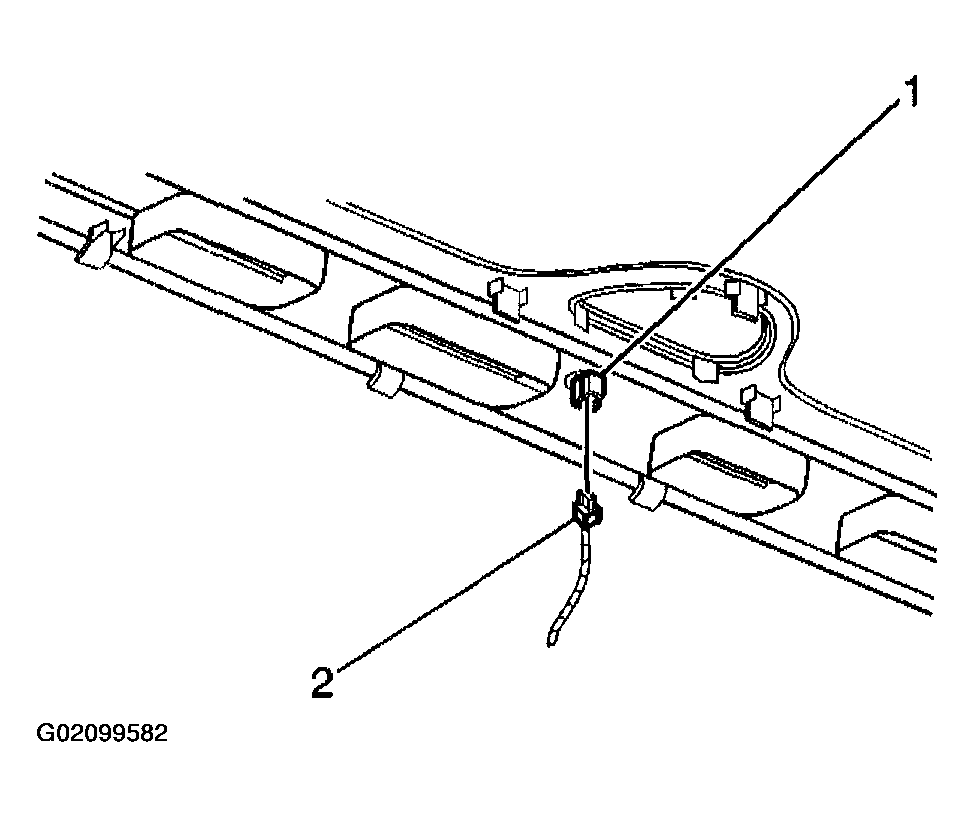

    Fig 1: Installing Sunload Sensor From Defroster Grill
    G02099582Courtesy of GENERAL MOTORS CORP.
