Removal Procedure

  1. Disconnect the night vision camera (1) electrical connectors (2).

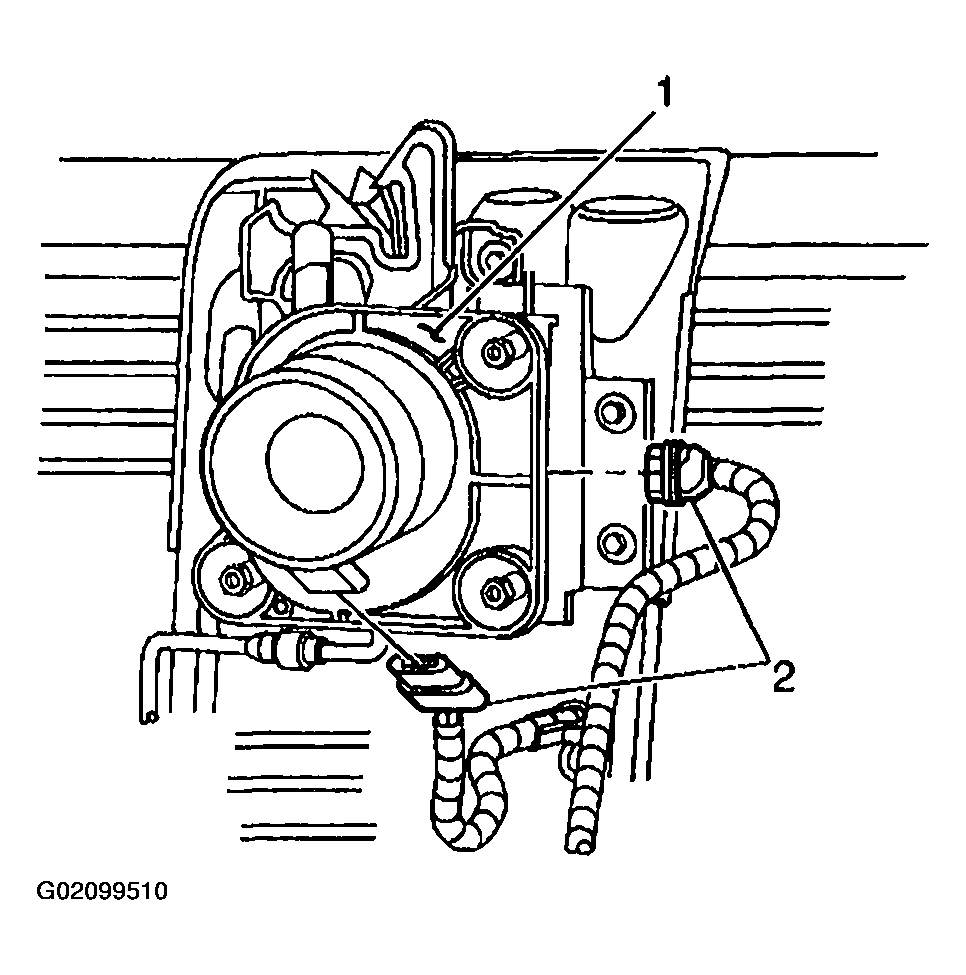

    Fig 1: Disconnecting Night Vision Camera Electrical Connectors
    G02099510Courtesy of GENERAL MOTORS CORP.
  2. Turn the three camera retainers (1) 90 degrees in order to remove the camera from the mounting bracket.
  3. Remove the night vision camera.

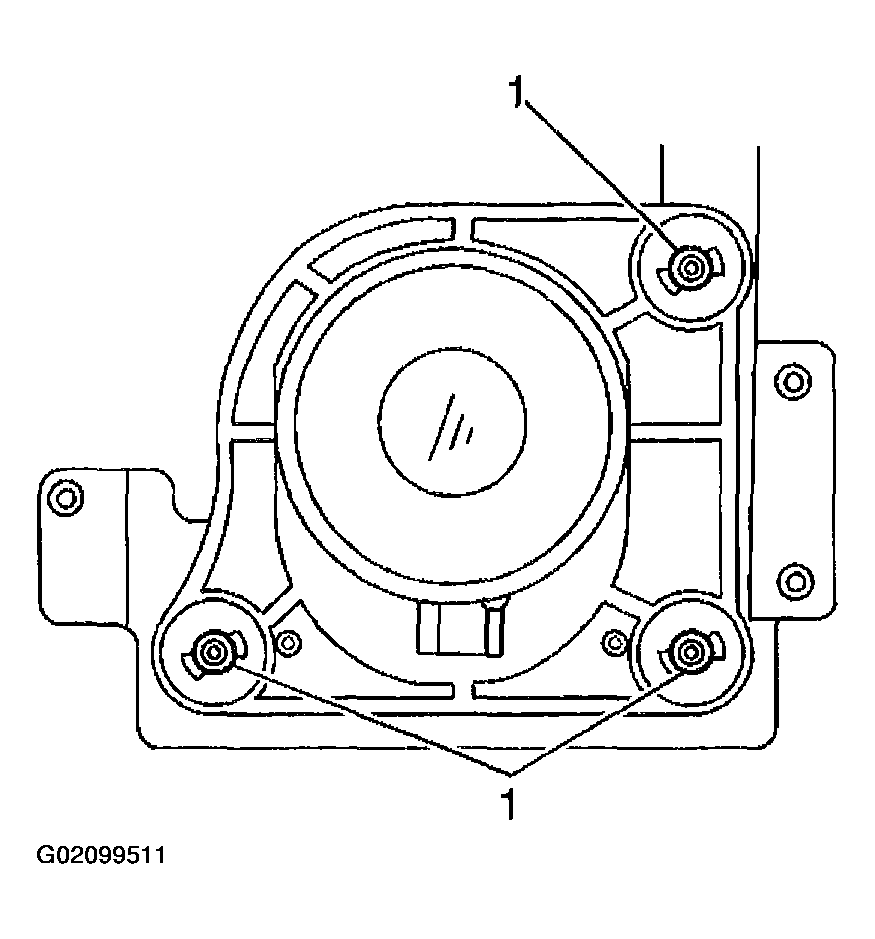

    Fig 2: Removing Night Vision Camera By Turning Three Camera Retainers
    G02099511Courtesy of GENERAL MOTORS CORP.
