Installation Procedure

Important:  Make sure the retainers are fully turned and in the locked position.

1. Install the night vision camera to the mounting bracket and turn the retainers (1) 90 degrees.

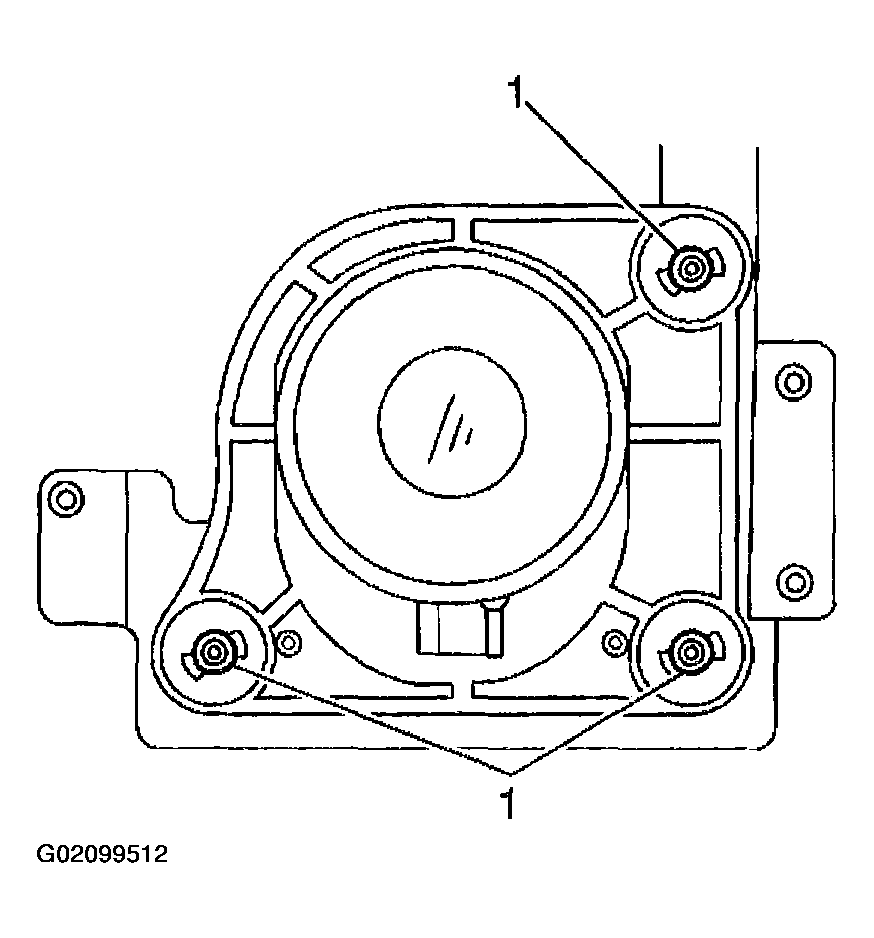

   Fig 1: Installing Night Vision Camera By Turning Three Camera Retainers

   Courtesy of GENERAL MOTORS CORP.
2. Connect the electrical connectors (2).
3. Perform aiming procedure for night vision camera (1). Refer to NIGHT VISION CAMERA AIMING  .

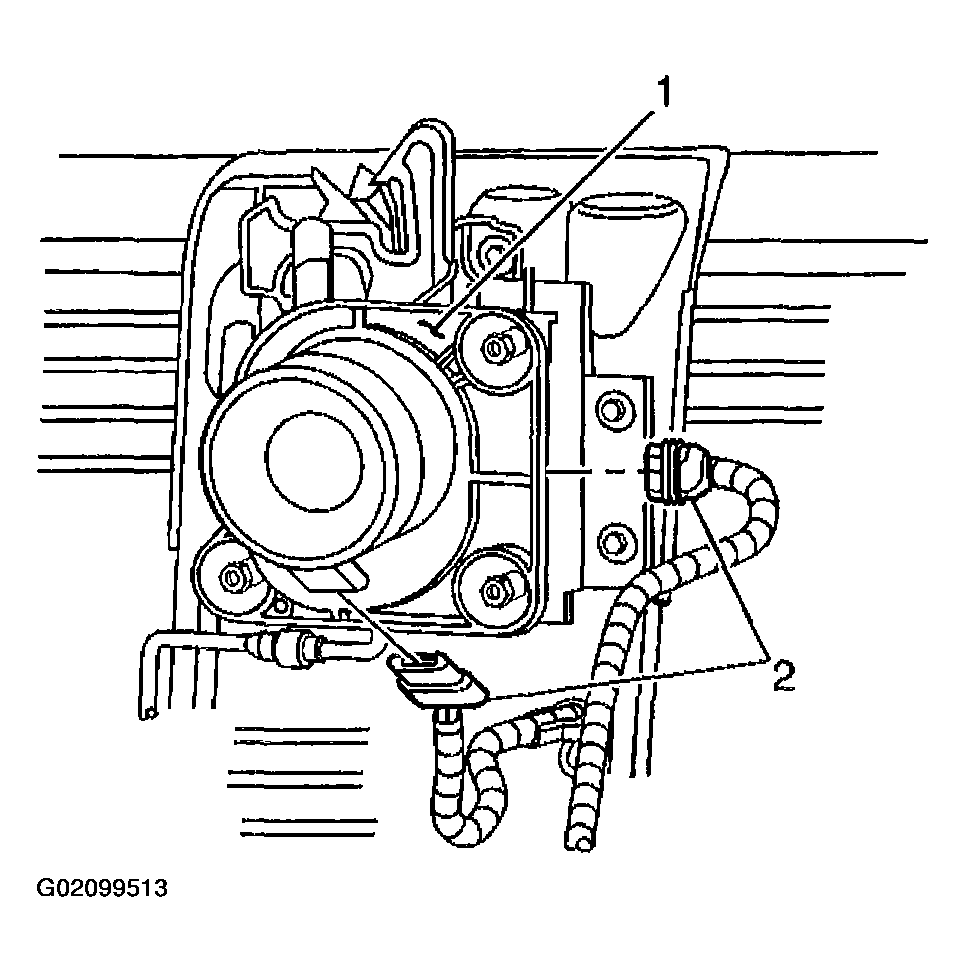

   Fig 2: Connecting Night Vision Camera Electrical Connectors

   Courtesy of GENERAL MOTORS CORP.
