Removal Procedure

Important:  The first design night vision camera is not serviceable and must be sent to an authorized service center for repair.

The second design night vision camera has a serviceable window. The second design camera can be recognized by the electrical connection near the window.

If the night vision camera is removed or adjusted for any reason, it must be aimed. Refer to NIGHT VISION CAMERA AIMING  .

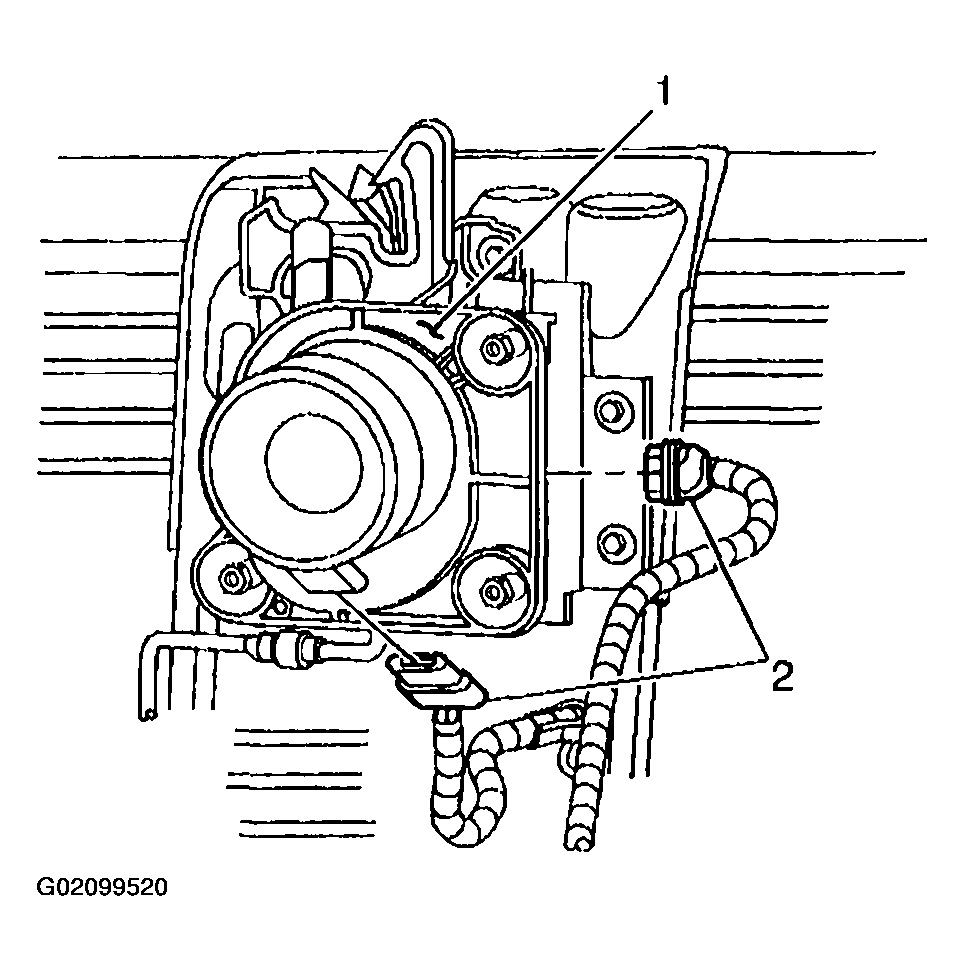

1. Disconnect the night vision camera (1) electrical connectors (2).
   Fig 1: Disconnecting Night Vision Camera Electrical Connectors

   Courtesy of GENERAL MOTORS CORP.

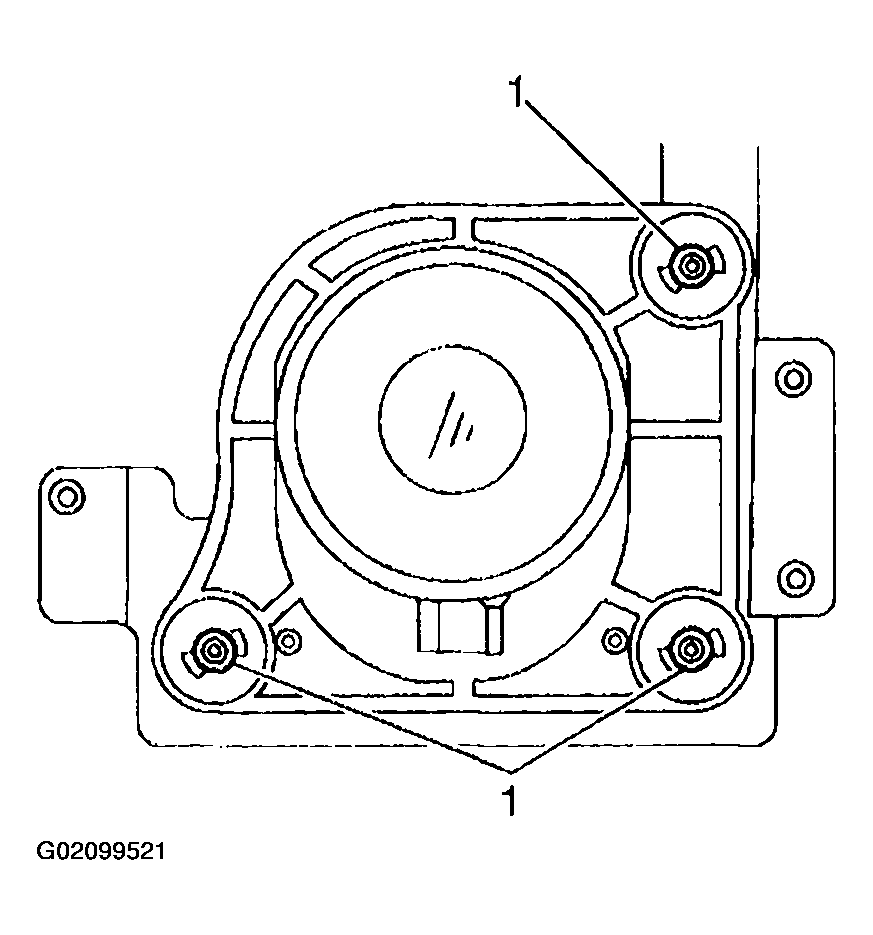

2. Turn the three camera retainers (1) 90 degrees in order to remove the camera from the mounting bracket.
3. Remove the night vision camera from the mounting bracket.
   Fig 2: Removing Night Vision Camera By Turning Three Camera Retainers

   Courtesy of GENERAL MOTORS CORP.
4. Remove the retainer (1) from the night vision camera window.
   Fig 3: Removing Retainer From Night Vision Camera Window

   Courtesy of GENERAL MOTORS CORP.

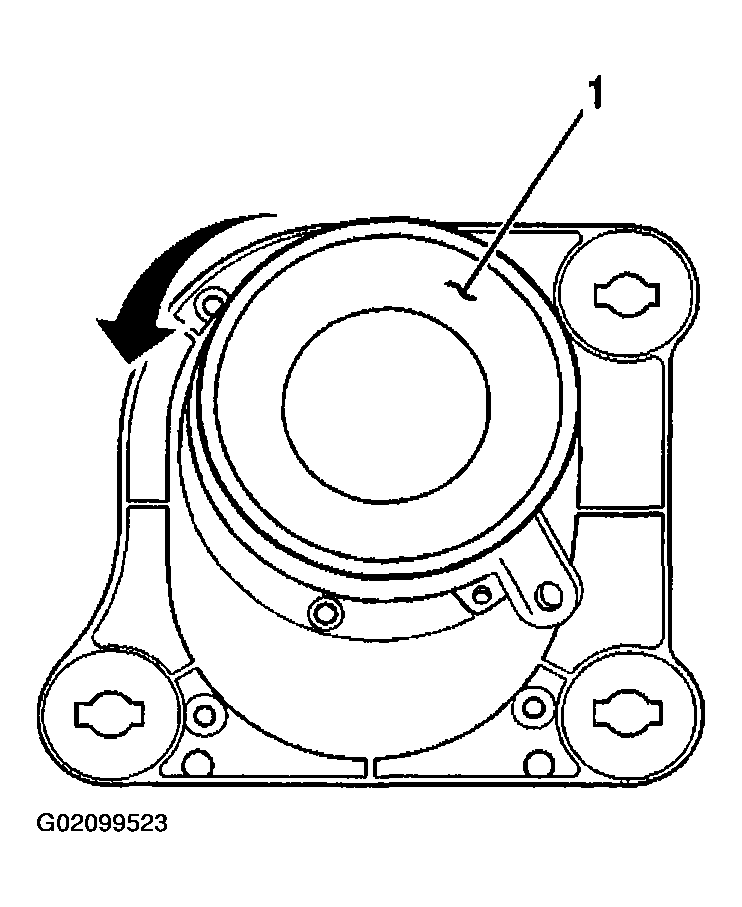

5. Rotate the window cap (1) counter clockwise, approximately 45 degrees.
   Fig 4: Rotating Window Cap Counter Clockwise

   Courtesy of GENERAL MOTORS CORP.

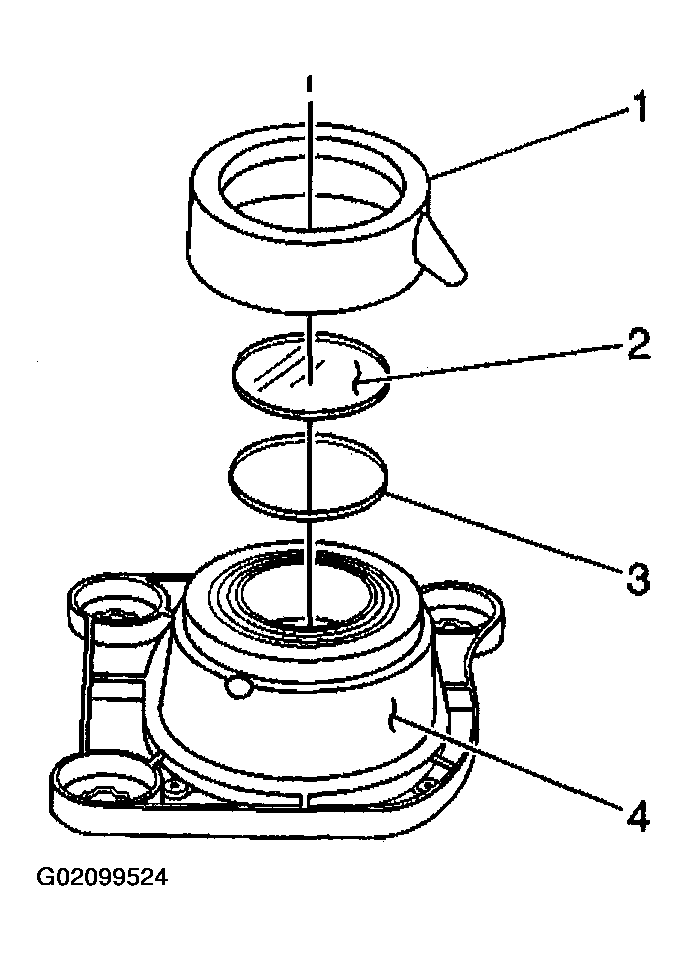

6. Remove the window cap (1) from the night vision camera (4).
7. Remove the window (2).
8. Remove the O-ring (3).
   Fig 5: Removing Window Cap, Window, And O-Ring From Night Vision Camera

   Courtesy of GENERAL MOTORS CORP.
