Installation Procedure
- When installing a new lock cylinder, code the lock cylinder to the vehicle key.

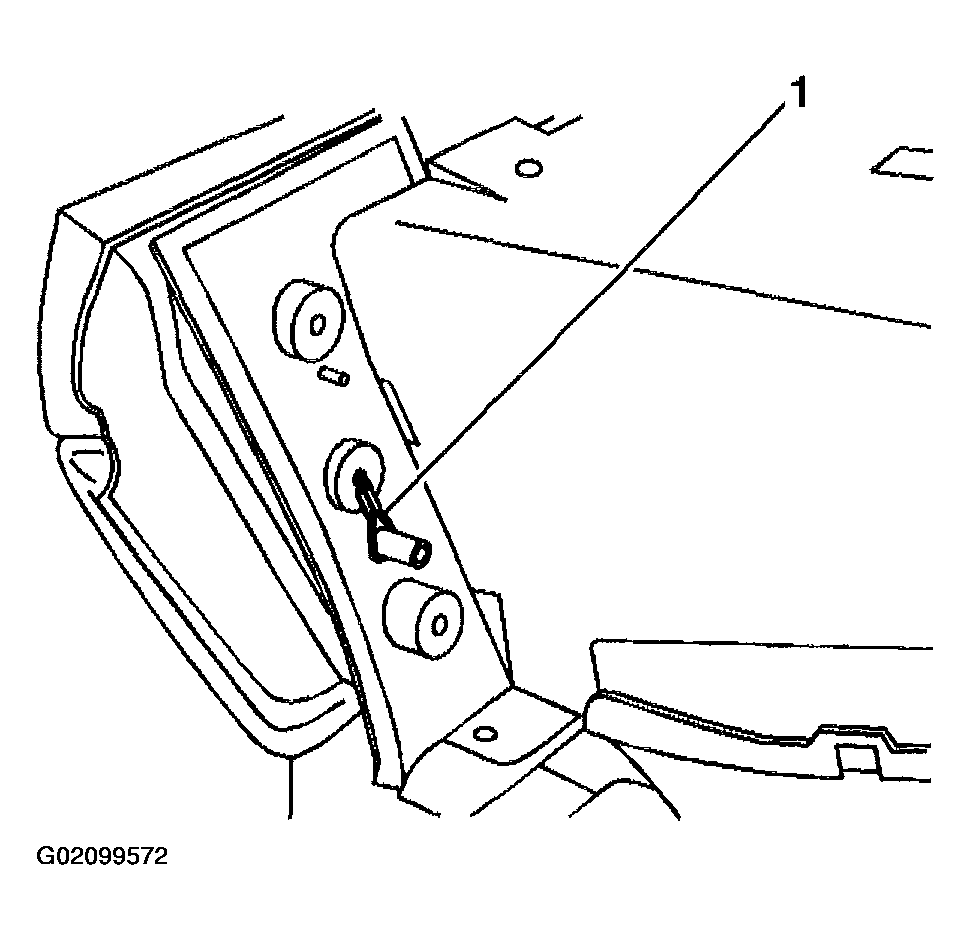

- Insert the key into the lock cylinder assembly (2).
- Insert the lock cylinder into the IP storage compartment door handle (1).
Align the lock cylinder to the same position used during removal.
- Push in on the lock cylinder (2) in order to fully seat the lock cylinder to the IP storage compartment latch handle (1).
- Turn the key 1/4 turn counterclockwise in order to secure the lock cylinder (2) to the IP storage compartment handle (1).
- Turn the key an additional 1/4 turn counterclockwise and remove the key from the lock cylinder.
Courtesy of GENERAL MOTORS CORP.
Important: The lock cylinder should only allow a 1/4 turn and should be securely retained in the door handle.
- Inspect the lock cylinder and IP storage compartment latch handle for proper operation.

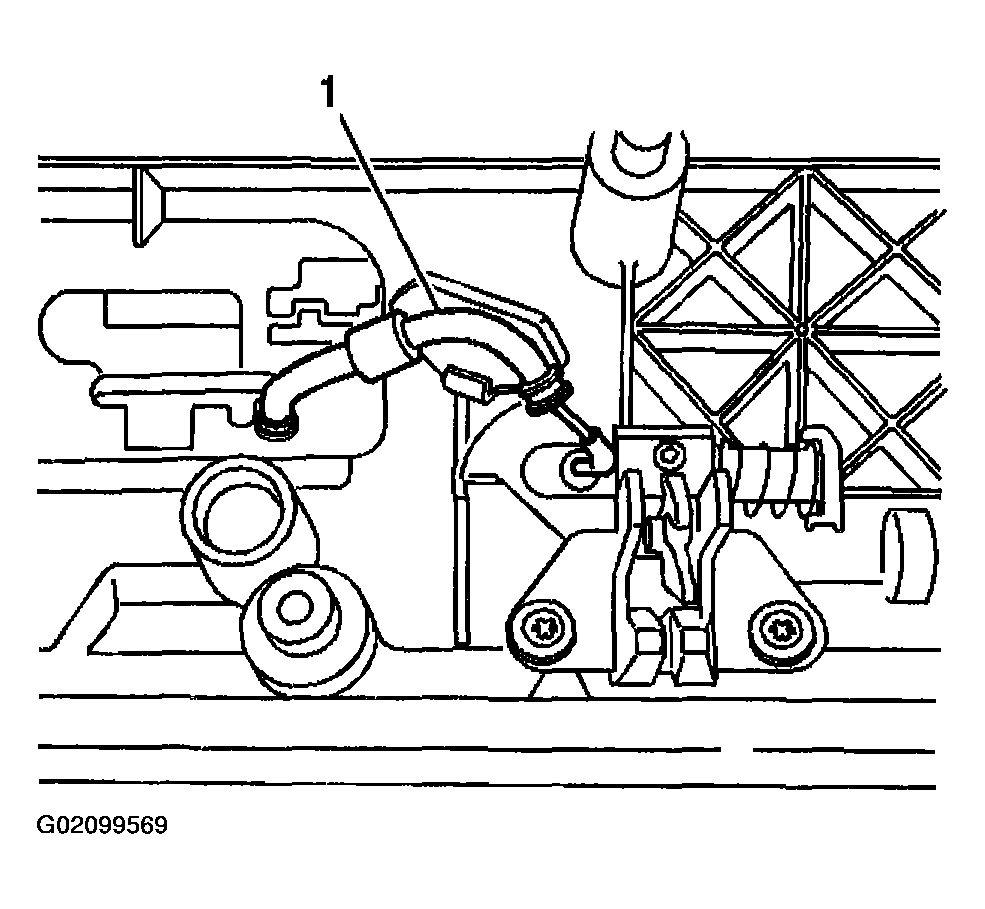

- Engage the latch actuator cable (1) to the IP storage compartment latch.

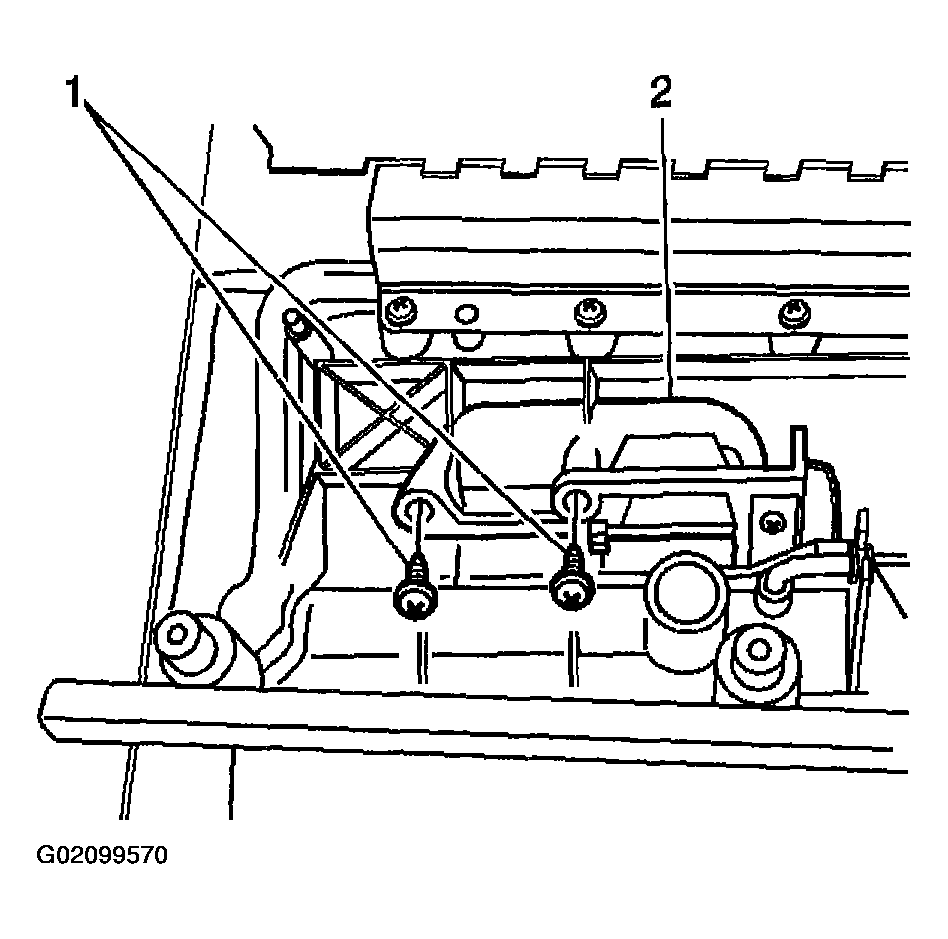

- Install the IP storage compartment door handle (2) to the IP storage compartment door.NOTE: Refer to FASTENER NOTICE
- Install the IP storage compartment latch screws (1)
Tighten
Tighten the screws (1) fully driven, seated, but not stripped.

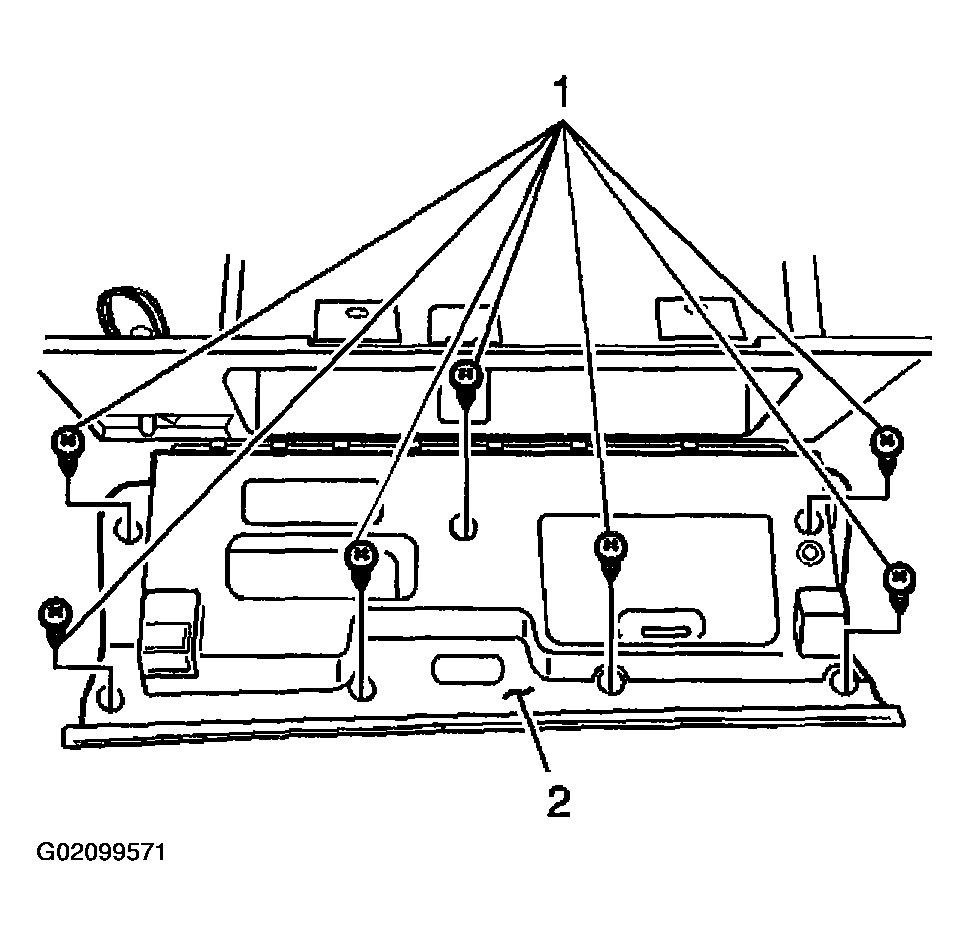

- Install the IP storage compartment door trim panel (2).
- Install the screws (1) to the IP storage compartment door trim plate (2).
Tighten
Tighten the screws (1) fully driven, seated, but not stripped.
- Install the IP storage compartment door compensator (1) to the IP storage compartment alignment pin.
- Install the IP storage compartment. Refer to STORAGE COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) .
- Inspect the IP storage compartment/latch for proper operation.
