Removal Procedure

  1. Open the console compartment upper lid.
  2. Remove the 4 screws (1) that retain the armrest inner trim panel (2).
  3. Remove the armrest inner trim panel (2).
  4. Remove the 2 screws holding the console armrest latch to the console armrest.
  5. Remove the console armrest latch from the console armrest.

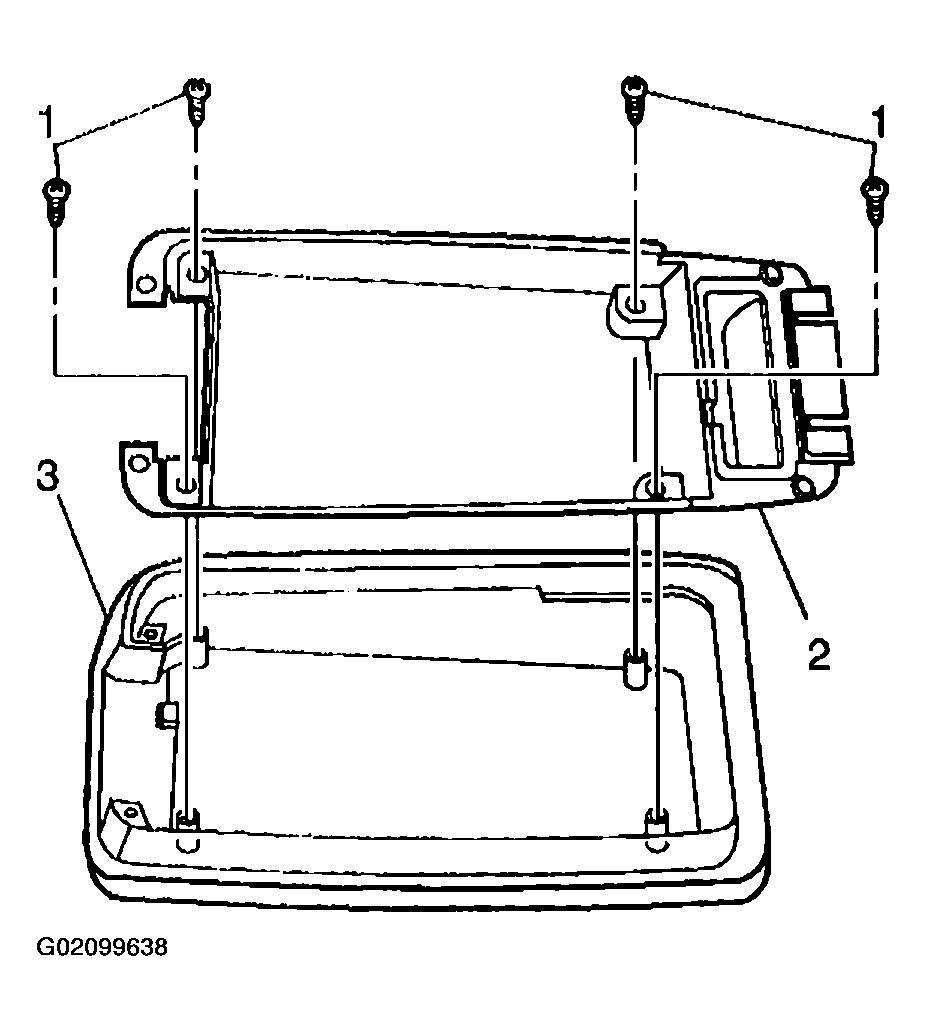

    Fig 1: Removing Armrest Inner Trim Panel And Screws
    G02099638Courtesy of GENERAL MOTORS CORP.
