Installation Procedure

  1. Install the console armrest latch to the console armrest.
    NOTE: Refer to in Cautions and Notices.
  2. Install the screws that retain the console armrest latch to the console armrest.

    Tighten

    Tighten the screw that retains the front door trim plate to 2 N.m (18 lb in)

  3. Install the armrest inner trim panel (2).
  4. Install the armrest inner trim panel screws (1).

    Tighten

    Tighten the screw that retains the front door trim plate to 2 N.m (18 lb in)

  5. Check for proper operation of the console armrest latch, adjust the console lid latch if necessary.

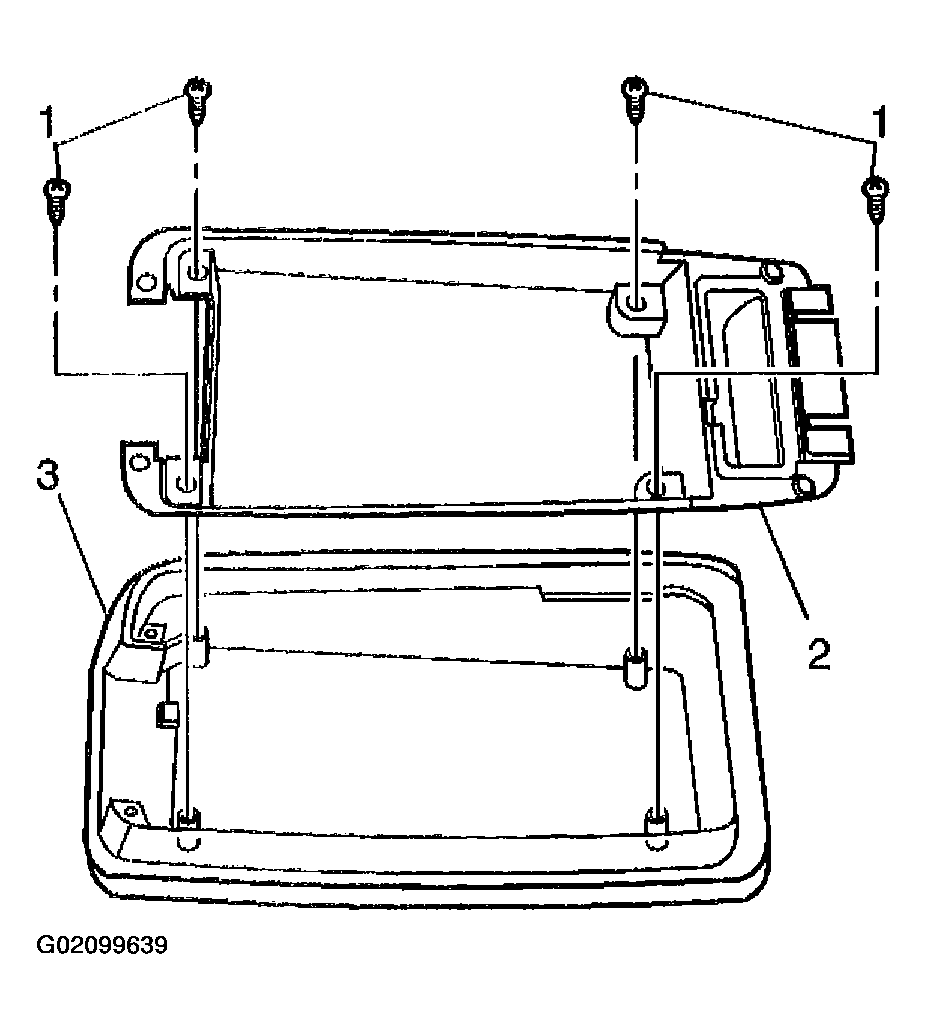

    Fig 1: Installing Armrest Inner Trim Panel And Screws
    G02099639Courtesy of GENERAL MOTORS CORP.
