Removal Procedure

  1. Open the console compartment lid in order to access the console storage compartment.
  2. Remove the 4 screws (1), from the bottom of the console tray (2), if equipped with UV8

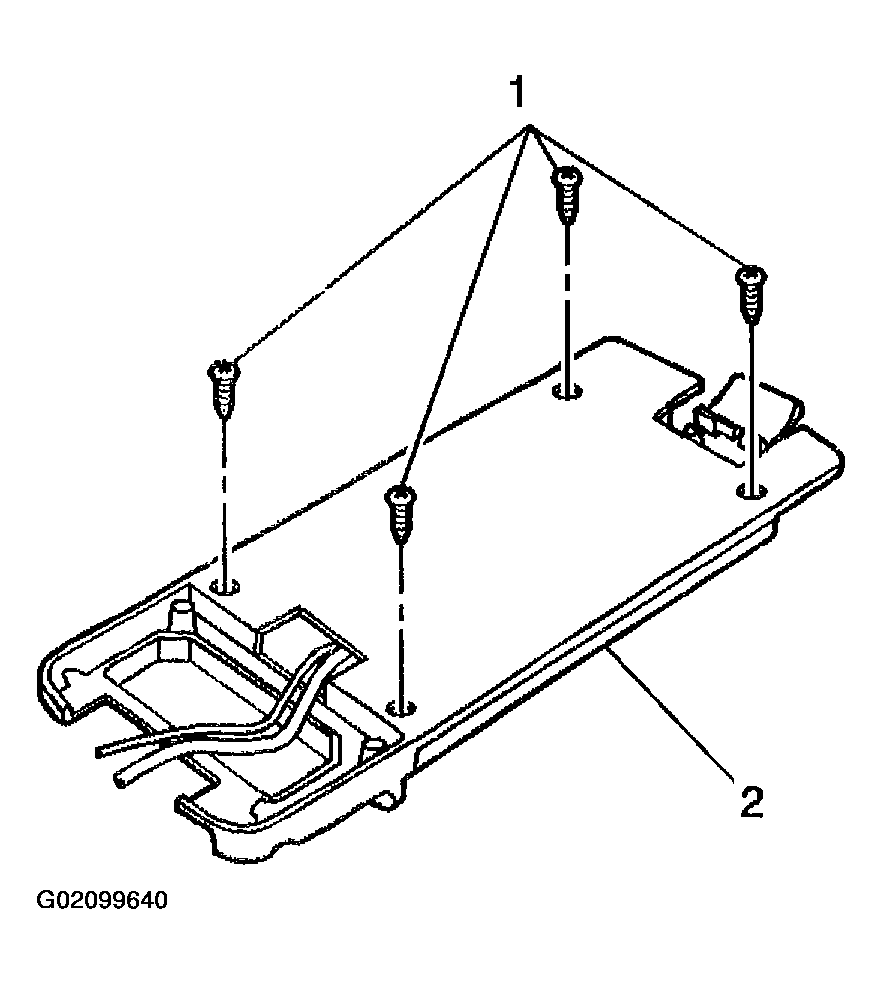

    Fig 1: Removing Screws From Bottom Of Console Tray
    G02099640Courtesy of GENERAL MOTORS CORP.
  3. Remove the console tray insert (1) from the console tray (2) in order to expose the console lid latch screws.
  4. Remove the 2 screws holding the console lid latch to the console tray.
  5. Remove the console latch from the console tray.

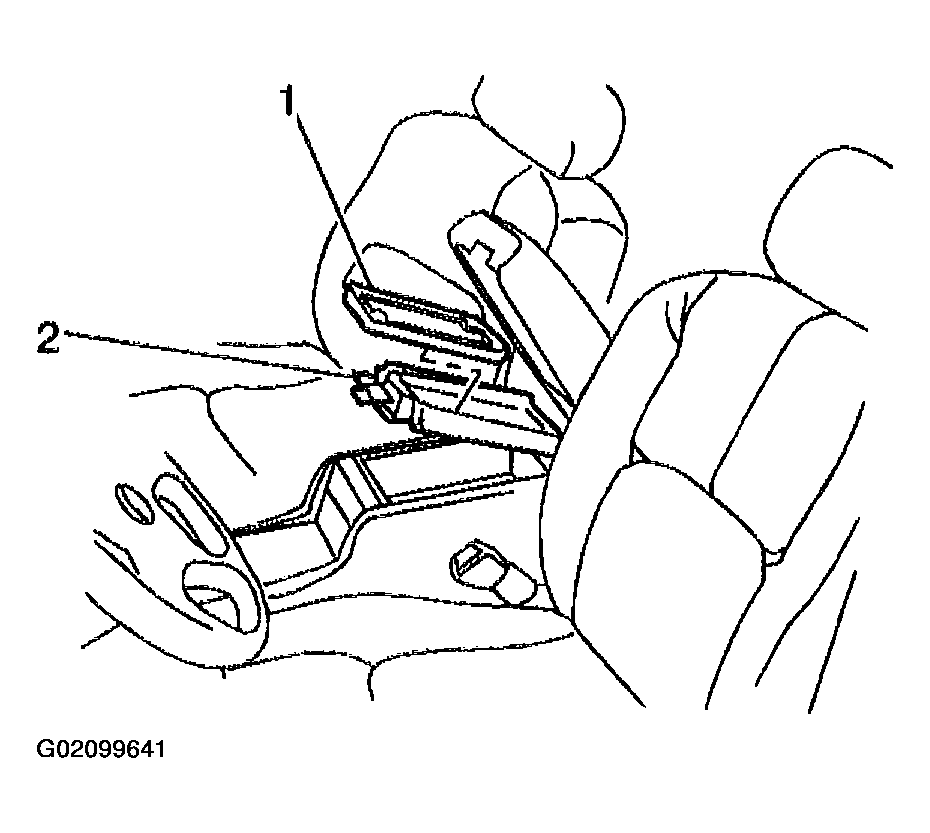

    Fig 2: Removing Console Tray Insert From Console Tray
    G02099641Courtesy of GENERAL MOTORS CORP.
