Removal Procedure

Important:  The knee bolster trim panel must be replaced, not repaired, if there is any visible damage.

  1. Remove the knee bolster trim panel (1) by grasping at the top and the bottom and by pulling rearward.
  2. Remove the knee bolster from the vehicle.

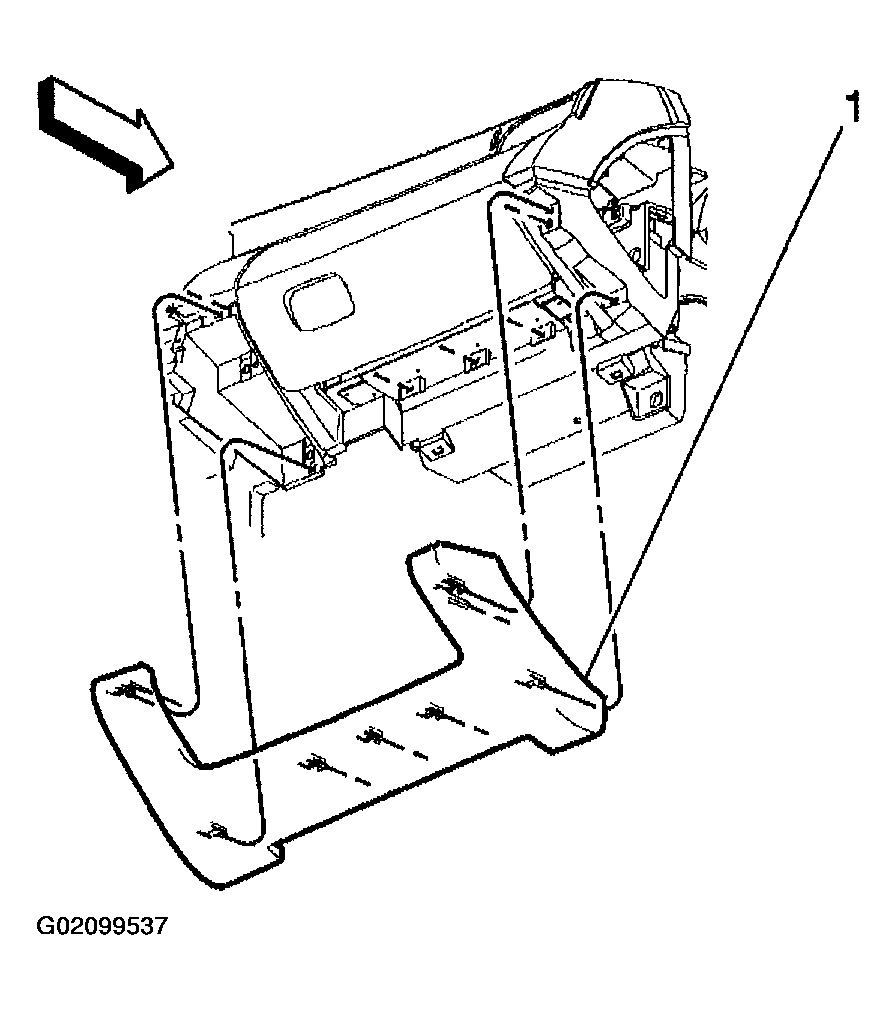

    Fig 1: Removing Knee Bolster Trim Panel
    G02099537Courtesy of GENERAL MOTORS CORP.
