Installation Procedure

  1. Align the knee bolster trim (1) guide pins to the IP.
  2. Push forward firmly in order to engage the clips to the IP retainer.

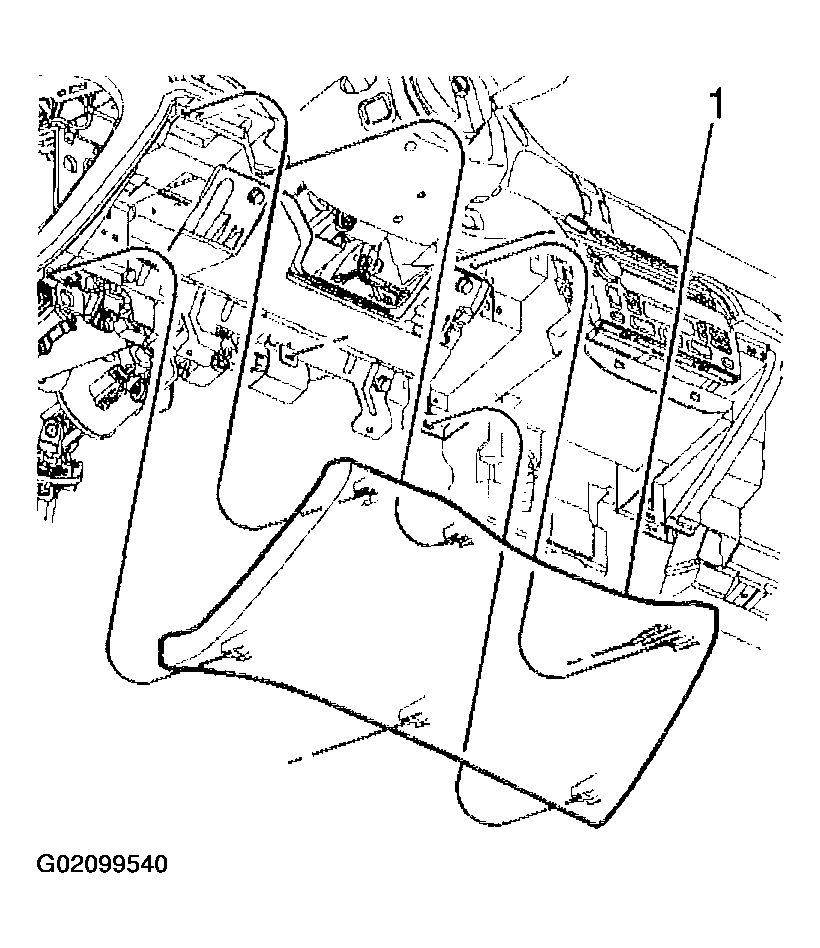

    Fig 1: Installing Knee Bolster Trim
    G02099540Courtesy of GENERAL MOTORS CORP.
