Installation Procedure

  1. Align the knee bolster bracket (2) to lower the IP.
    NOTE: Refer to FASTENER NOTICE
  2. Install the 4 fasteners (1).

    Tighten

    Tighten the fasteners to 9 N.m (80 lb in).

  3. Install the knee bolster trim panel. Refer to KNEE BOLSTER REPLACEMENT - LEFT (WITHOUT UV2)  or KNEE BOLSTER REPLACEMENT - LEFT (UV2)  .
  4. Install the left sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT  .

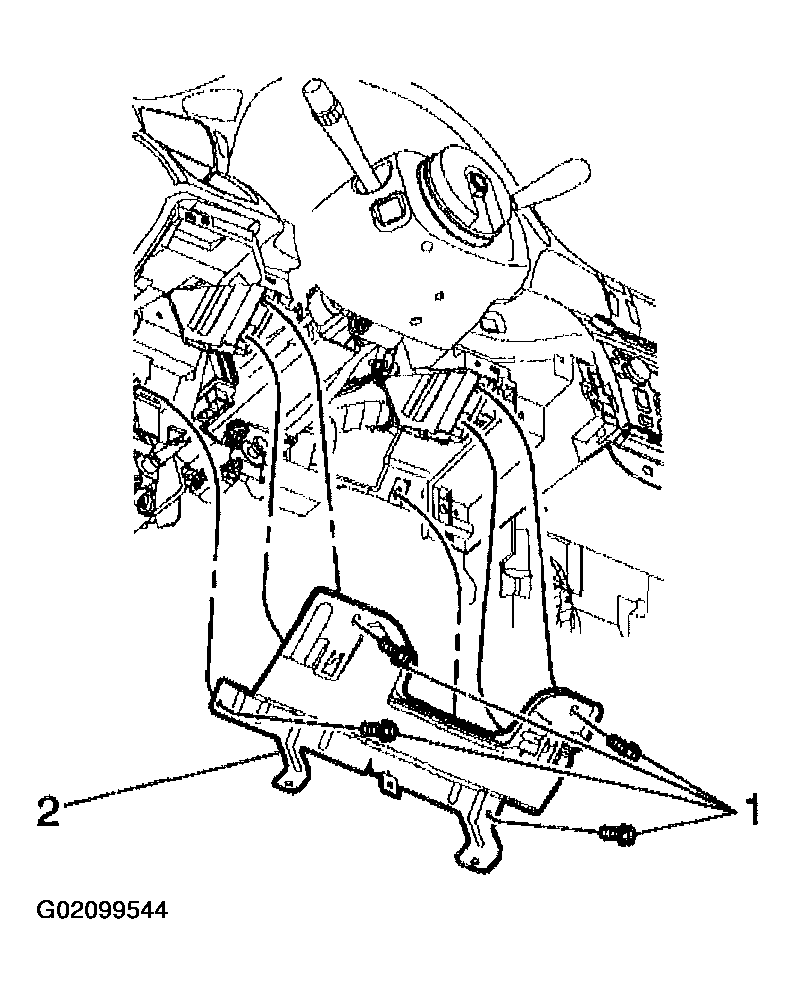

    Fig 1: Installing Knee Bolster Bracket
    G02099544Courtesy of GENERAL MOTORS CORP.
