Removal Procedure

CAUTION: Refer to SIR CAUTION
  1. Remove the IP upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER  .
  2. Remove the instrument cluster trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .
  3. Remove the 4 fasteners (1) retaining the IP cluster to the IP.
  4. Disconnect the electrical connectors (2) on each side of the IP cluster.
  5. Remove the IP cluster (3) from the IP.

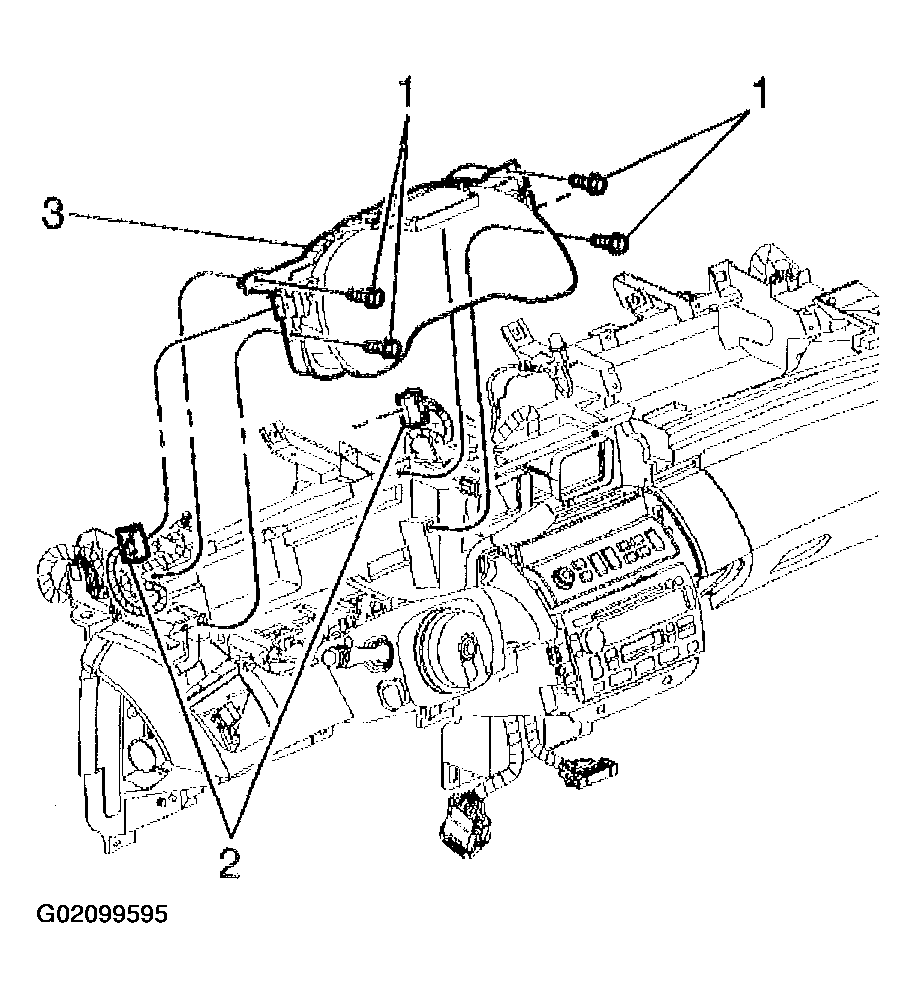

    Fig 1: Removing Instrument Panel Cluster
    G02099595Courtesy of GENERAL MOTORS CORP.
