Installation Procedure

  1. Install the IP cluster (3) to the IP.
  2. Connect the electrical connectors (2).
    NOTE: Refer to FASTENER NOTICE
  3. Install the 4 fasteners (1).

    Tighten

    Tighten the cluster fasteners to 1.5 N.m (14 lb in).

  4. Install the IP cluster trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .
  5. Install the IP upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER  .

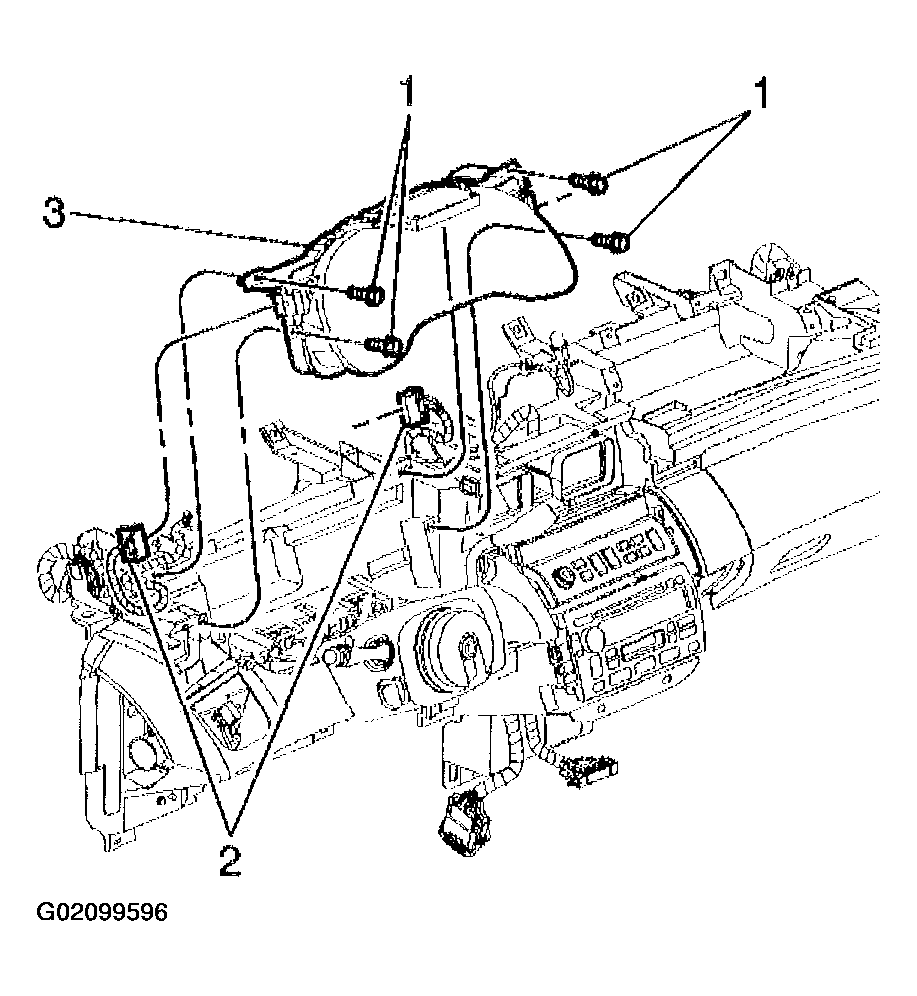

    Fig 1: Installing Instrument Panel Cluster
    G02099596Courtesy of GENERAL MOTORS CORP.
