Installation Procedure
- Install the Inside air temperature sensor to the I/P retainer (1). Refer to INSIDE AIR TEMPERATURE SENSOR ASSEMBLY REPLACEMENT

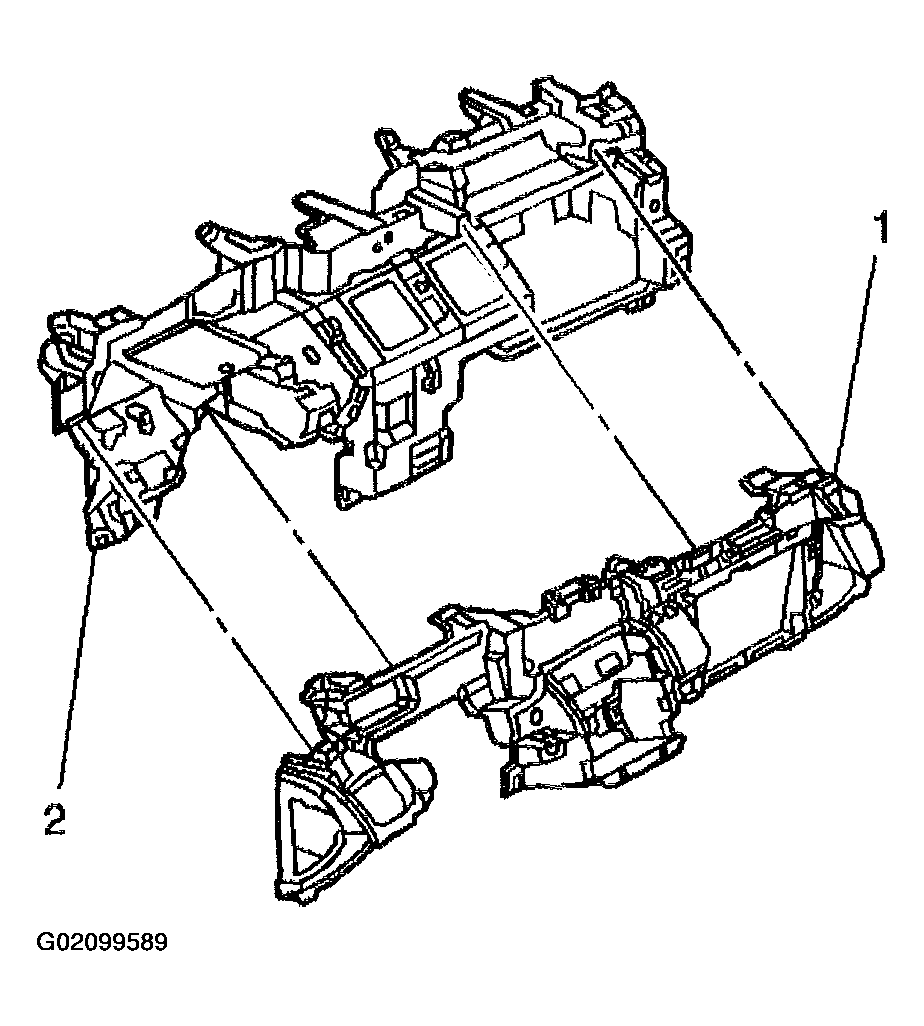

- Partially install the I/P retainer (1) to the I/P carrier (2) and guide the wiring through the I/P retainer openings.
- Connect the inside air temperature sensor electrical connector.
- Install the I/P retainer bolts.

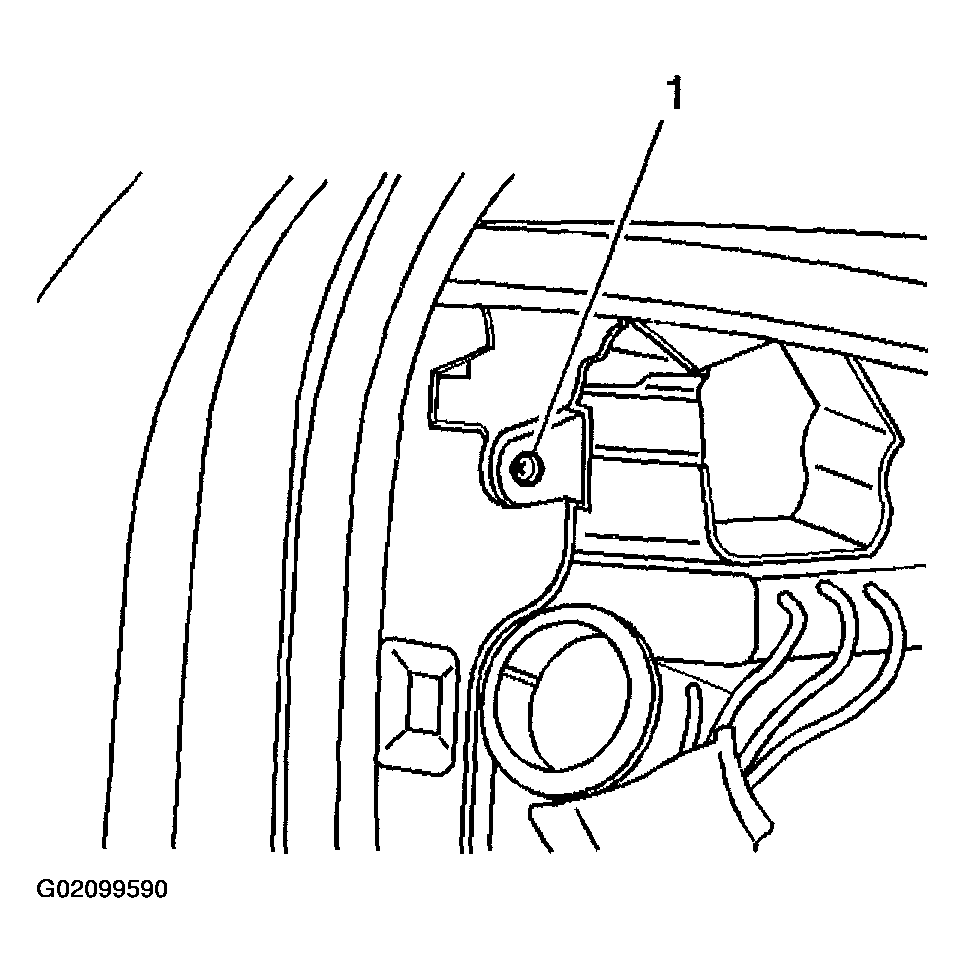

- Install the screws (1) to the I/P retainer.
- Install the headlamp switch. Refer to HEADLAMP SWITCH REPLACEMENT
- Install the drivers knee bolster bracket. Refer to KNEE BOLSTER BRACKET REPLACEMENT - LEFT .
- Install the radio. Refer to RADIO REPLACEMENT (U1R, UM5, UM9) or RADIO REPLACEMENT (U3Q, U3R, U3S)
- Install the HVAC control module. Refer to HVAC CONTROL MODULE REPLACEMENT
- Install the I/P cluster. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .
- Install the I/P storage compartment. Refer to STORAGE COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) .
- Install the right I/P accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY RIGHT .
- Install the left I/P outer trim cover. Refer to INSTRUMENT PANEL (I/P) OUTER TRIM COVER REPLACEMENT - LEFT .
- Install the right I/P outer trim cover. Refer to INSTRUMENT PANEL (I/P) OUTER TRIM COVER REPLACEMENT - RIGHT .
- Install the I/P center storage compartment or the floor console. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) (BASE AND DHS) or COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) (DTS) or CONSOLE REPLACEMENT - FRONT FLOOR (DTS, W/O UV8) or CONSOLE REPLACEMENT - FRONT FLOOR (DTS WITH UV8) .
- Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE
- Enable the SIR. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM
