Installation Procedure

  1. Align the tabs on the front edge of the right IP outer trim cover (1) to the slots in the IP.
  2. Push the IP outer trim cover (1) towards the IP in order to engage the IP outer trim cover retainer (2).

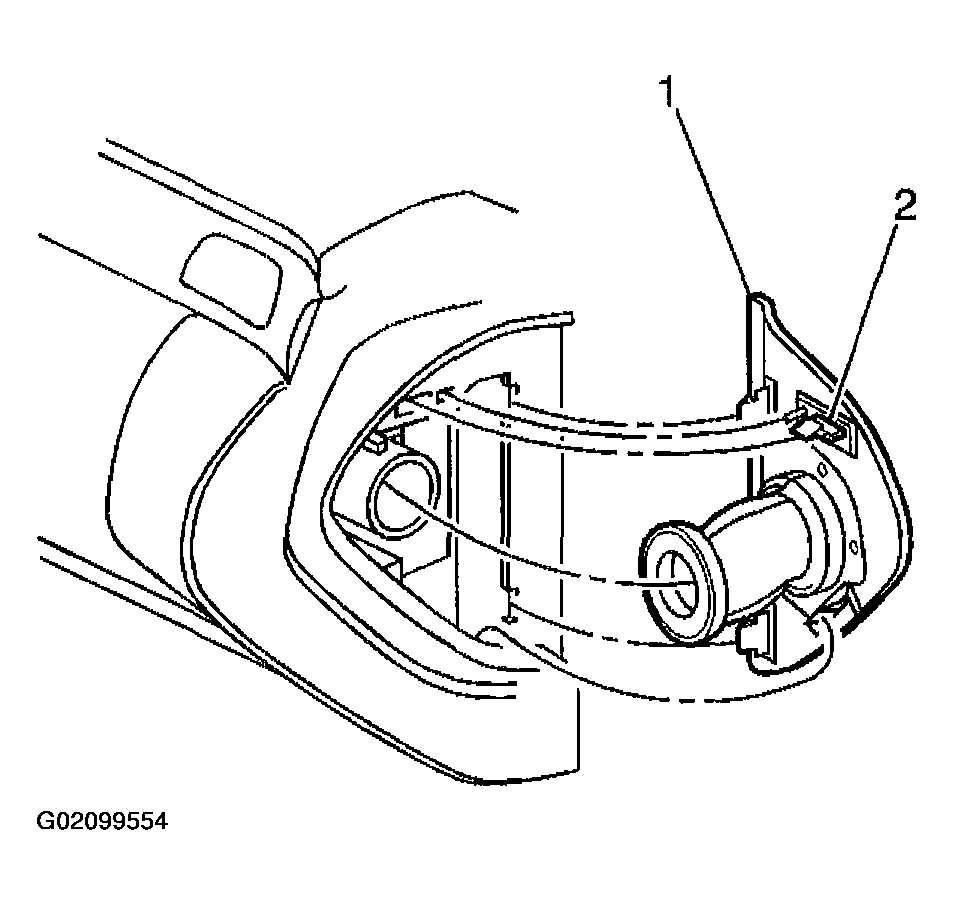

    Fig 1: Installing Instrument Panel Outer Trim Cover - Right
    G02099554Courtesy of GENERAL MOTORS CORP.
