Installation Procedure

  1. Align the tabs on the front edge of the left IP outer trim cover (1) to the slots in the IP.
  2. Push towards the IP in order to engage the IP outer trim cover (1) retainer (2).

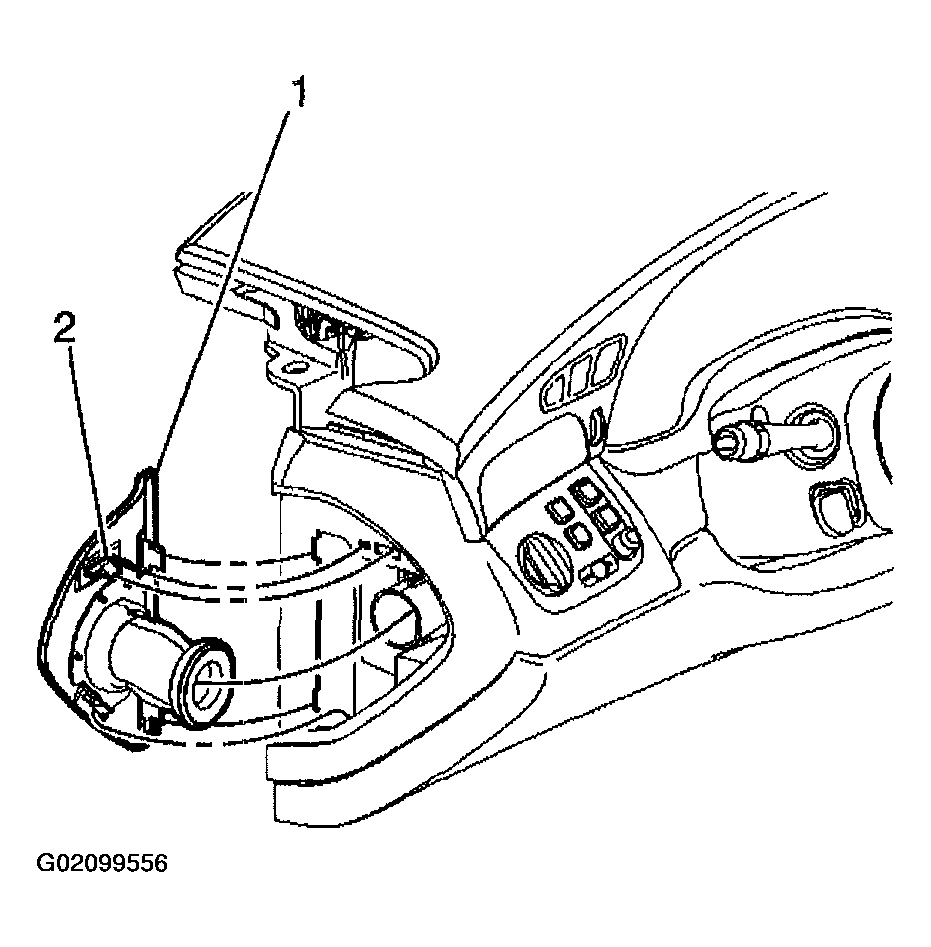

    Fig 1: Installing Instrument Panel Outer Trim Cover - Left
    G02099556Courtesy of GENERAL MOTORS CORP.
