Removal Procedure

  1. Remove the drivers side knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT (WITHOUT UV2)  or KNEE BOLSTER REPLACEMENT - LEFT (UV2)  .
  2. Disconnect the head up display switch (1) electrical connector (2).

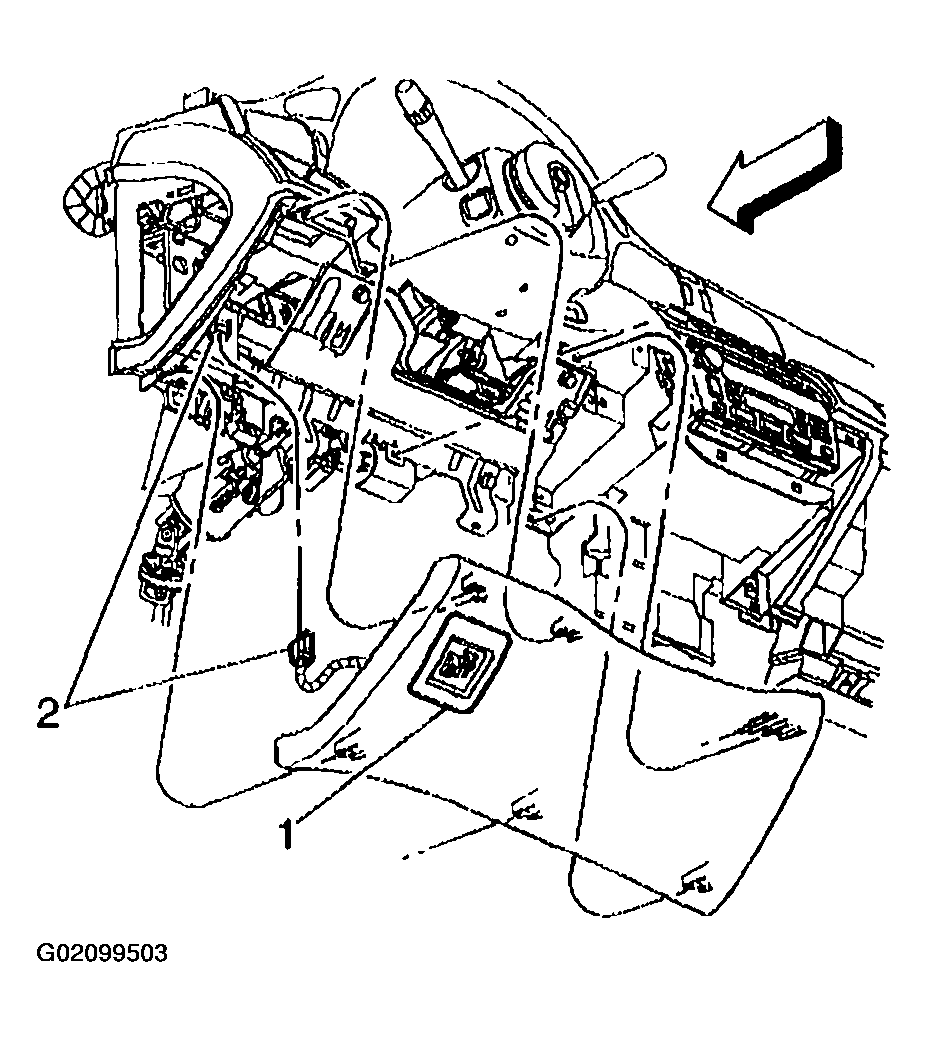

    Fig 1: Disconnecting Head Up Display Switch Electrical Connector
    G02099503Courtesy of GENERAL MOTORS CORP.
  3. Release the head up display switch retainers

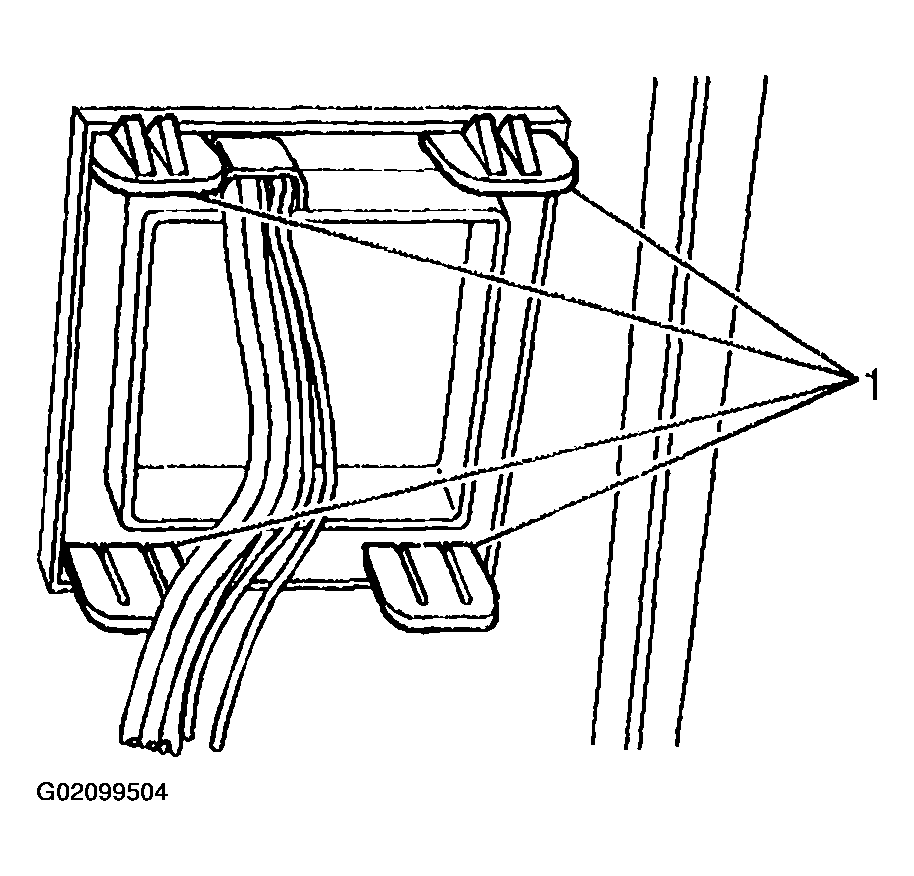

    Fig 2: Releasing Head Up Display Switch Retainers
    G02099504Courtesy of GENERAL MOTORS CORP.
  4. Remove the head up display switch.

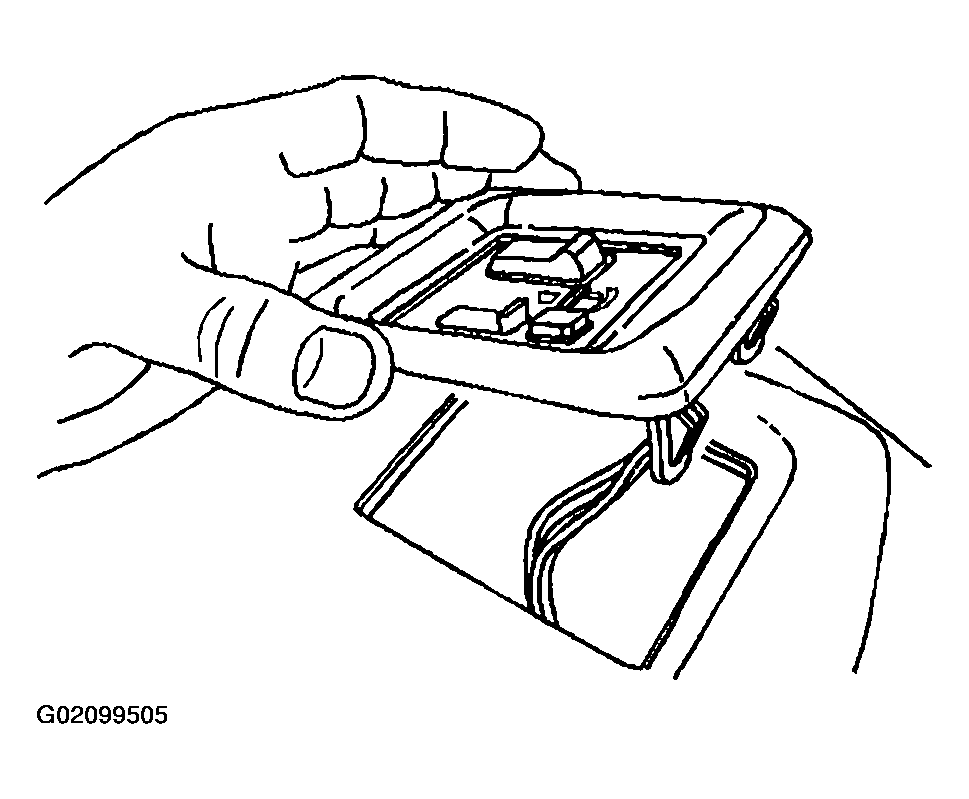

    Fig 3: Removing Head Up Display Switch
    G02099505Courtesy of GENERAL MOTORS CORP.
