Removal Procedure

CAUTION: Refer to SIR CAUTION
  1. Remove the instrument panel upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER
  2. Remove the fasteners (3) from the head up display module (HUD) (1).
  3. Disconnect the electrical connector (2) from the HUD module.
  4. Remove the HUD module (1) from the instrument panel.

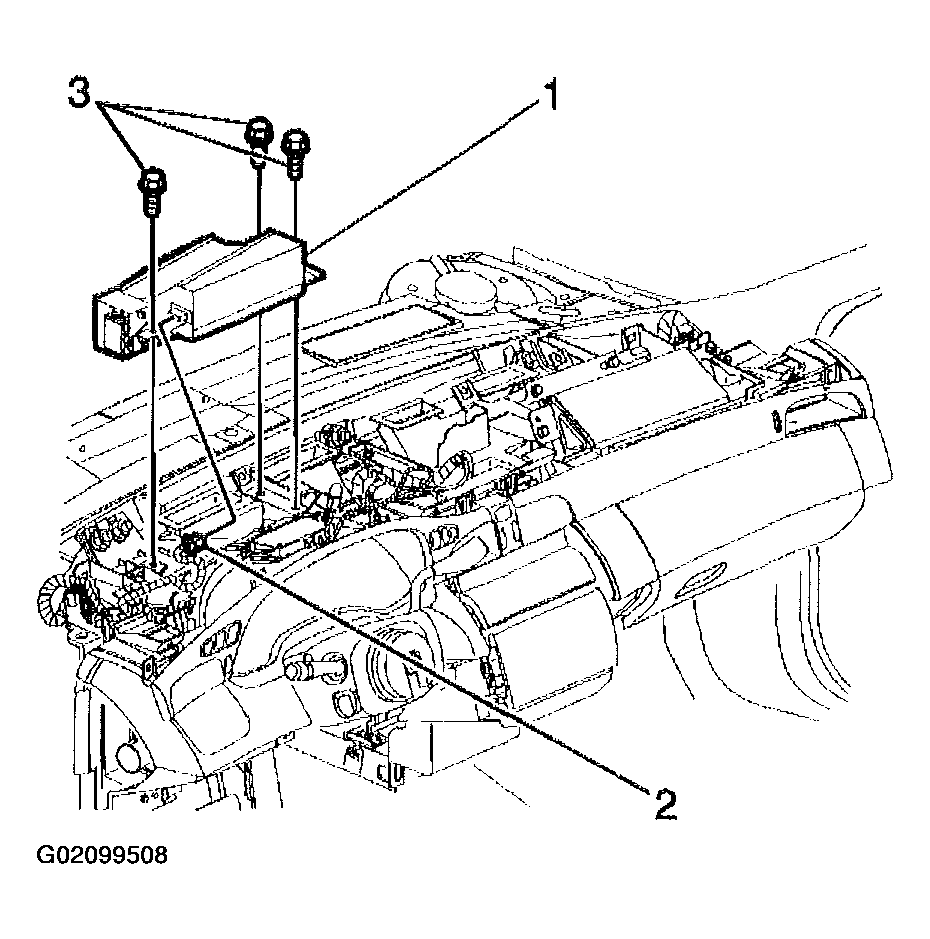

    Fig 1: Removing Head Up Display Module From Instrument Panel
    G02099508Courtesy of GENERAL MOTORS CORP.
