Installation Procedure

  1. Connect the electrical connector (2) to the head up display module (HUD) (1).
  2. Install the HUD module (1) to the instrument panel.
    NOTE: Refer to FASTENER NOTICE
  3. Install the fasteners (3) into the HUD module (1).

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

  4. Install the instrument panel upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER  .

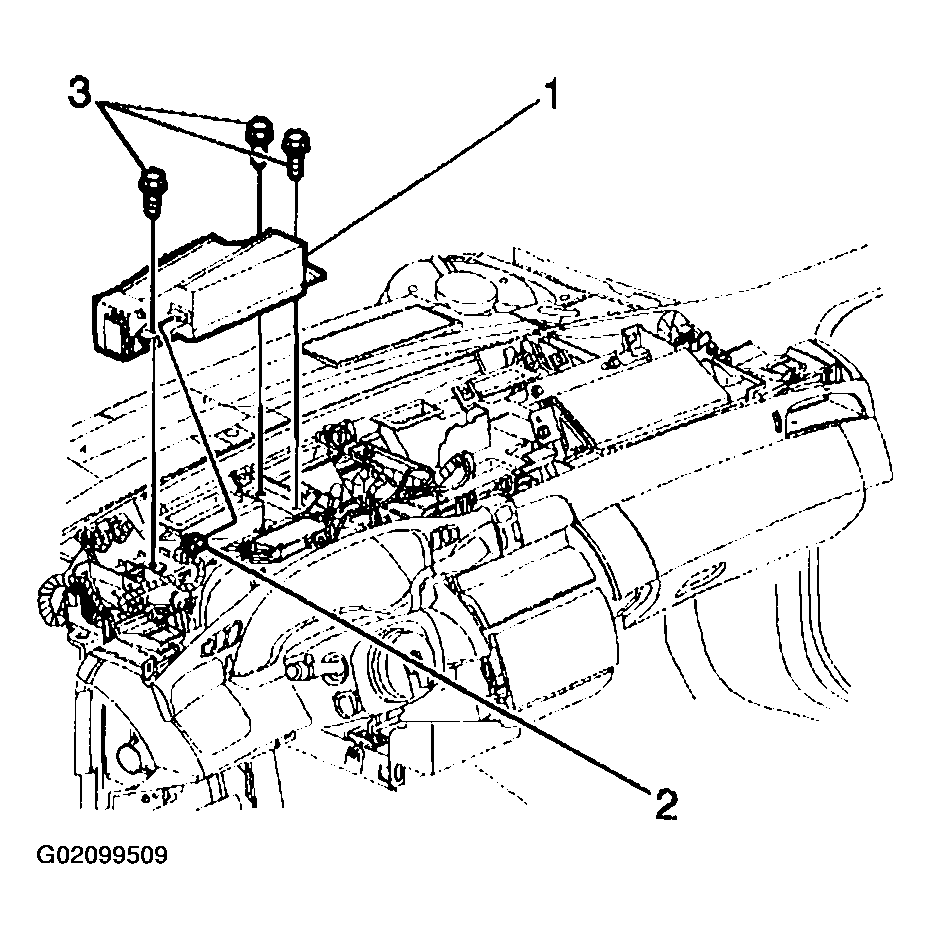

    Fig 1: Installing Head Up Display Module To Instrument Panel
    G02099509Courtesy of GENERAL MOTORS CORP.
