Removal Procedure

CAUTION: Refer to SIR CAUTION
  1. Remove the IP cluster trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .
  2. Remove the fasteners from the drivers information switch.

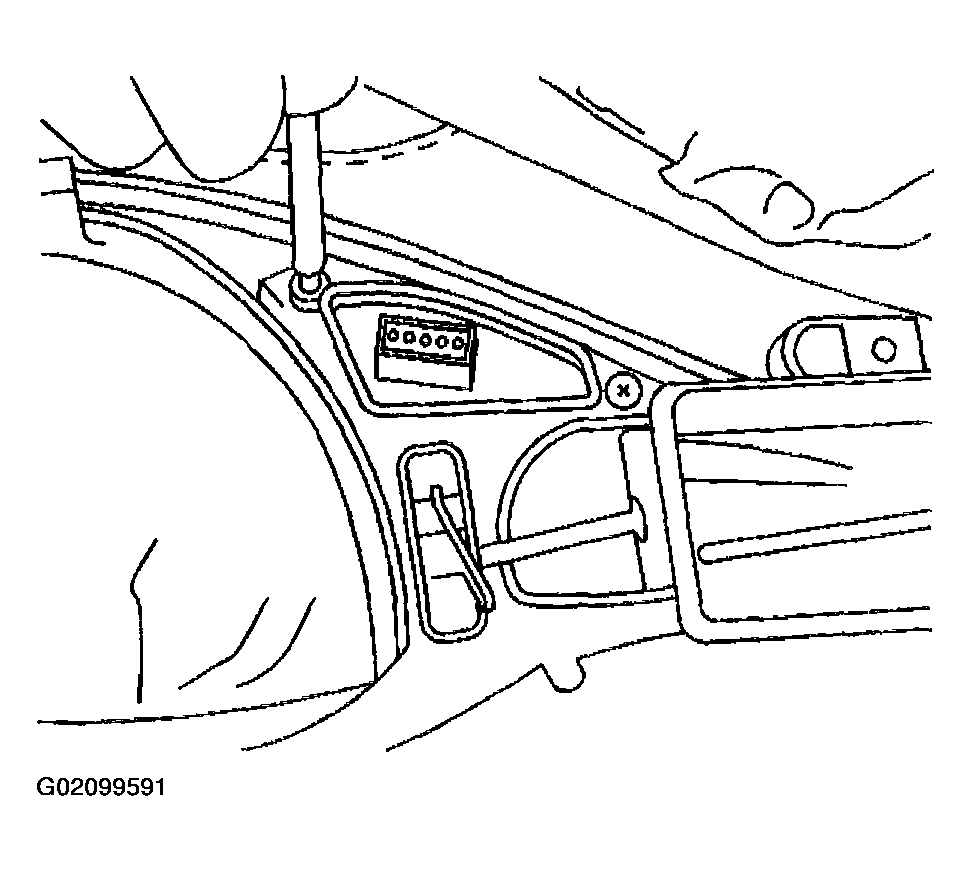

    Fig 1: Removing Fasteners From Drivers Information Switch
    G02099591Courtesy of GENERAL MOTORS CORP.
  3. Remove the drivers information switch from the IP cluster trim panel.

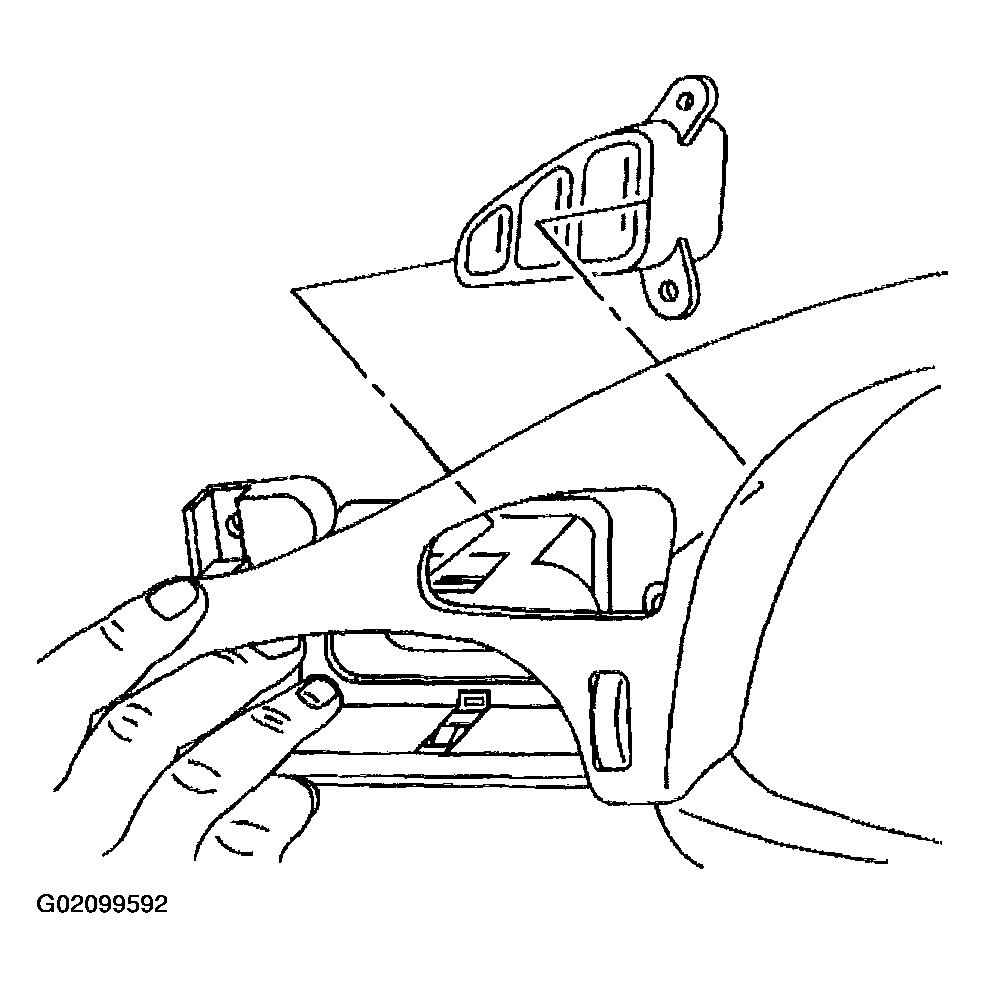

    Fig 2: Removing Drivers Information Switch From Instrument Panel Cluster Trim Panel
    G02099592Courtesy of GENERAL MOTORS CORP.
