Installation Procedure

  1. Install the drivers information switch to the IP cluster trim panel.

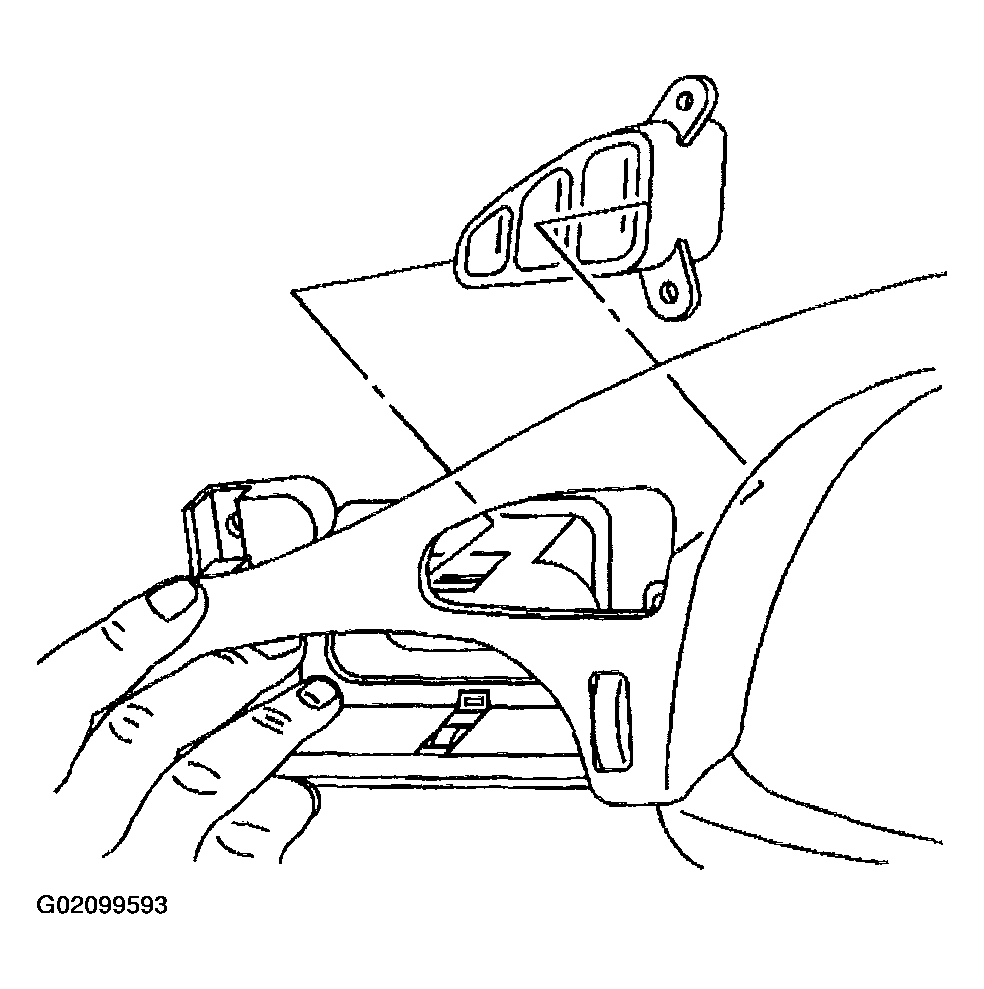

    Fig 1: Installing Drivers Information Switch From Instrument Panel Cluster Trim Panel
    G02099593Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE
  2. Install the fasteners.

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

  3. Install the IP cluster trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .

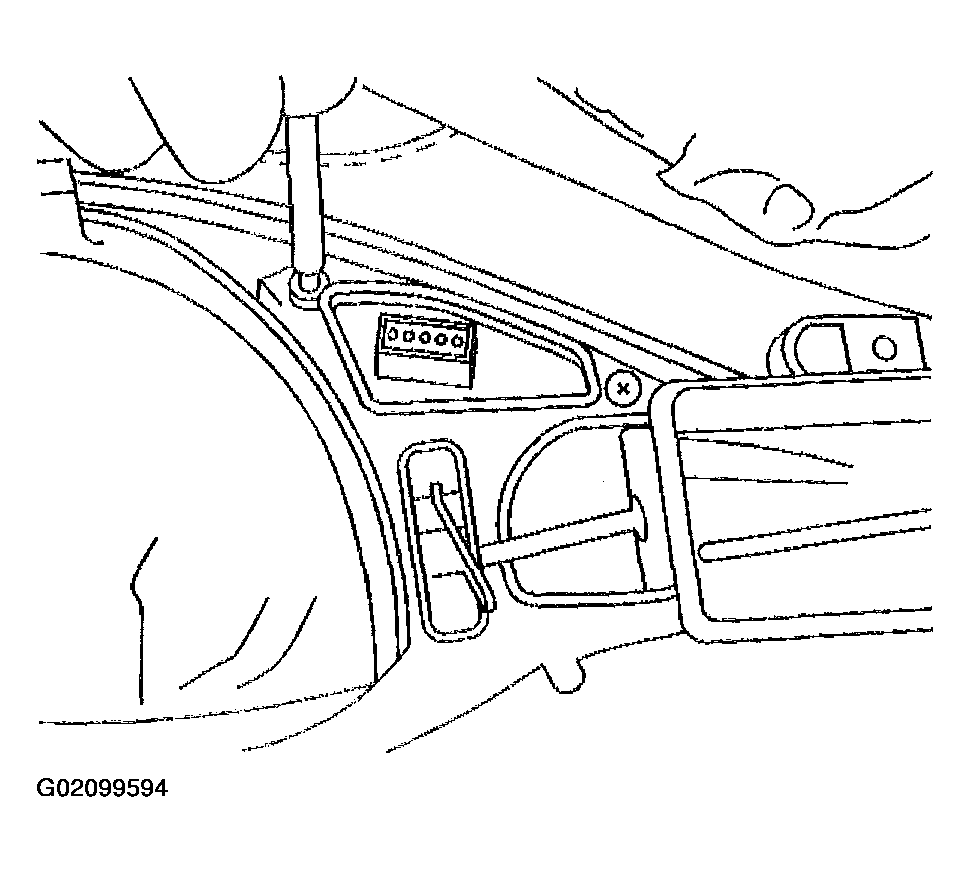

    Fig 2: Installing Instrument Panel Cluster Trim Panel
    G02099594Courtesy of GENERAL MOTORS CORP.
