Removal Procedure

CAUTION: Refer to SIR CAUTION

Remove the auxiliary HVAC control from the center console. Refer to HVAC CONTROL MODULE REPLACEMENT - AUXILIARY
Remove the upper screws (1).
Remove the lower screws (2).
Remove the center console rear cover (3).

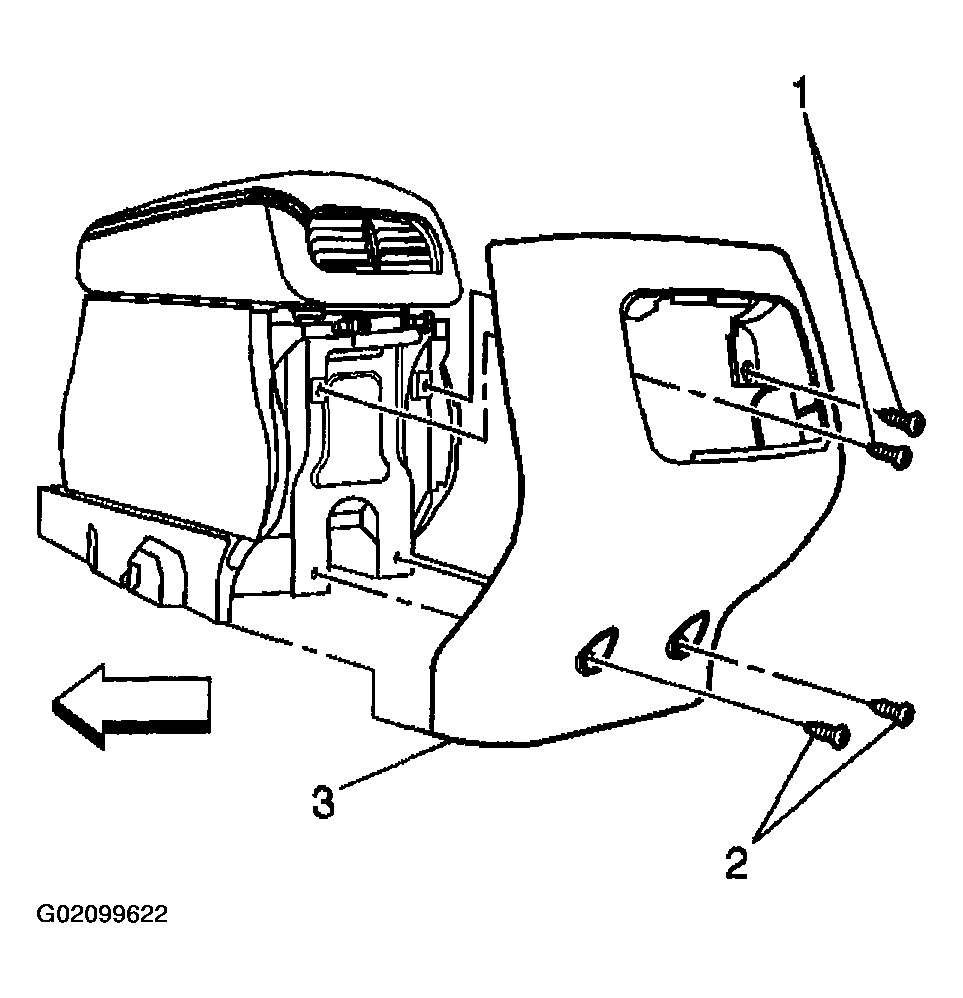

Fig 1: Removing Center Console Rear Cover And Screws
Courtesy of GENERAL MOTORS CORP.
Open the console compartment door.
Use a flat bladed tool in order to remove the inner auxiliary HVAC outlet (2).
Remove the cellular telephone, if equipped with UV8. Refer to CELLULAR TELEPHONE DOCKING STATION REPLACEMENT (DEVILLE AND DHS)
Remove the screws (1) from the console door hinge.
Remove the console door and hinge assembly from the center console.

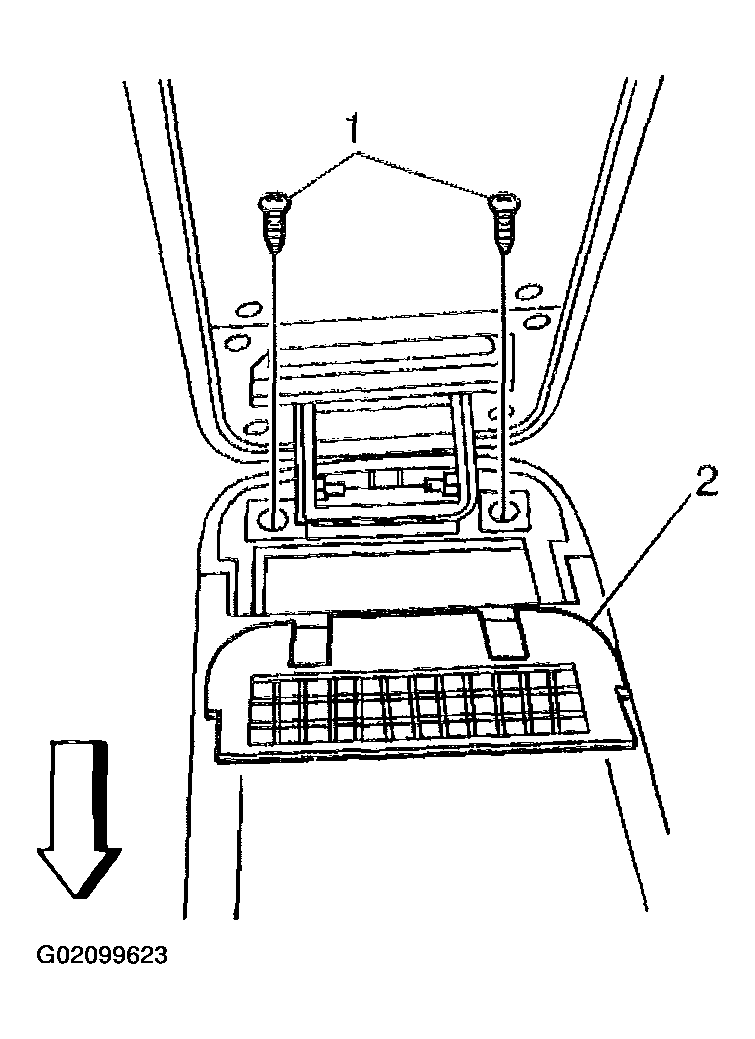

Fig 2: Removing Screws From Console Door Hinge
Courtesy of GENERAL MOTORS CORP.
