Installation Procedure

  1. Partially install the defroster grille.
  2. Reconnect the sunload sensor electrical connector (2) to the sunload sensor (1).

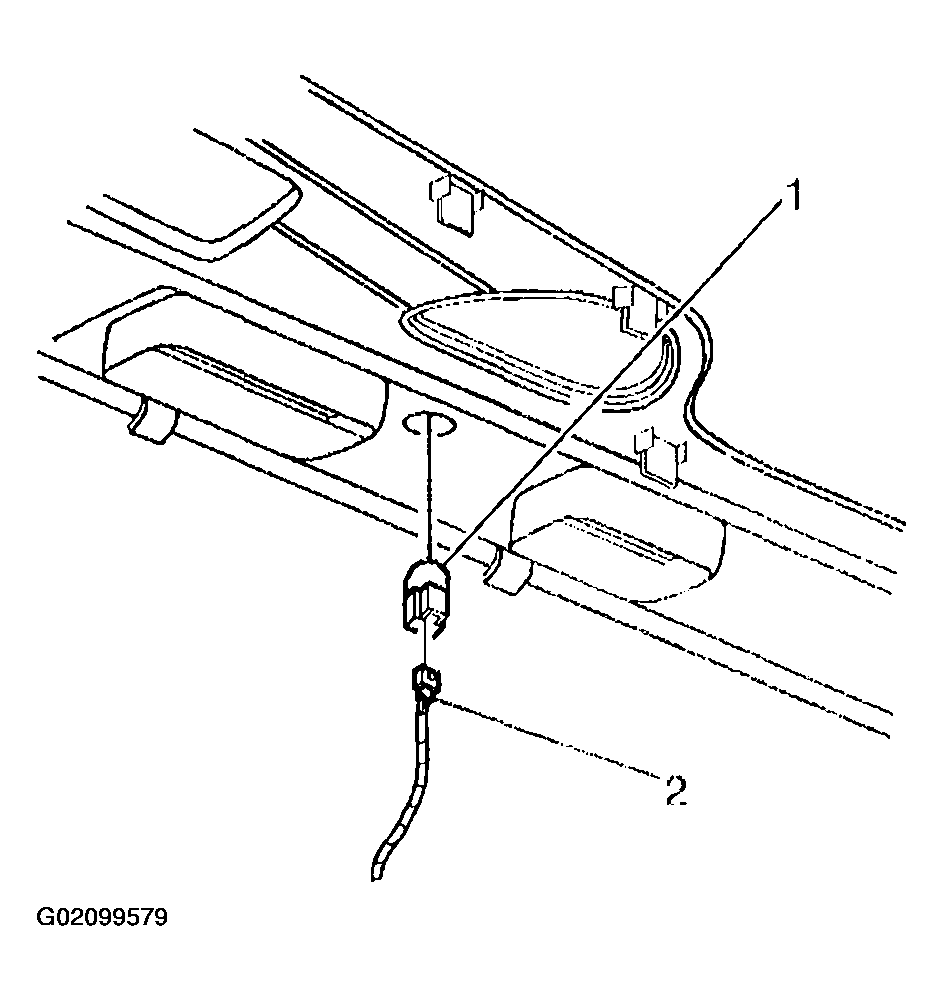

    Fig 1: Reconnecting Sunload Sensor Electrical Connector To Sunload Sensor
    G02099579Courtesy of GENERAL MOTORS CORP.
  3. Insert the forward edge of the defroster grille (1) to the IP.

    Align the defroster grille with the IP opening.

  4. Press down along the rear edge of the defroster grille (1) in order to engage the retainer clips.

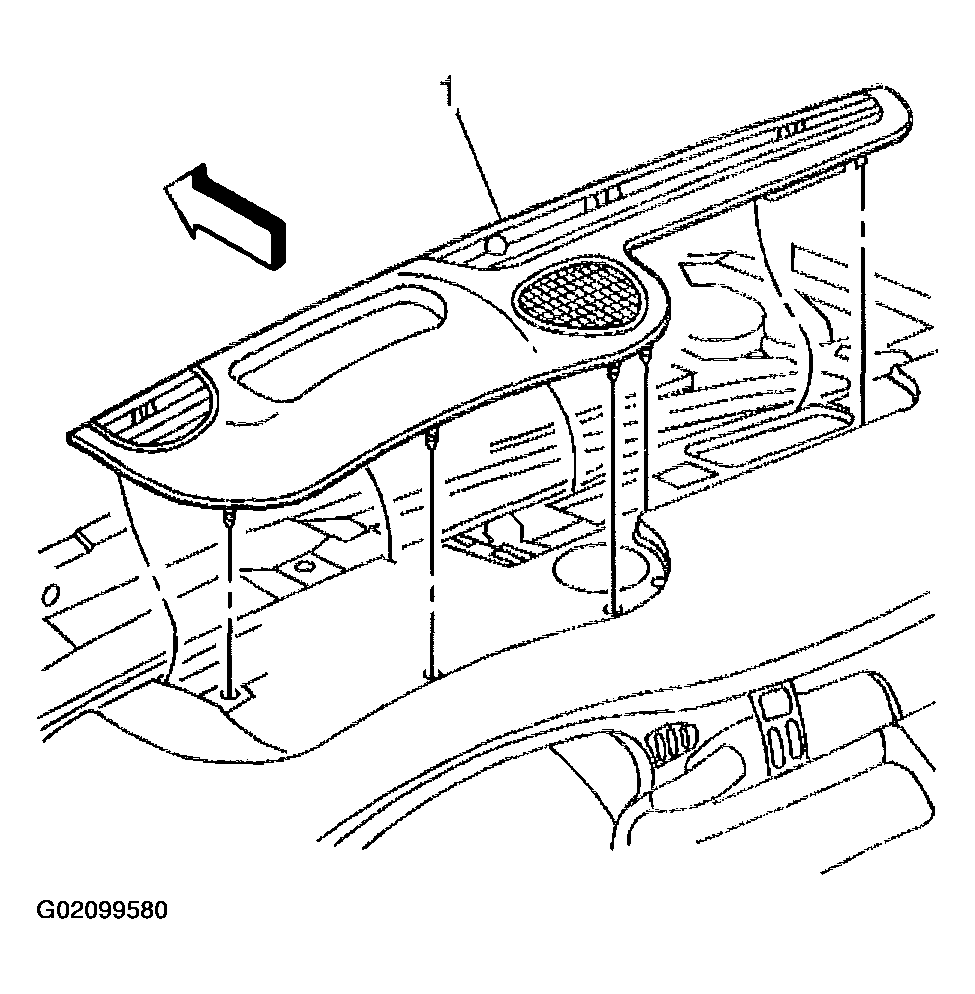

    Fig 2: Inserting Forward Edge Of Defroster Grille To Instrument Panel
    G02099580Courtesy of GENERAL MOTORS CORP.
