Removal Procedure

  1. Remove the center console trim plate. REFER TO TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (DTS)  .
  2. Open the center console door.
  3. Remove the console door striker assembly (1, 2).

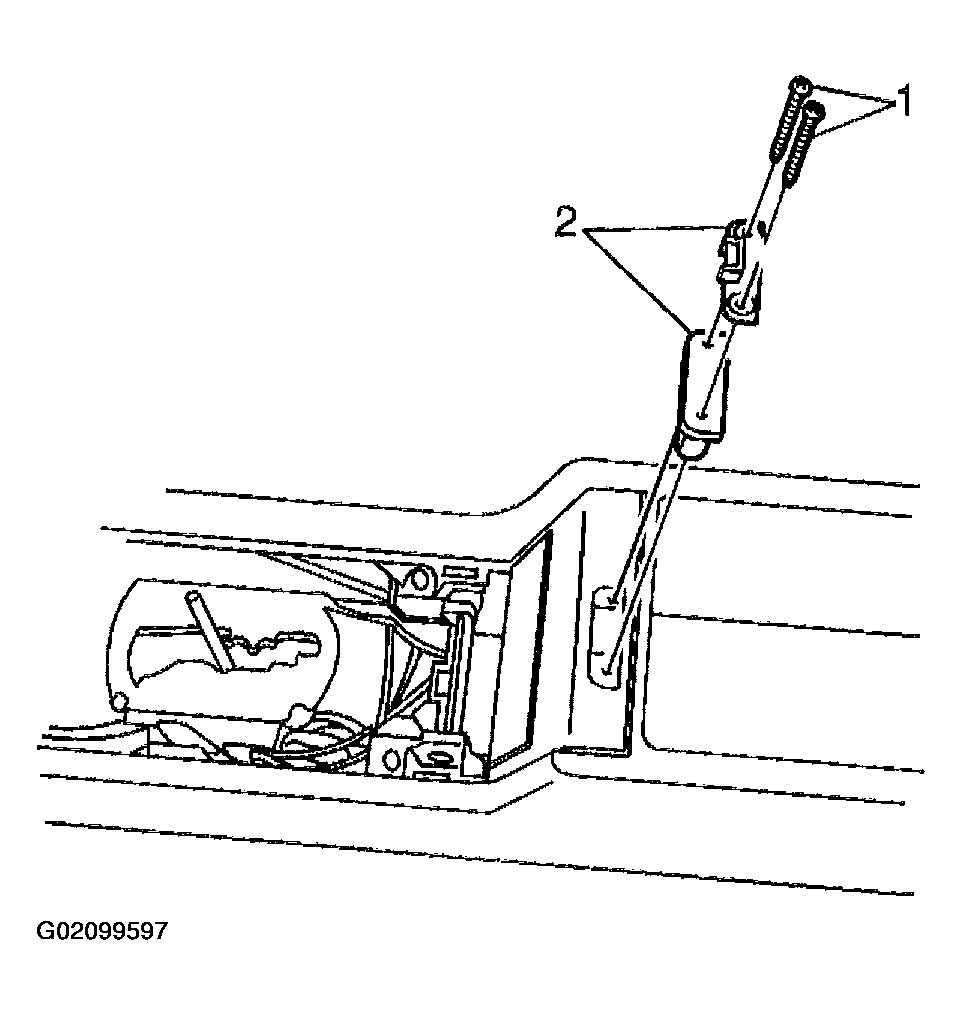

    Fig 1: Removing Console Door Striker Assembly
    G02099597Courtesy of GENERAL MOTORS CORP.
  4. Remove the cup holder trim plate (1) from the center console.

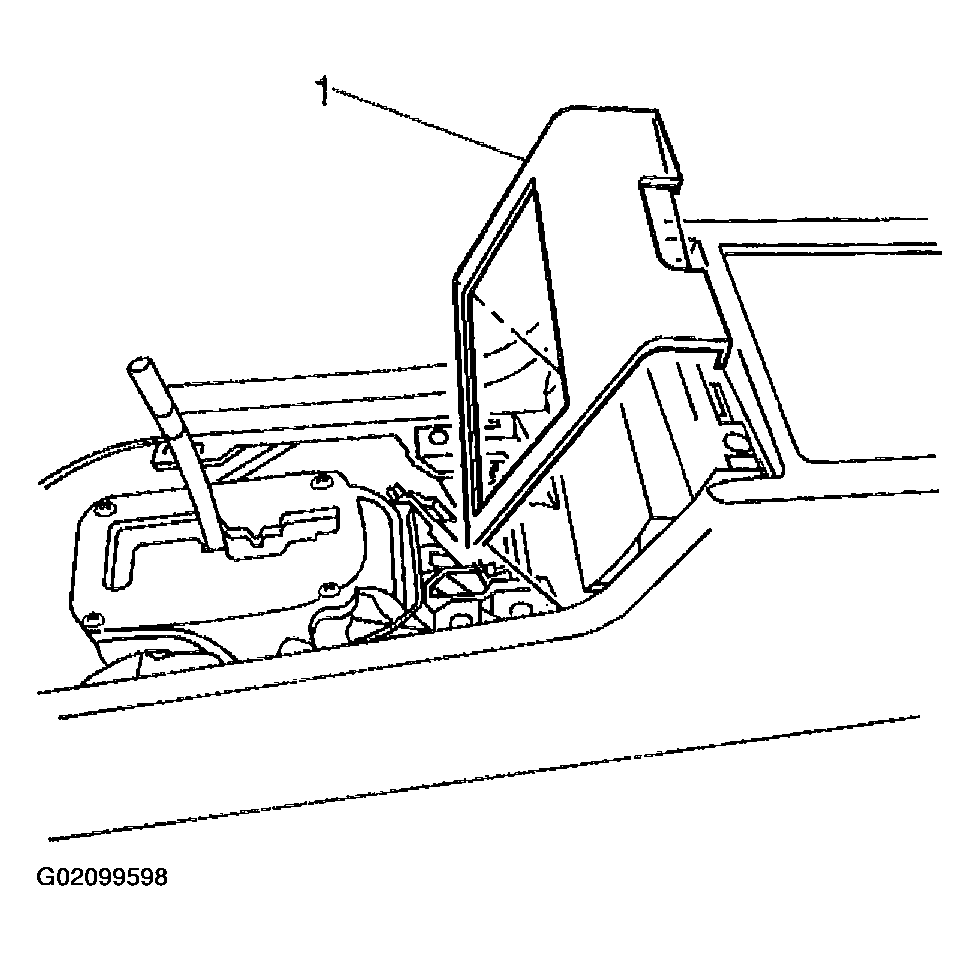

    Fig 2: Removing Cup Holder Trim Plate From Center Console
    G02099598Courtesy of GENERAL MOTORS CORP.
  5. Remove the 4 fasteners (1) from the cup holder assembly (2).
  6. Remove the cupholder assembly (2) from the center console.

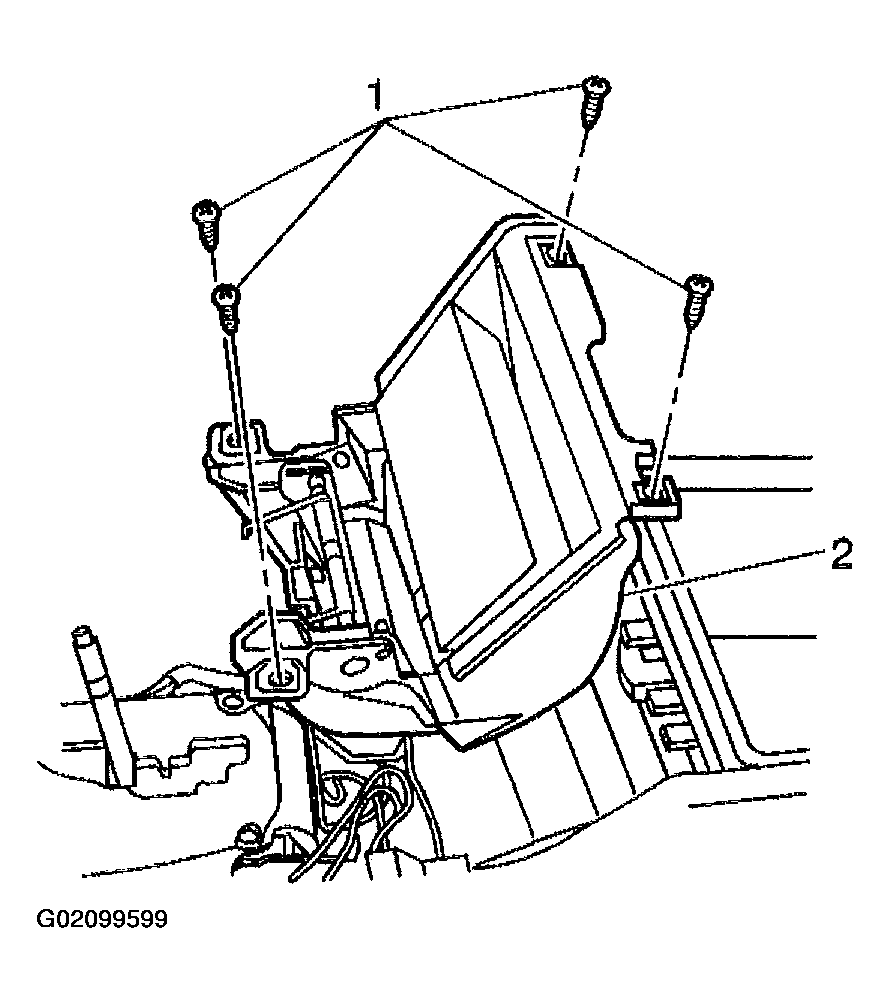

    Fig 3: Removing Cupholder Assembly From Center Console
    G02099599Courtesy of GENERAL MOTORS CORP.
