Removal Procedure

  1. Grasp the rear edge of the console side panel.
  2. Pull out on the side panel in order to disengage the retainers.
  3. Remove the console side panel.

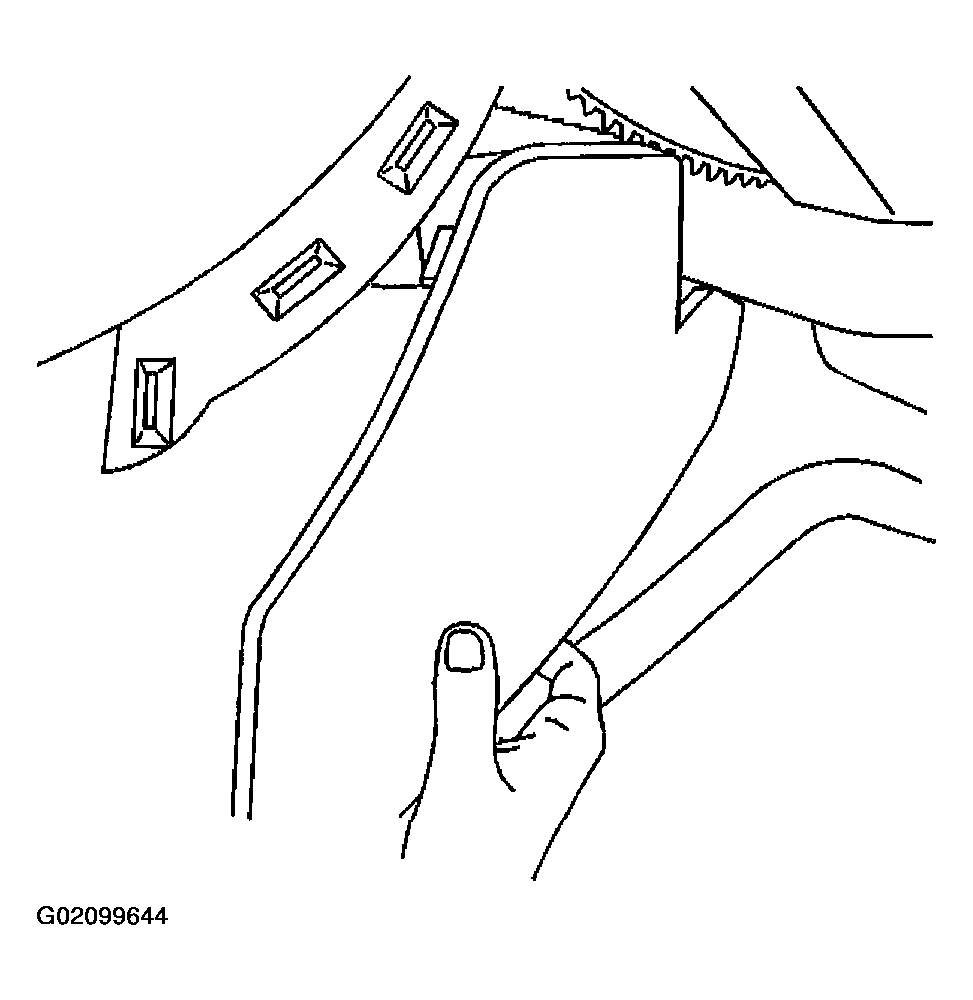

    Fig 1: Disengaging Side Panel Retainers
    G02099644Courtesy of GENERAL MOTORS CORP.
