Installation Procedure

  1. Align the side panel and retainers to the console.
  2. Push firmly on the side panel in order to engage the retainers.

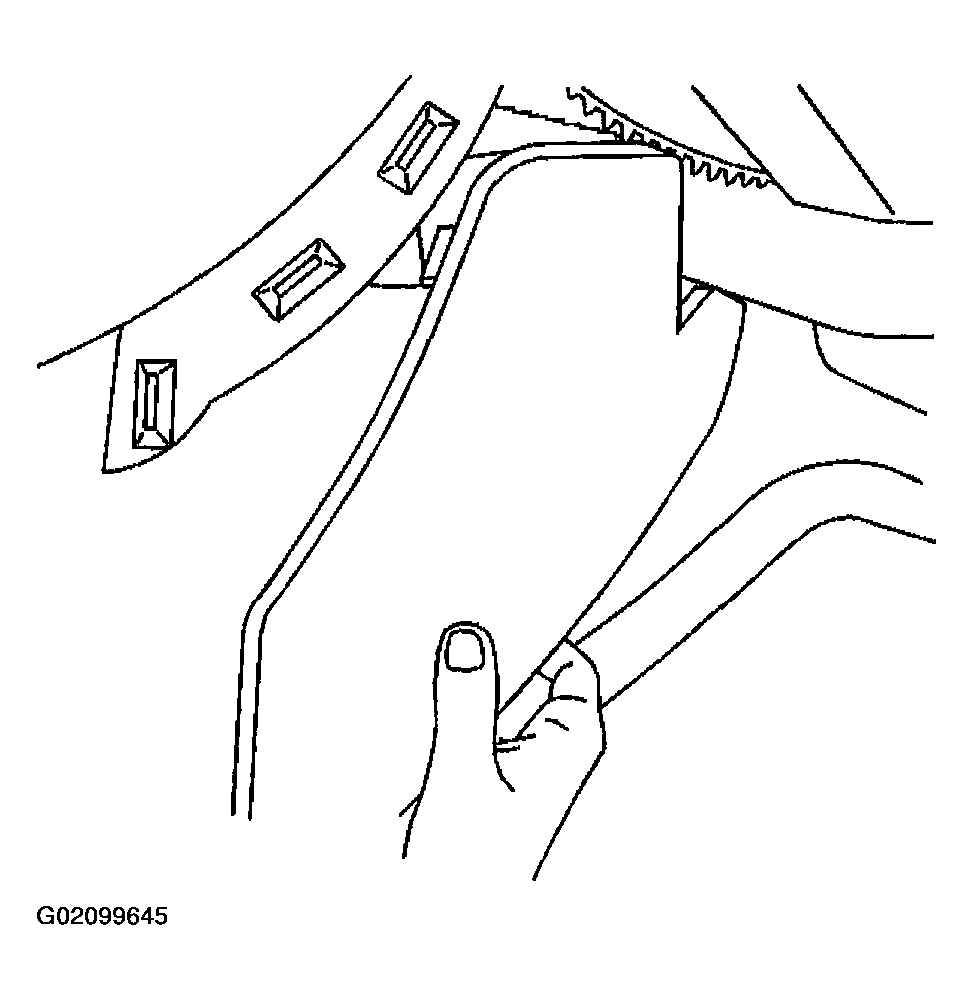

    Fig 1: Engaging Side Panel Retainers
    G02099645Courtesy of GENERAL MOTORS CORP.
