Removal Procedure

  1. Grasp the rear edge of the console trim panel (2).

    A flat bladed tool may be needed to grasp the rear edge of the console trim panel.

  2. Pull out on the rear of the console trim panel (2) in order to disengage the rear retainers.
  3. Push forward on the console trim panel (2) in order to disengage the console trim panel front attachment (1) from the HVAC cover.
  4. Remove the left console trim panel (2).

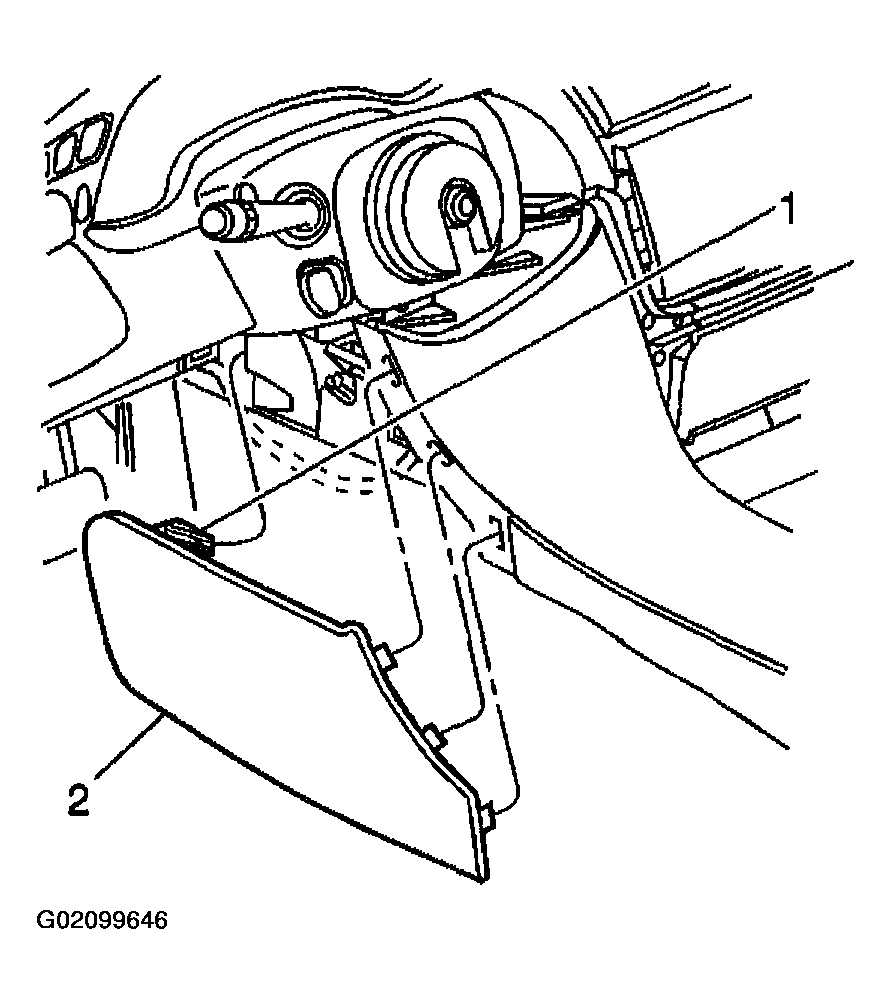

    Fig 1: Removing Left Console Trim Panel
    G02099646Courtesy of GENERAL MOTORS CORP.
