Installation Procedure

CAUTION: Ensure that the front hook of the console trim panel is hooked to the HVAC cover. Failure to engage the hook could result in personal injury or vehicle damage caused by panel interference with the accelerator pedal.

Engage the left console trim panel front attachment by hooking the front attachment to the HVAC case (1).

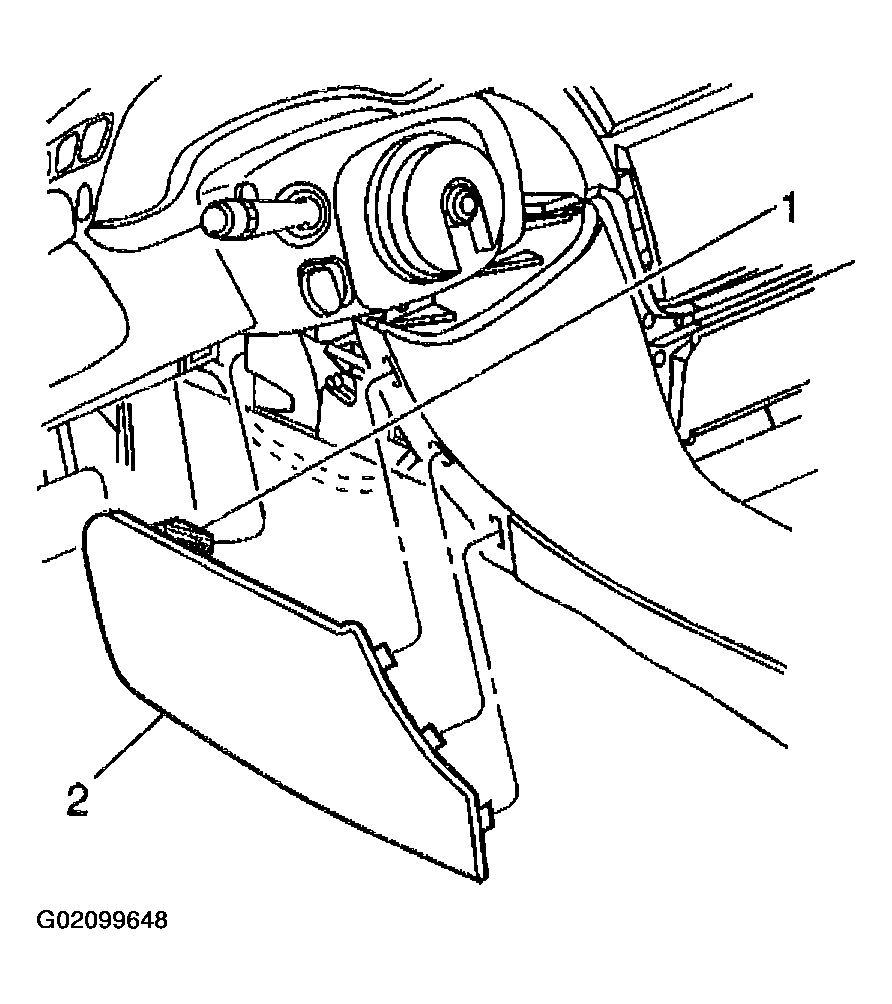

Fig 1: Engaging Left Console Trim Panel Front Attachment
Courtesy of GENERAL MOTORS CORP.
Align the console trim panel retainers to the console.
Push firmly on the trim panel (2) in order to engage the rear retainers.

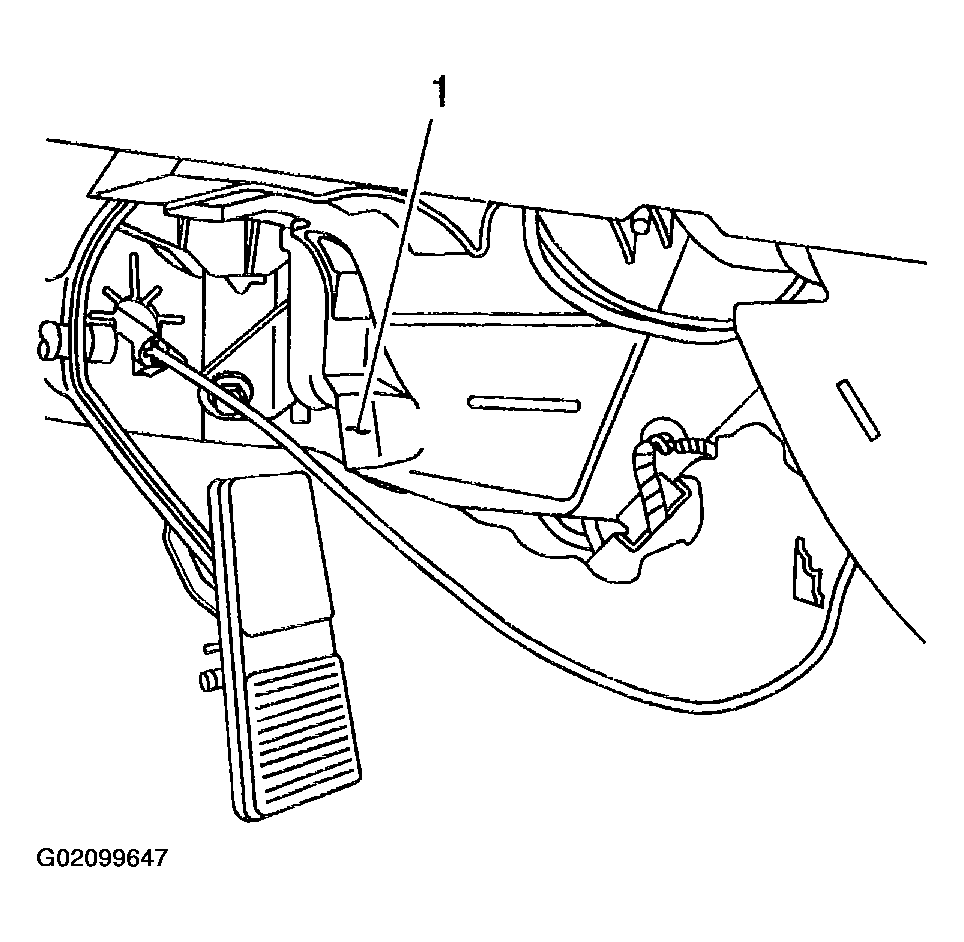

Fig 2: Engaging Trim Panel Rear Retainers
Courtesy of GENERAL MOTORS CORP.
