Removal Procedure

  1. If equipped with UV8, refer to CELLULAR TELEPHONE DOCKING STATION REPLACEMENT (DEVILLE AND DHS) for tray removal.
  2. Open the center console lid.
  3. Remove the center console tray screws (1).
  4. Remove the center console tray (2).

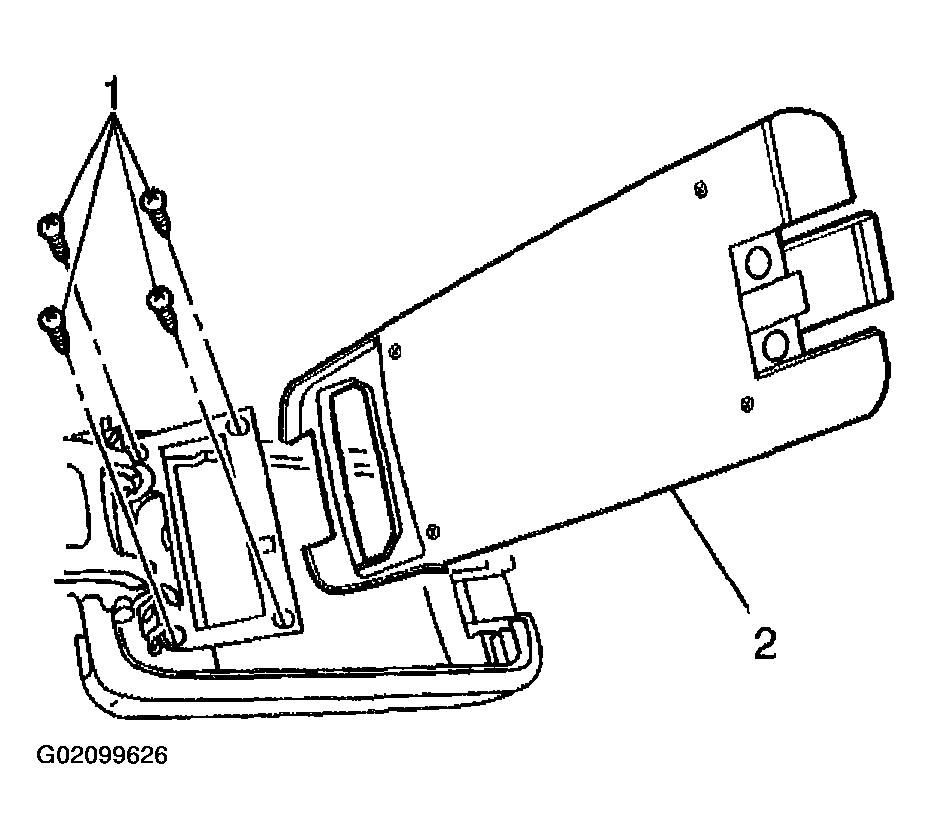

    Fig 1: Removing Center Console Tray
    G02099626Courtesy of GENERAL MOTORS CORP.
