Installation Procedure
- Install the center console to the vehicle.
- Connect the center console electrical connectors.
- Align the locating pins on the center console to the I/P.NOTE: Refer to FASTENER NOTICE

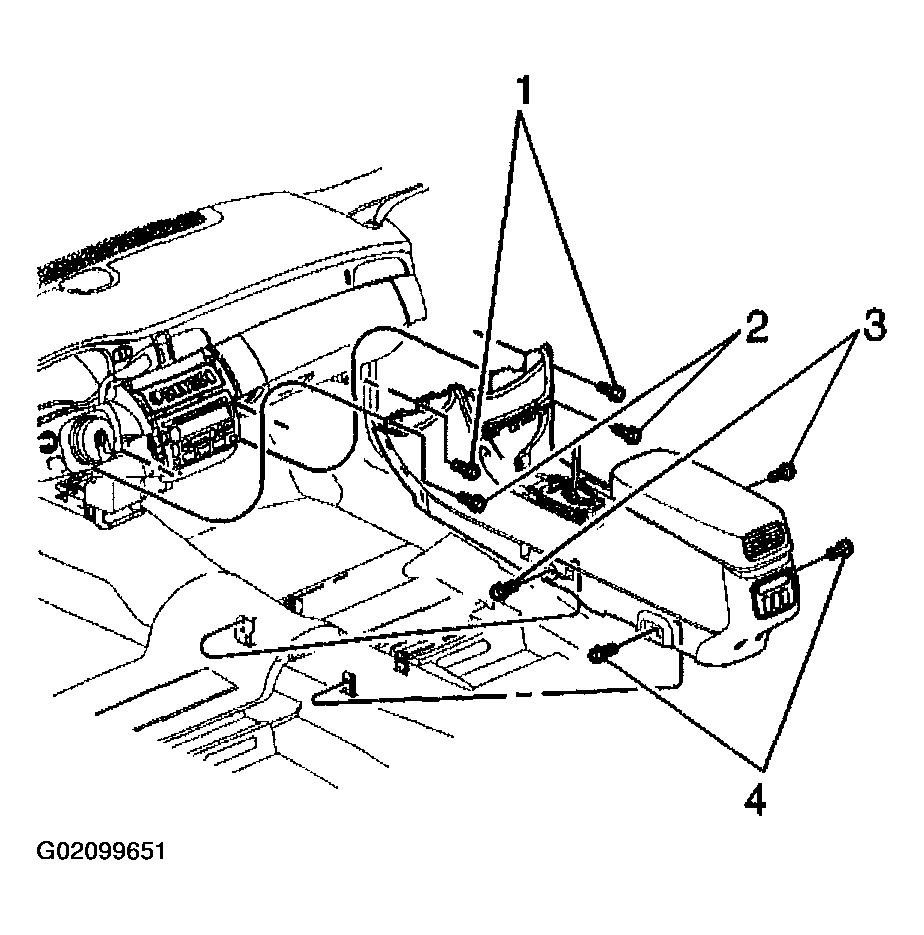

- Install the 2 upper console to I/P fasteners (1).
Tighten
Tighten the fasteners (1) to 9 N.m (80 lb in).
- Install the 2 lower console to I/P fasteners (2).
Tighten
Tighten the fasteners (2) to 9 N.m (80 lb in).
- Adjust the front seats to the forward position.
- Install the 2 rear console to floor fasteners (4).
Tighten
Tighten the fasteners (4) to 9 N.m (80 lb in).
- Adjust the front seats to the rear position.
- Install the 2 front console to floor fasteners (3).
Tighten
Tighten the fasteners (3) to 9 N.m (80 lb in).
- Install the I/P center compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) (BASE AND DHS) or COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) (DTS)

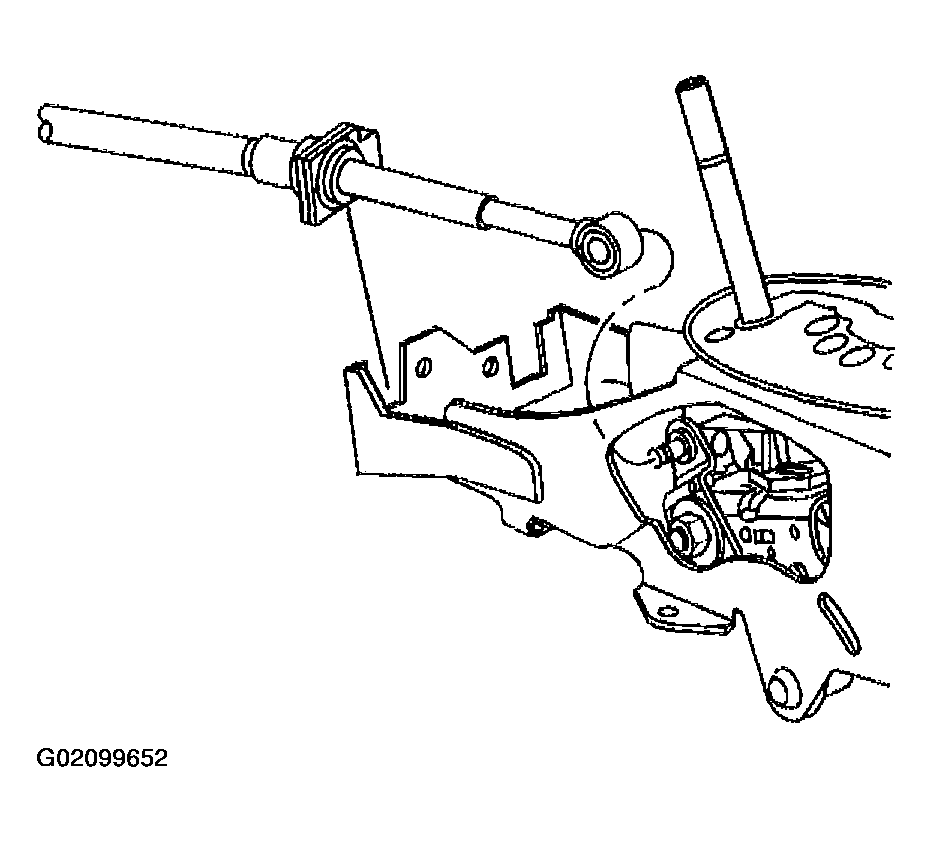

- Slide the transaxle range selector cable fully into the console until it snaps into place.
- Connect the transaxle range selector cable terminal to the shift lever pin.
- Install the console center trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (DTS) .
- Install the right knee bolster. Refer to KNEE BOLSTER REPLACEMENT - RIGHT .
- Install the left knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT (WITHOUT UV2) or KNEE BOLSTER REPLACEMENT - LEFT (UV2) .
- Install both the left and the right console trim panels. Refer to CONSOLE TRIM PANEL REPLACEMENT - LEFT (DTS) and CONSOLE TRIM PANEL REPLACEMENT - RIGHT (DTS) .
- Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM
