Installation Procedure

  1. Partially install the center console.
  2. Connect the cellular phone electrical connector (1).
  3. Connect the cellular phone coaxial cable (2).

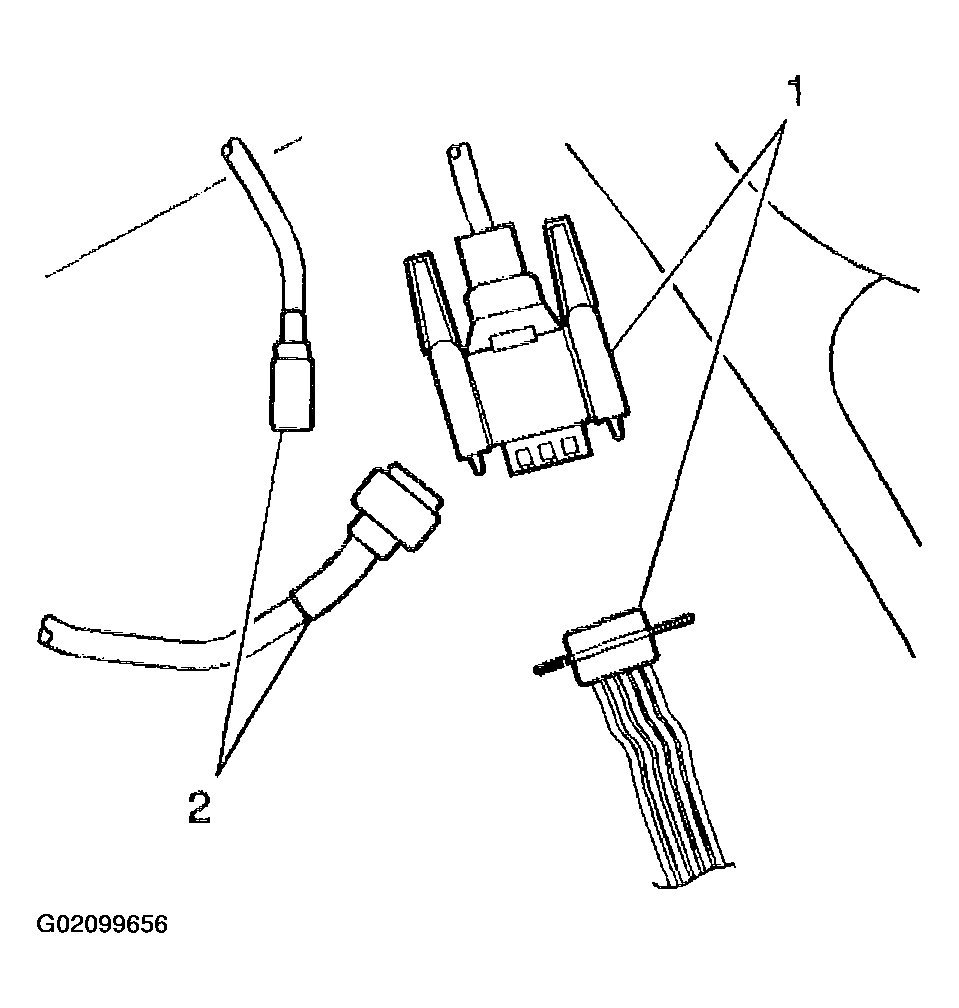

    Fig 1: Connecting Cellular Phone Electrical Connector And Cellular Phone Coaxial Cable
    G02099656Courtesy of GENERAL MOTORS CORP.
  4. Connect the center console electrical connectors.
  5. Align the locating pins on the floor console to the I/P.
  6. Install the upper console to I/P bolts (1).

    Tighten

    Tighten the bolts (1) to 9 N.m (80 lb in).

  7. Install the lower console to I/P bolts (2).

    Tighten

    Tighten the bolts (2) to 9 N.m (80 lb in).

  8. Adjust the front seats to the forward position.
  9. Install the rear console to floor bolts (4).

    Tighten

    Tighten the bolts (4) to 9 N.m (80 lb in).

  10. Adjust the front seats to the rear position.
  11. Install the front console to floor bolts (3).

    Tighten

    Tighten the bolts (3) to 9 N.m (80 lb in).

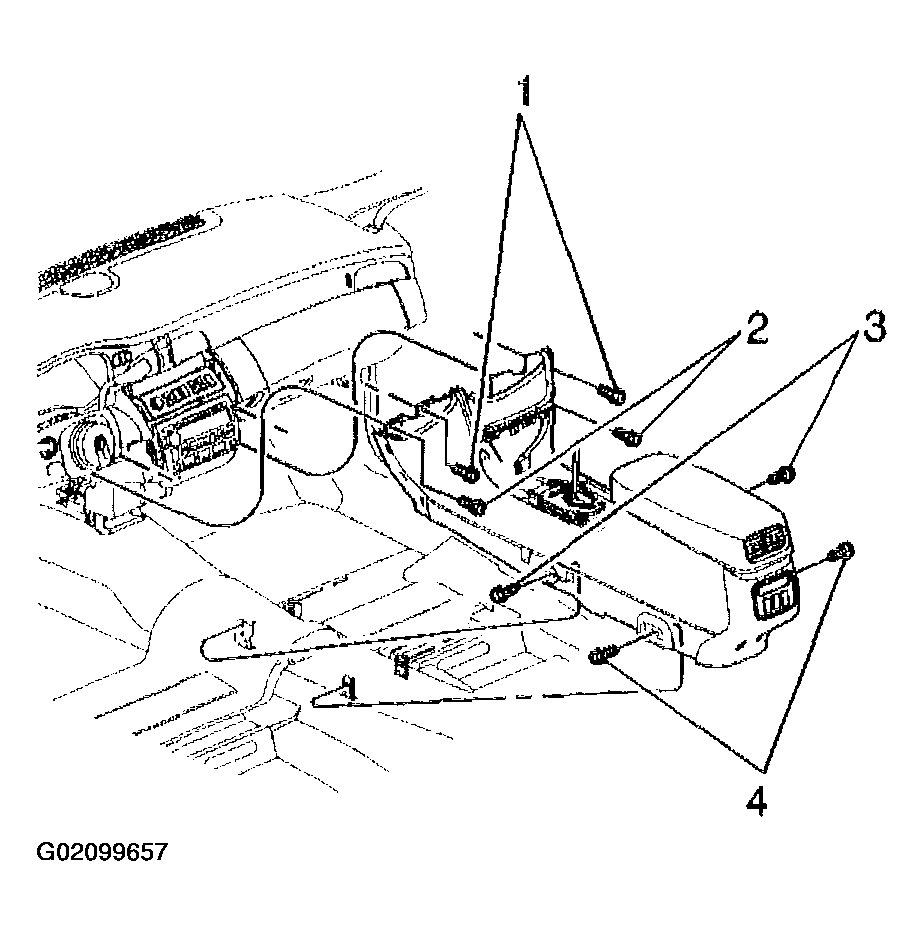

    Fig 2: Installing Upper Console To Instrument Panel Bolts
    G02099657Courtesy of GENERAL MOTORS CORP.
  12. Slide the transaxle range selector cable fully into the console until it snaps into place.
  13. Connect the transaxle range selector cable to the shift lever pin.
  14. Install the I/P center storage compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) (BASE AND DHS)  or COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) (DTS)  .
  15. Install the console center trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (DTS)  .
  16. Install the right knee bolster. Refer to KNEE BOLSTER REPLACEMENT - RIGHT  .

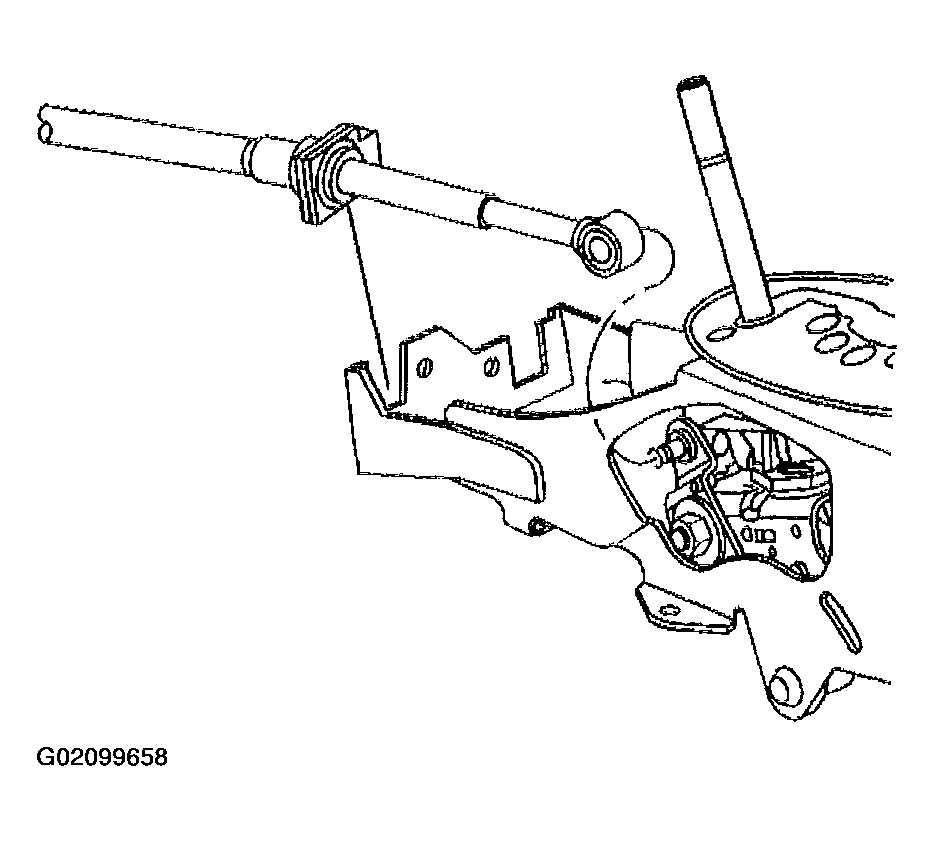

    Fig 3: Connecting Transaxle Range Selector Cable Terminal To Shift Lever Pin
    G02099658Courtesy of GENERAL MOTORS CORP.
  17. Install the left knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT (WITHOUT UV2)  or KNEE BOLSTER REPLACEMENT - LEFT (UV2)  .
  18. Install both the left and the right console trim plates. Refer to CONSOLE TRIM PANEL REPLACEMENT - LEFT (DTS)  and CONSOLE TRIM PANEL REPLACEMENT - RIGHT (DTS)  .
  19. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM
