Removal Procedure

  1. Remove the auxiliary HVAC control from the center console. Refer to HVAC CONTROL MODULE REPLACEMENT - AUXILIARY
  2. Remove the screws (1, 2) from the rear cover (3).
  3. Remove the center console rear cover (3).

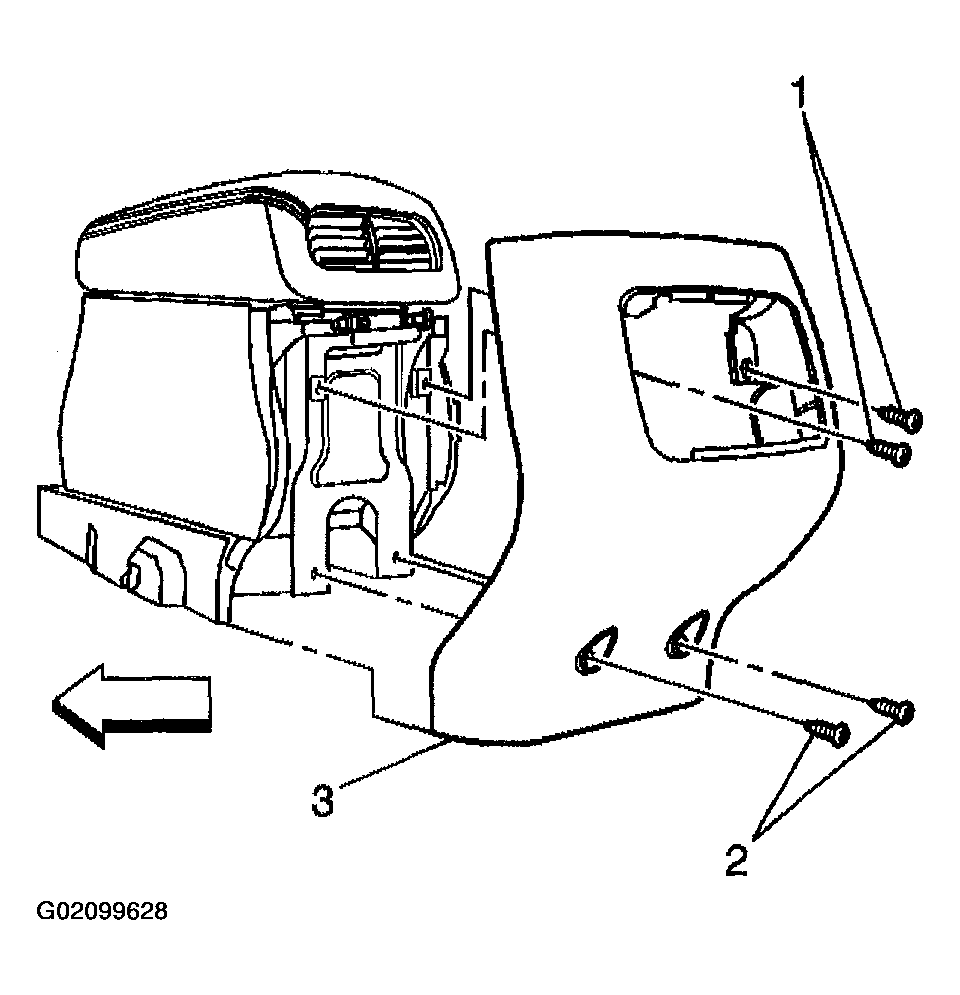

    Fig 1: Removing Center Console Rear Cover
    G02099628Courtesy of GENERAL MOTORS CORP.
  4. Open the console compartment door.
  5. Use a flat bladed tool in order to remove the inner auxiliary HVAC outlet (2).
  6. Remove the cellular telephone docking station, if equipped with UV8. Refer to CELLULAR TELEPHONE DOCKING STATION REPLACEMENT (DEVILLE AND DHS)
  7. Remove the screws (1) from the console door hinge.
  8. Remove the console door and hinge assembly.

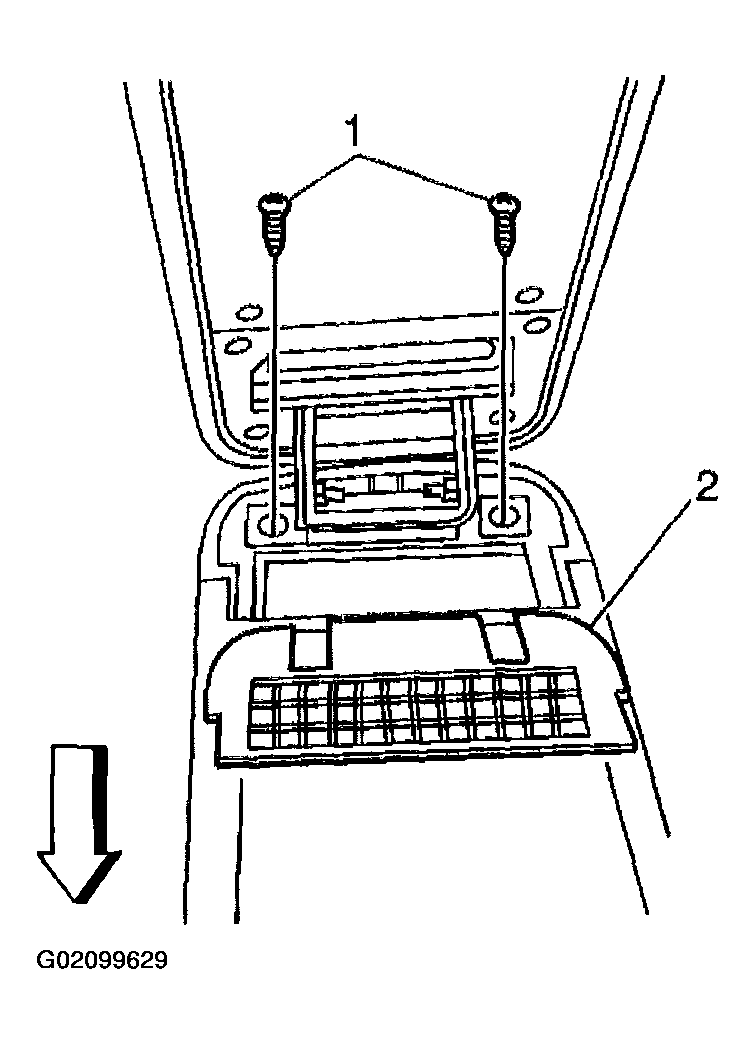

    Fig 2: Removing Screws From Console Door Hinge
    G02099629Courtesy of GENERAL MOTORS CORP.
  9. Remove the screws (1).
  10. Remove the console tray (2).

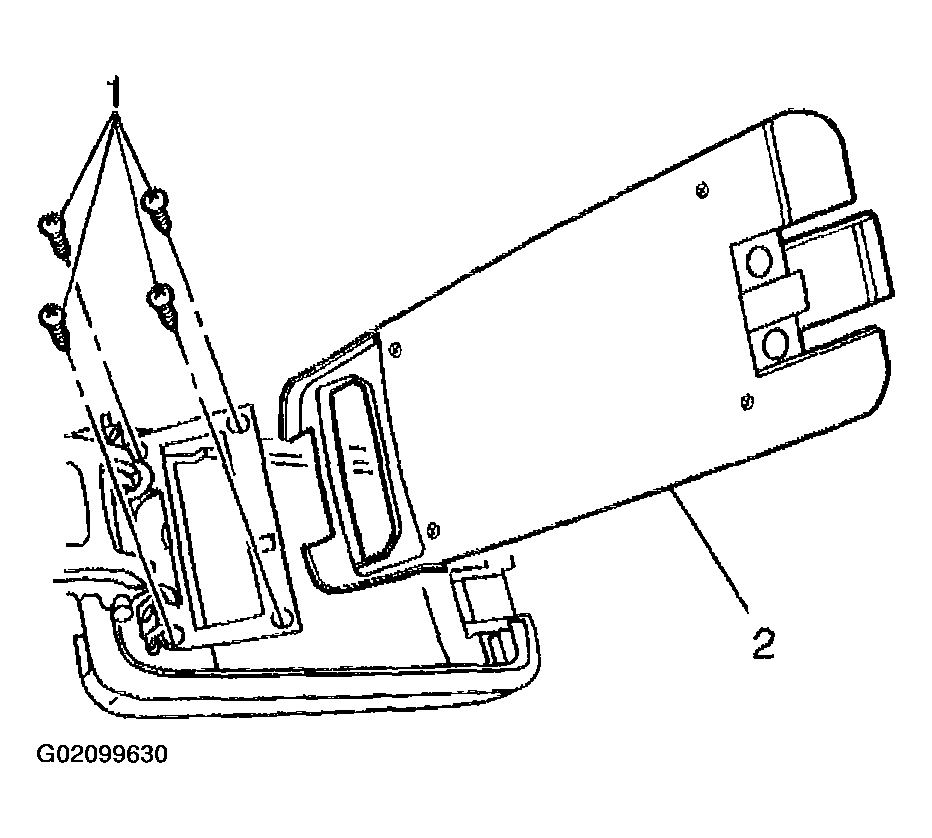

    Fig 3: Removing Center Console Tray
    G02099630Courtesy of GENERAL MOTORS CORP.
  11. Remove the screws (1).
  12. Remove the armrest inner trim panel (2).

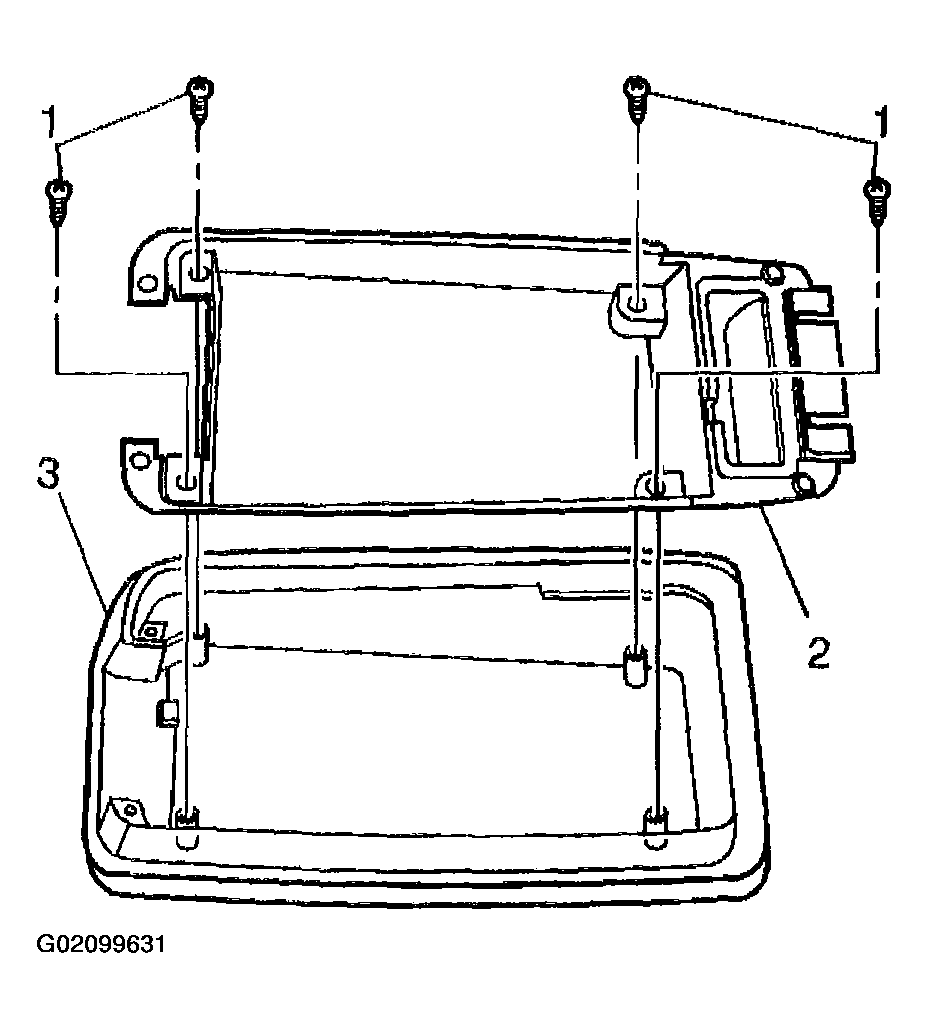

    Fig 4: Removing Armrest Inner Trim Panel
    G02099631Courtesy of GENERAL MOTORS CORP.
  13. Remove the door hinge screws (1).
  14. Remove the console door hinge (2).

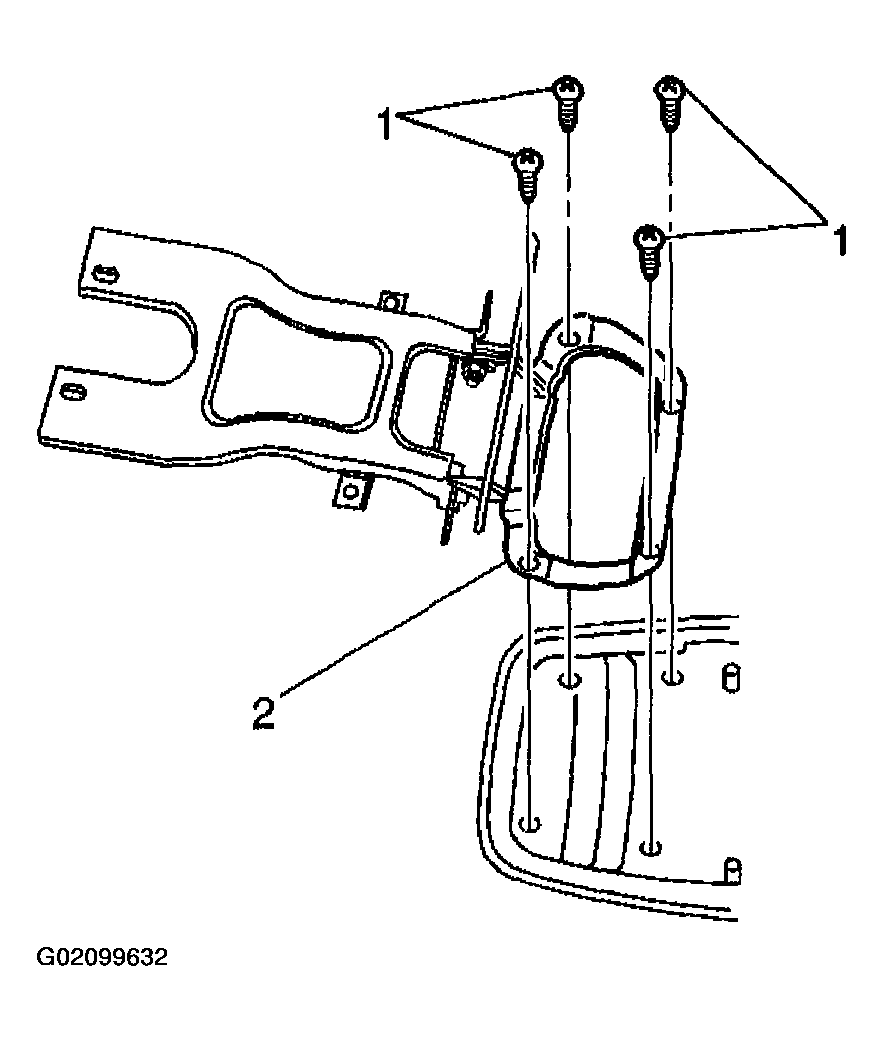

    Fig 5: Removing Console Door Hinge
    G02099632Courtesy of GENERAL MOTORS CORP.
