Removal Procedure

  1. Open the console compartment upper door.

    The console tray insert should be visible.

  2. Remove the 4 fasteners (1) that retain the armrest inner trim panel (2).
  3. Remove the armrest inner trim panel (2).

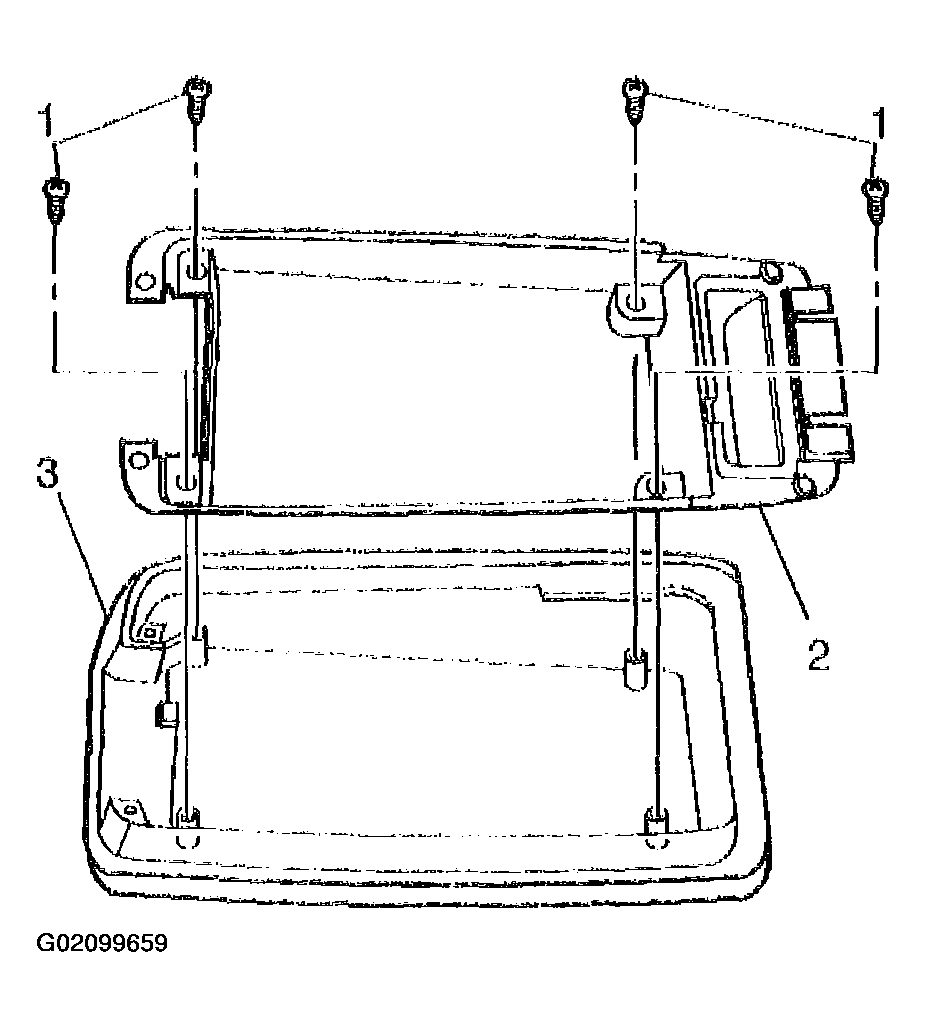

    Fig 1: Removing Armrest Inner Trim Panel And Fasteners
    G02099659Courtesy of GENERAL MOTORS CORP.
  4. Remove the 4 fasteners (1) retaining the console armrest to the console lid hinge.
  5. Remove the center console armrest.

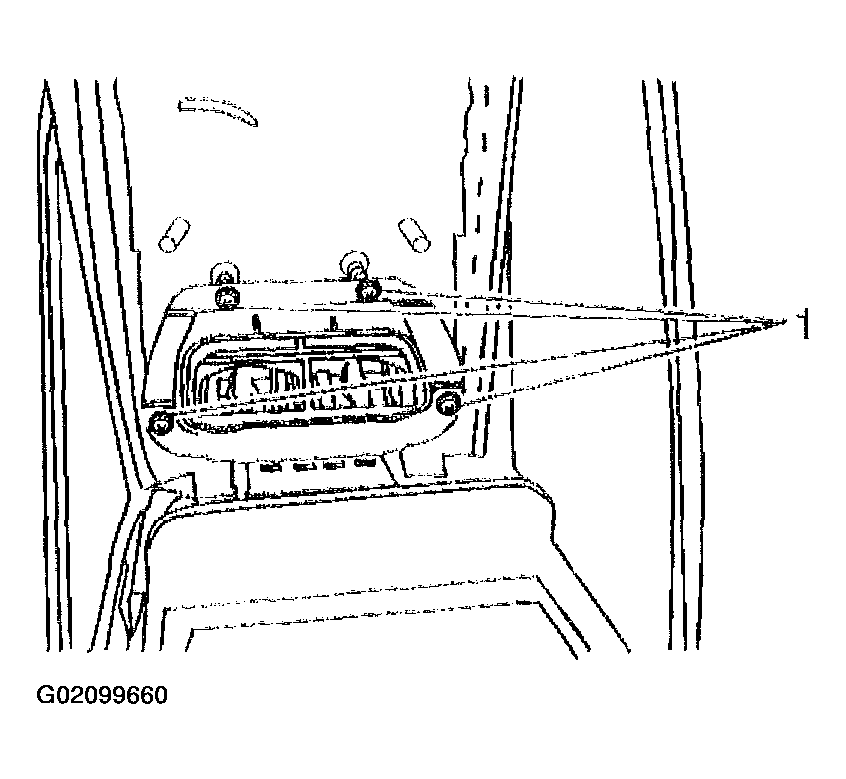

    Fig 2: Removing Fasteners Retaining Console Armrest
    G02099660Courtesy of GENERAL MOTORS CORP.
