Installation Procedure

  1. Align the console lid with the console lid hinge.
  2. Install the fasteners (1) that retain the console lid to the hinge.

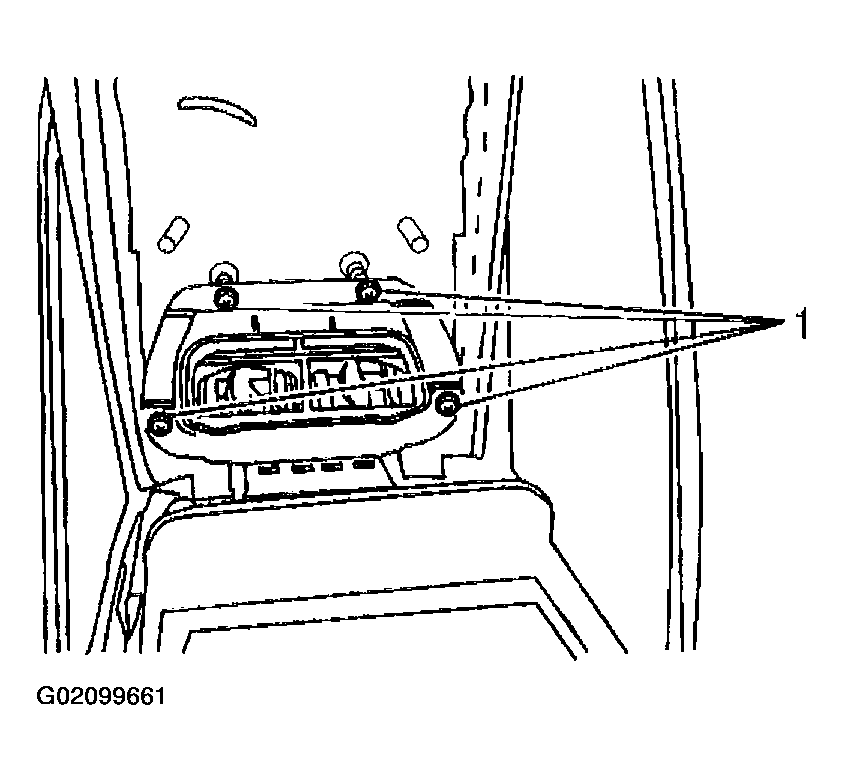

    Fig 1: Installing Fasteners Retaining Console Lid
    G02099661Courtesy of GENERAL MOTORS CORP.
  3. Align the console inner trim panel (2) to the console armrest.
  4. Install the fasteners (1) that retain the armrest inner trim panel to the armrest.
  5. Check for proper operation of the center console lid latches.

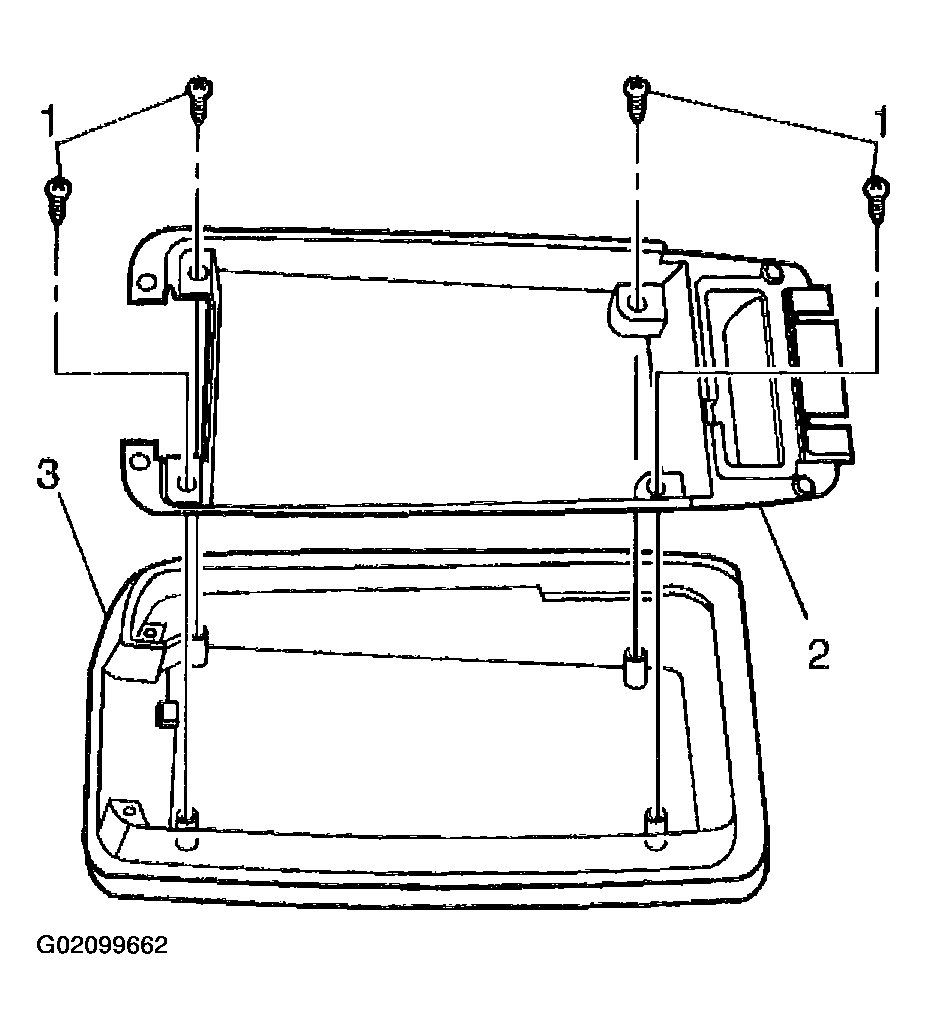

    Fig 2: Installing Console Inner Trim Panel And Fasteners
    G02099662Courtesy of GENERAL MOTORS CORP.
