Removal Procedure

  1. Remove the left knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT (WITHOUT UV2)  or KNEE BOLSTER REPLACEMENT - LEFT (UV2)  .
  2. Remove the right knee bolster. Refer to KNEE BOLSTER REPLACEMENT - RIGHT  .
  3. Remove the four fasteners (2) retaining the center storage compartment (1).
  4. Disconnect the electrical connector if equipped.
  5. Remove the center compartment (1).

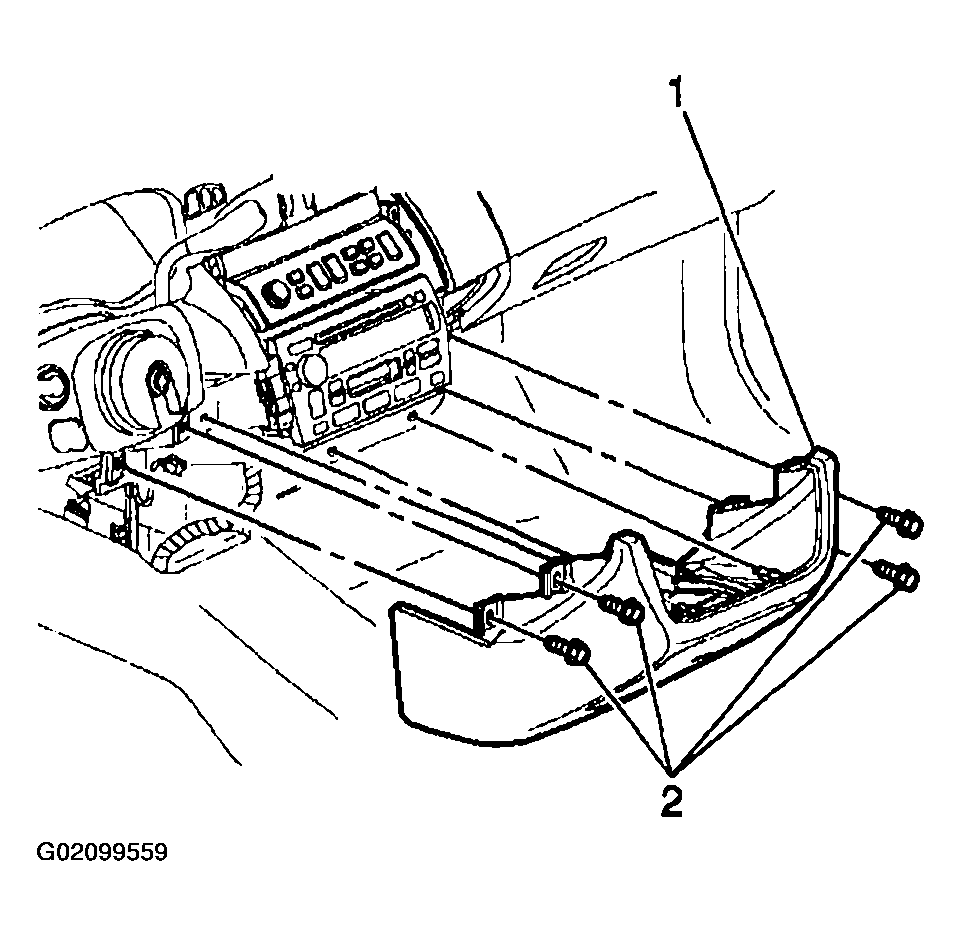

    Fig 1: Removing Center Storage Compartment And Fasteners
    G02099559Courtesy of GENERAL MOTORS CORP.
