Removal Procedure

  1. Remove the fasteners (1) from the rear edge of the closeout / insulator panel (2).
  2. Pull the closeout / insulator panel down in order to disengage the push pin type fasteners from the lower instrument panel.

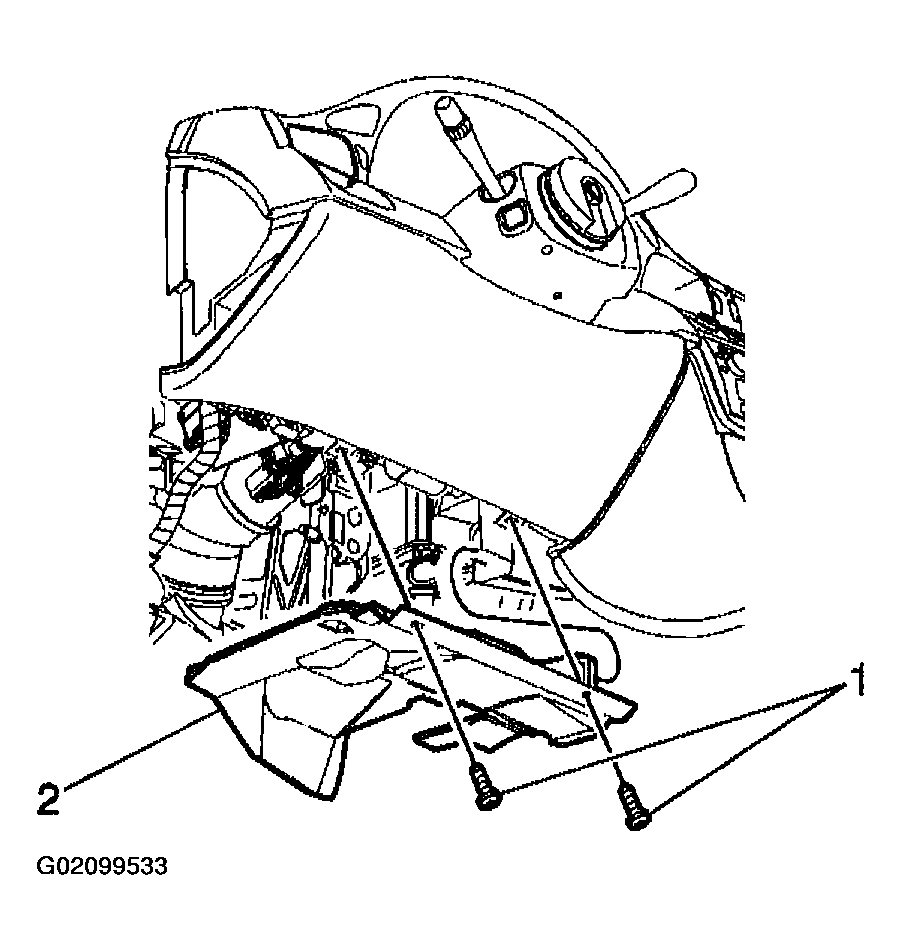

    Fig 1: Removing Fasteners From Rear Edge Of Closeout / Insulator Panel
    G02099533Courtesy of GENERAL MOTORS CORP.
  3. Slide the closeout / insulator panel (2) toward the rear vehicle in order to clear the emergency brake bracket (1).

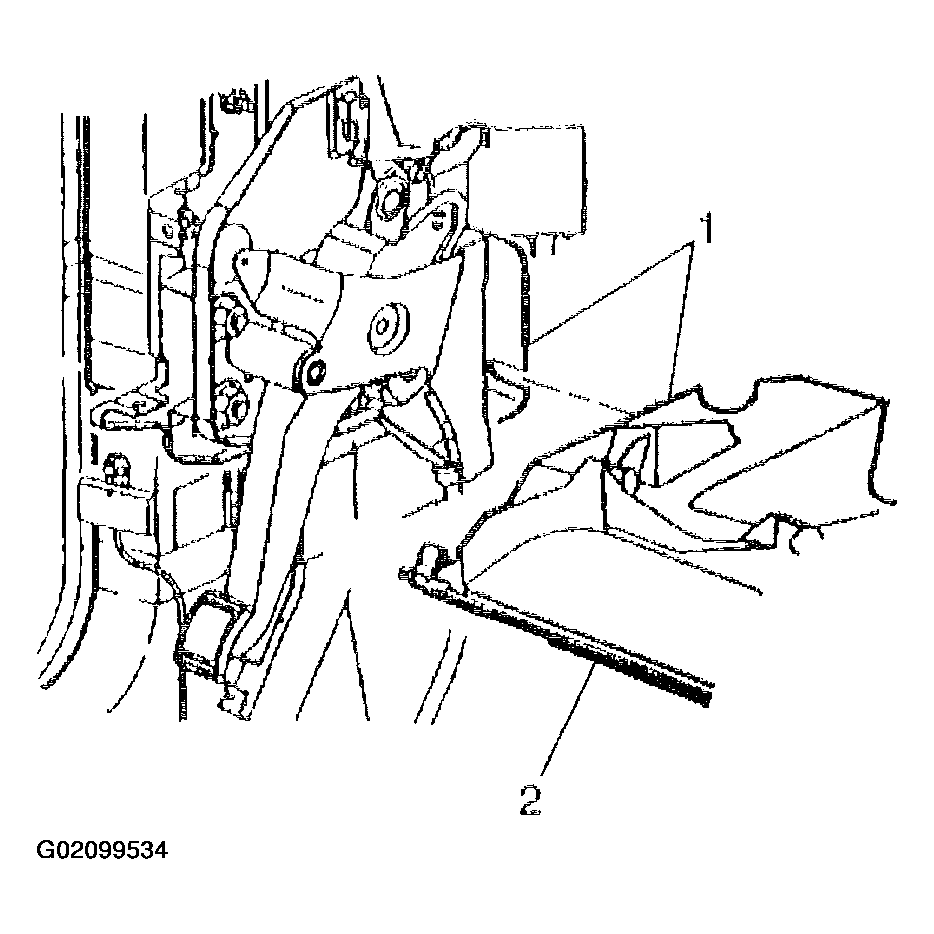

    Fig 2: Clearing Emergency Brake Bracket
    G02099534Courtesy of GENERAL MOTORS CORP.
