Removal Procedure

Important:

• Do not remove the night vision bracket except for replacement.
• If the night vision camera is removed or adjusted for any reason, it must be aimed. Refer to NIGHT VISION CAMERA AIMING  .

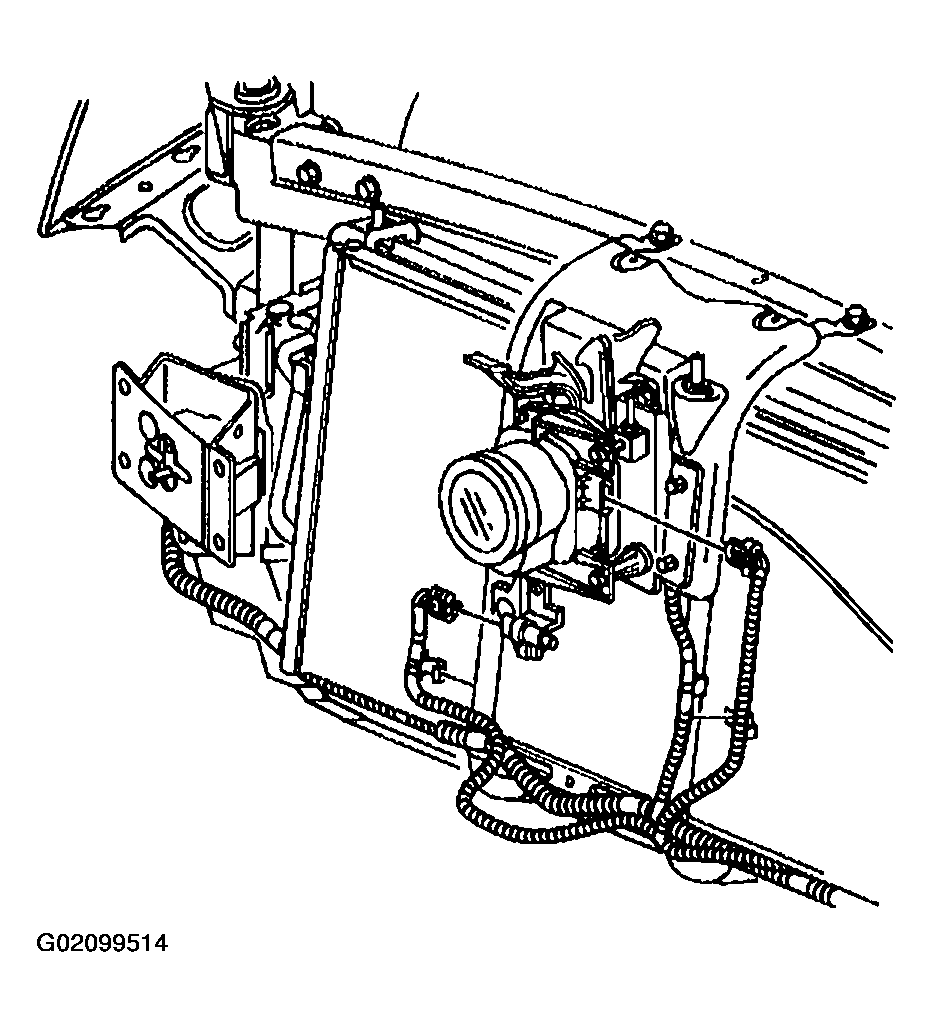

1. Disconnect the electrical connector.
   Fig 1: Disconnecting Night Vision Camera Electrical Connectors

   Courtesy of GENERAL MOTORS CORP.

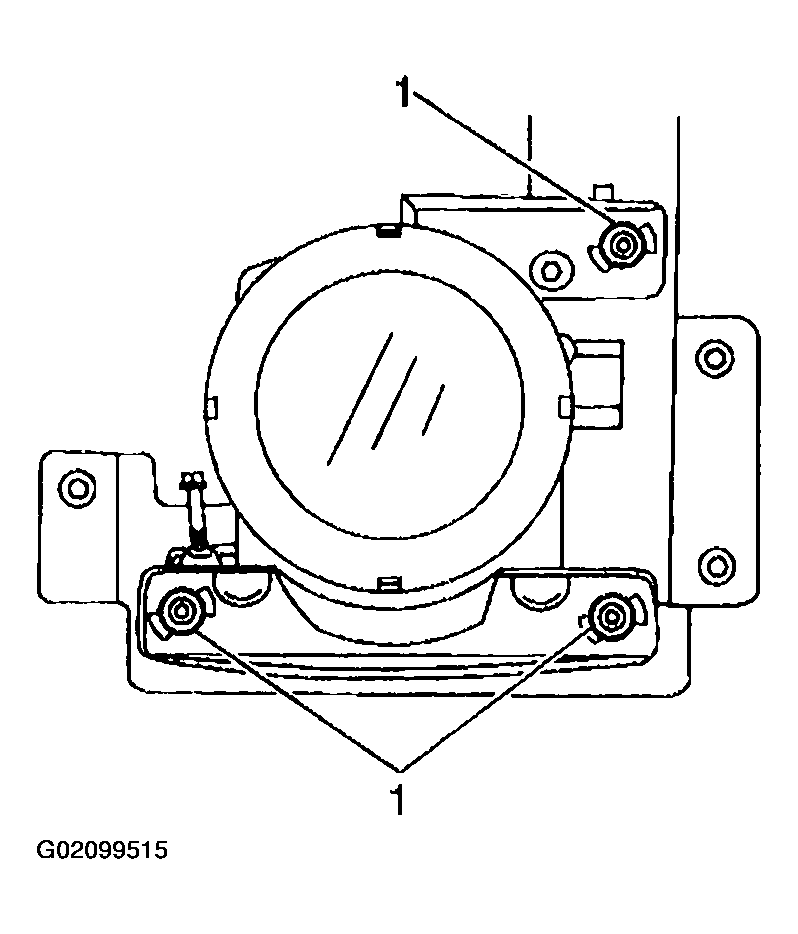

2. Turn the three camera retainers (1) 90 degrees and remove the camera from the mounting bracket.
   Fig 2: Removing Night Vision Camera By Turning Three Camera Retainers

   Courtesy of GENERAL MOTORS CORP.
3. Remove the fasteners from the night vision camera bracket in order to remove the camera bracket from the hood latch bracket.
   Fig 3: Removing Fasteners From Night Vision Camera Bracket

   Courtesy of GENERAL MOTORS CORP.
