Installation Procedure

Install the night vision mounting bracket to the hood latch bracket.
NOTE: Refer to FASTENER NOTICE
Lower the hood and tighten the night vision mounting fasteners through the grill, in order to ensure the camera is aligned with the center of the grill opening (1).
Tighten

Tighten the night vision camera mounting fasteners to 9 N.m (80 lb in).

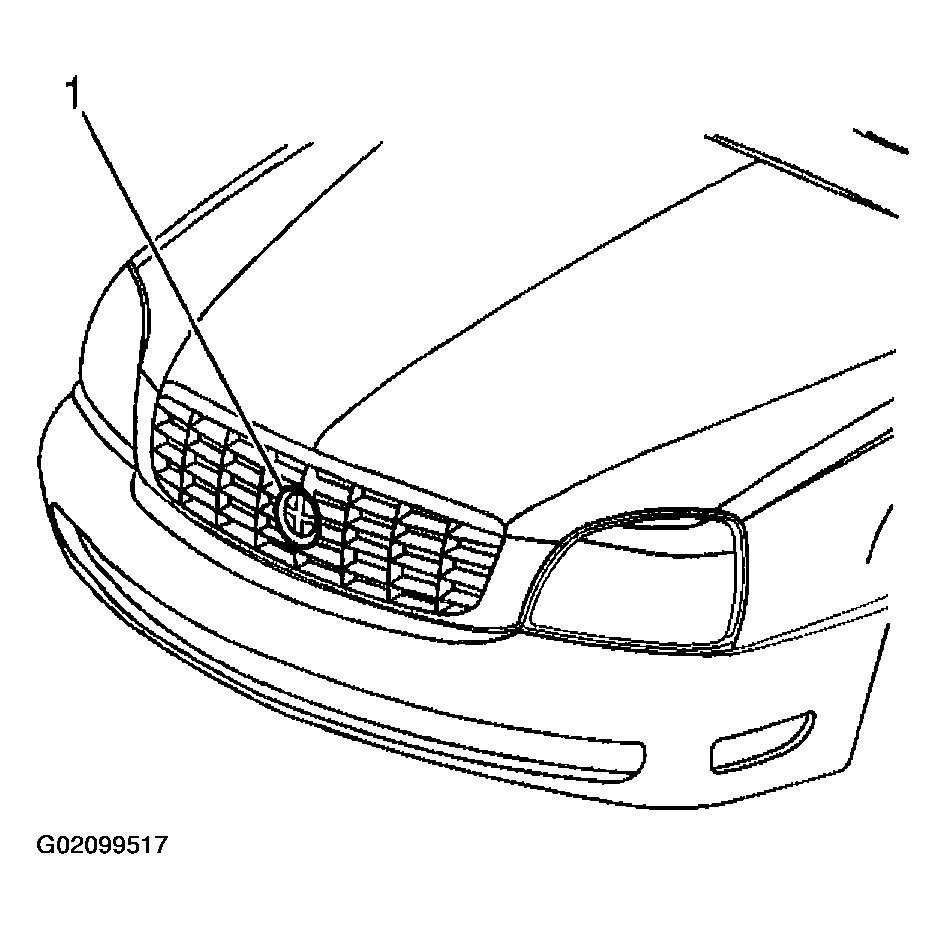

Fig 1: Aligning Night Vision Camera With Center Of Grill Opening
Courtesy of GENERAL MOTORS CORP.

Important: Make sure the retainers are fully turned and in the locked position.
Install the night vision camera to the mounting bracket and turn the retainers (1) 90 degrees.

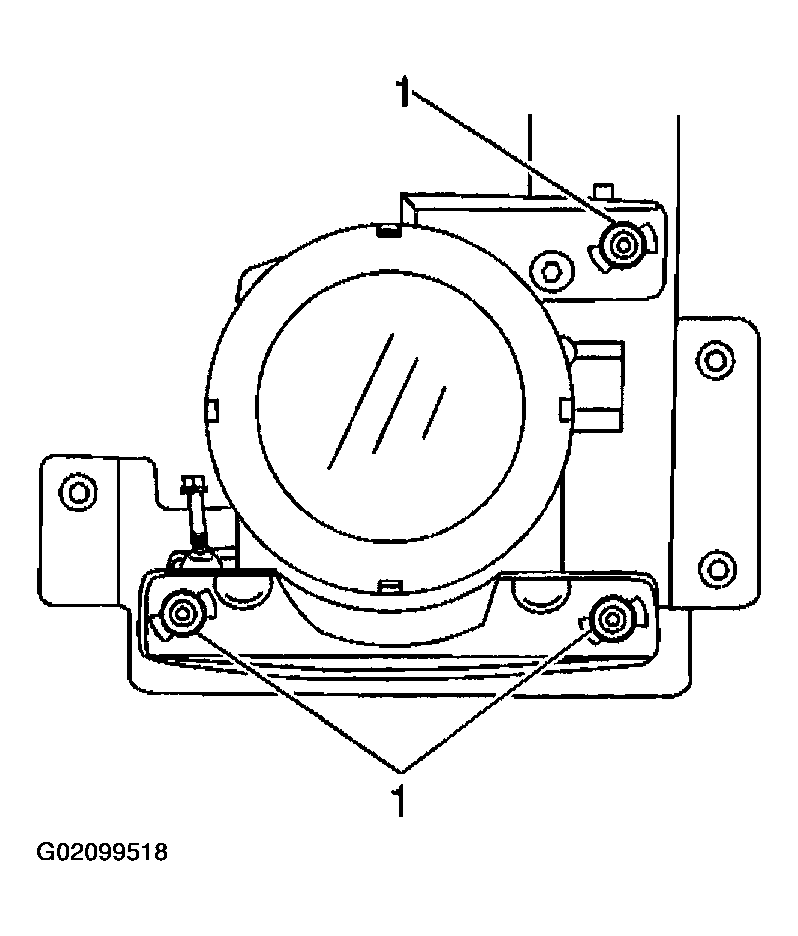

Fig 2: Installing Night Vision Camera By Turning Three Camera Retainers
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector.
Perform aiming procedure for night vision camera. Refer to NIGHT VISION CAMERA AIMING .

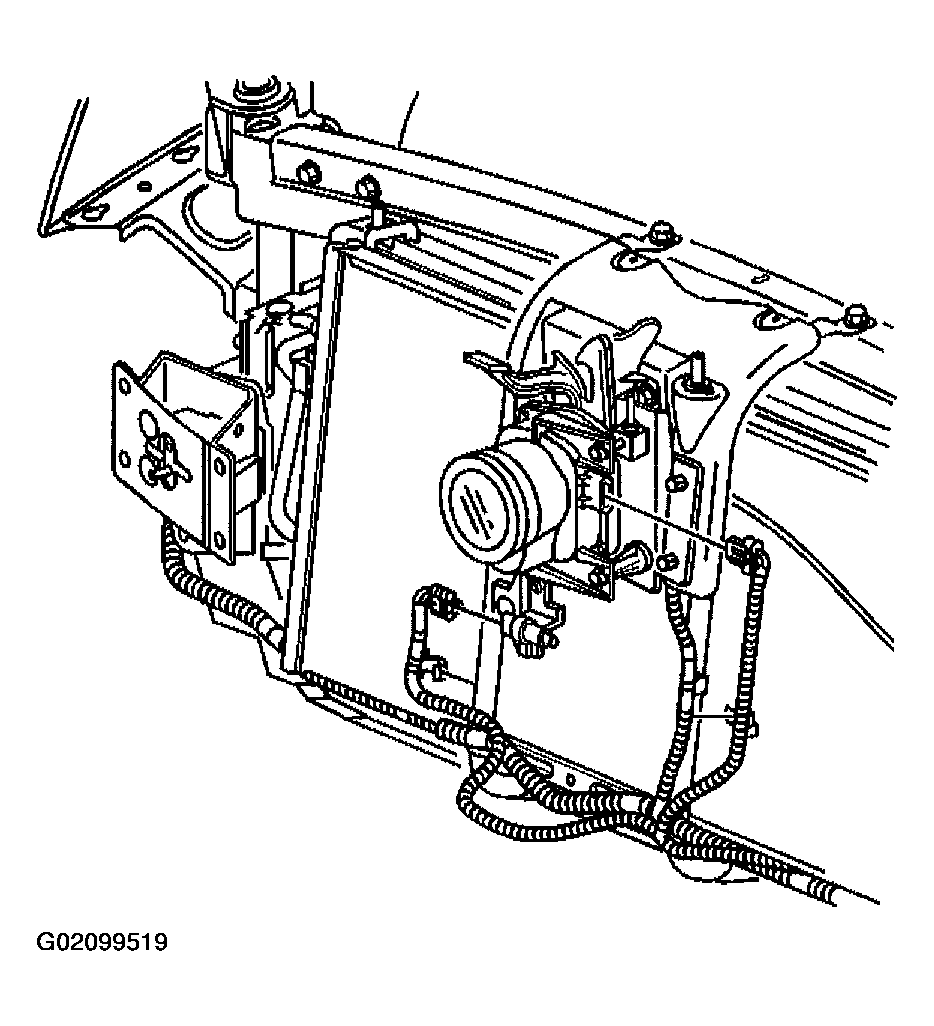

Fig 3: Connecting Night Vision Camera Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
