Tachometer Inaccurate or Inoperative

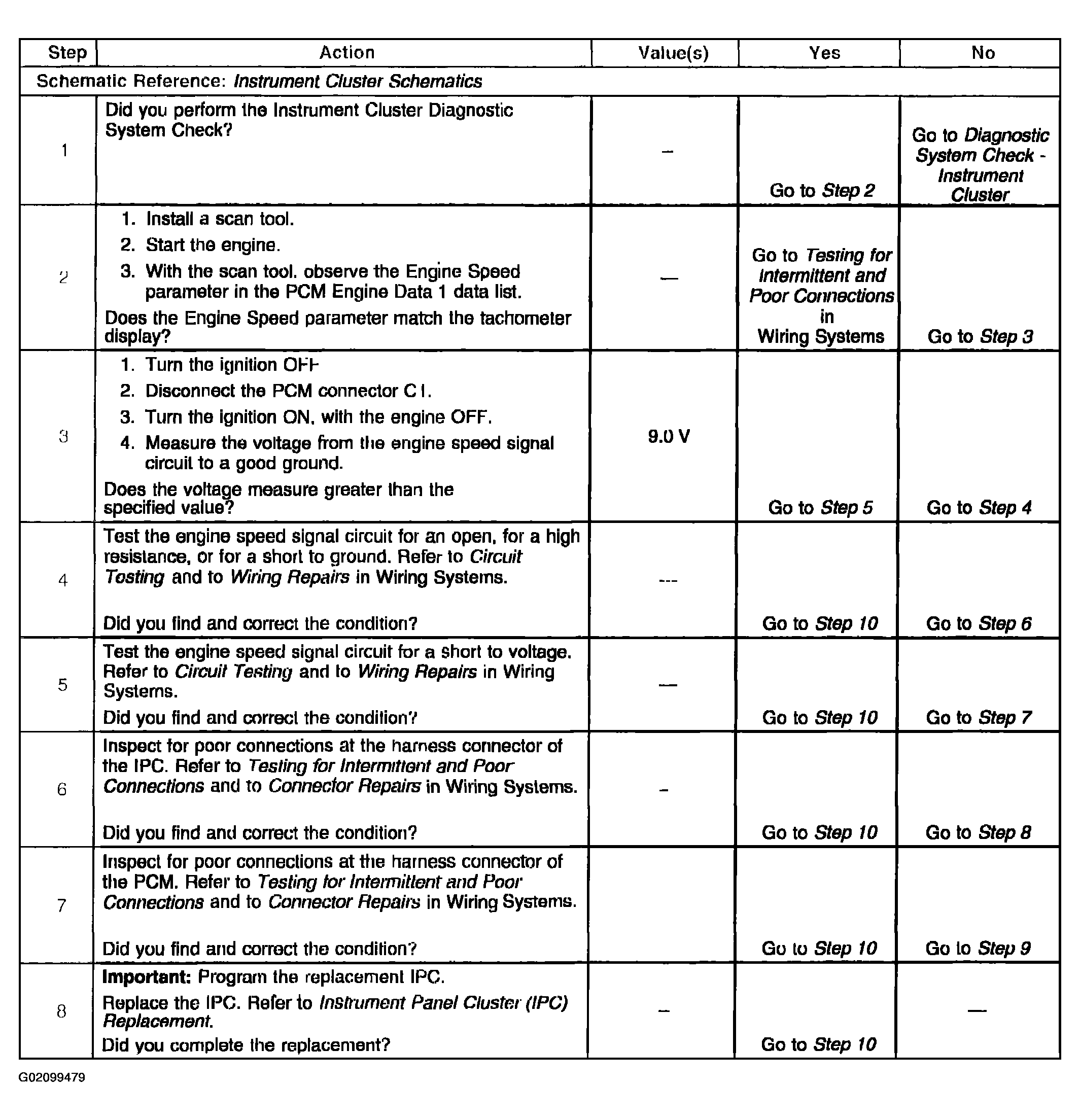

Fig 1: Diagnosis Procedure - Tachometer Inaccurate Or Inoperative (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

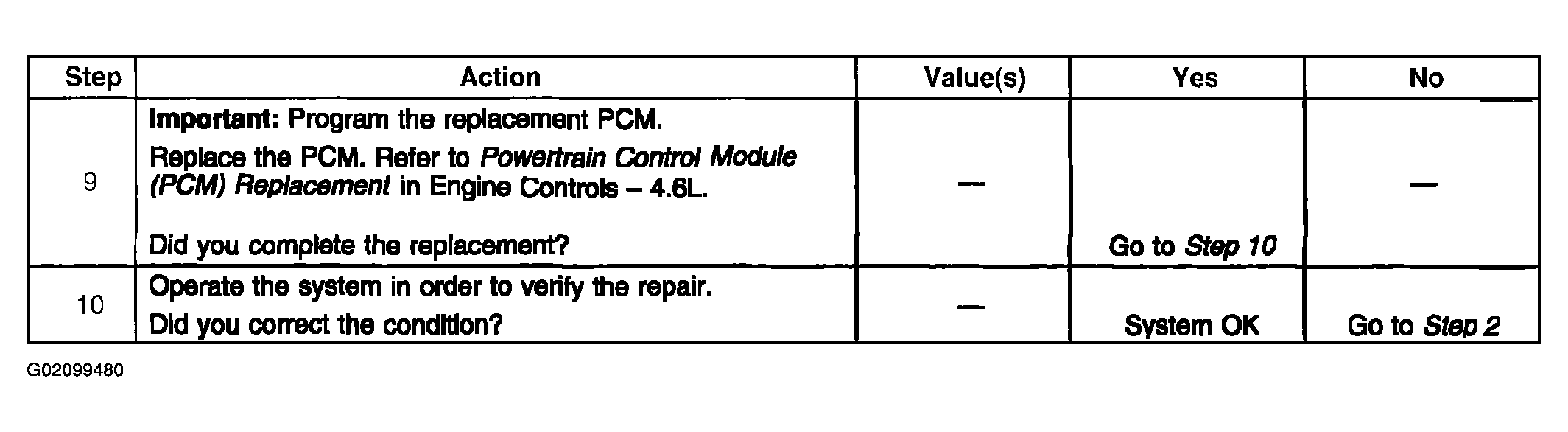

Fig 2: Diagnosis Procedure - Tachometer Inaccurate Or Inoperative (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
