Scan Tool Data List

Fig 1: Door Module(s) Parameter Table
G02099459Courtesy of GENERAL MOTORS CORP.

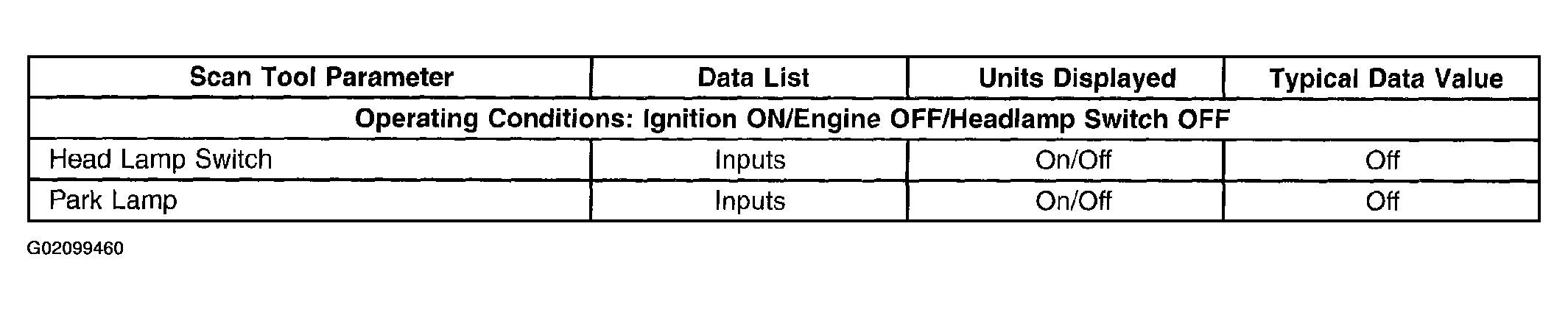

Fig 2: Dash Integration Module Parameter Table
G02099460Courtesy of GENERAL MOTORS CORP.

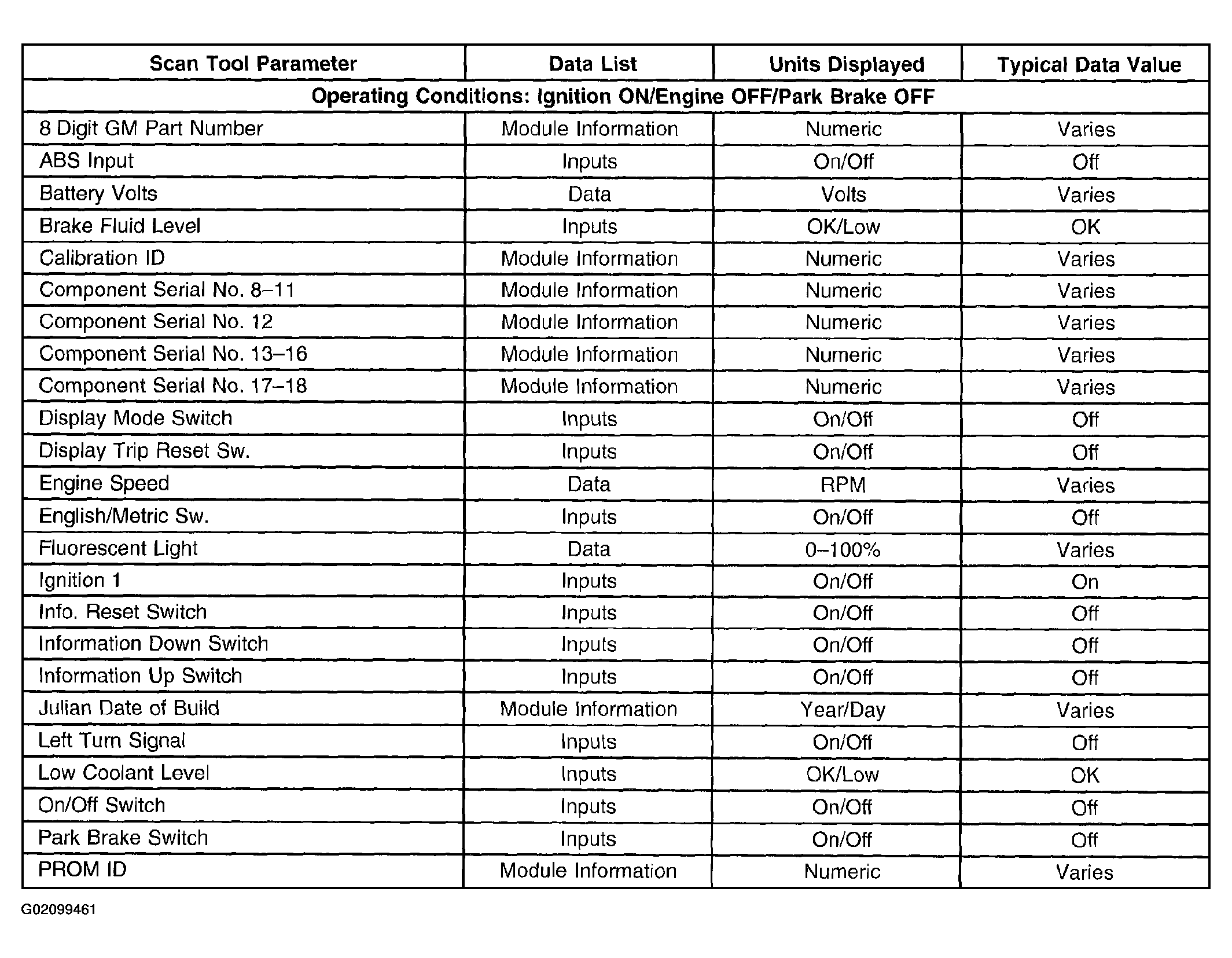

Fig 3: Instrument Panel Cluster Parameter Table (1 Of 2)
G02099461Courtesy of GENERAL MOTORS CORP.

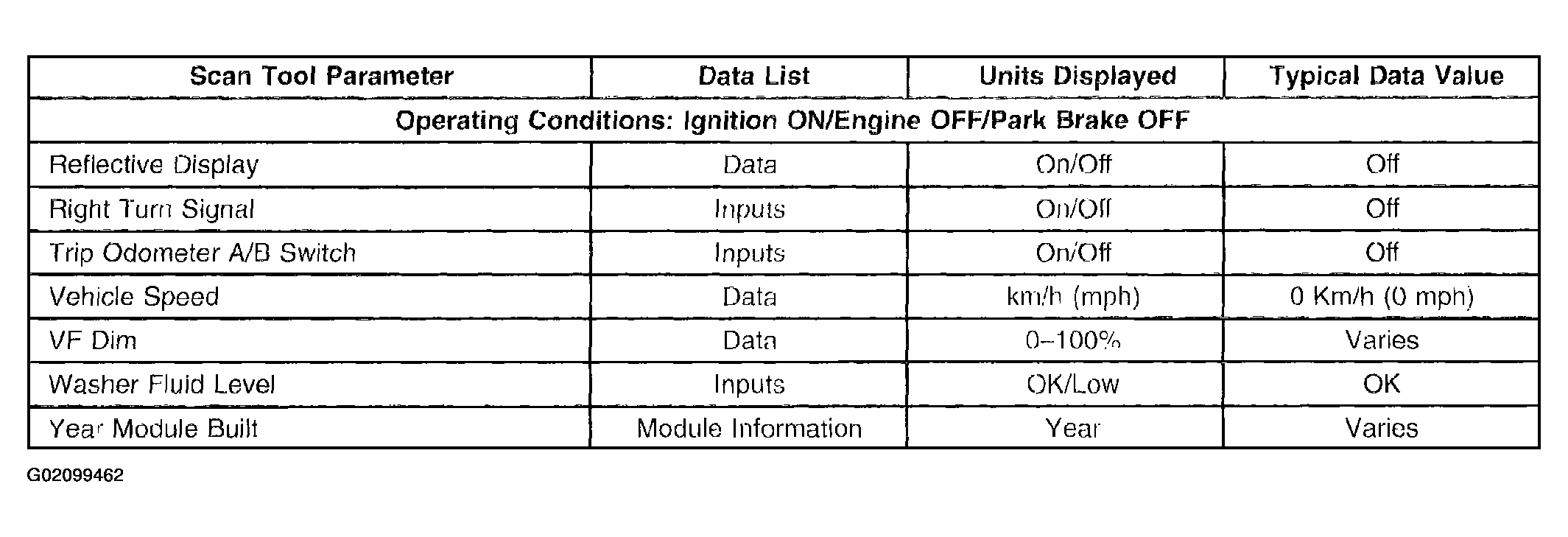

Fig 4: Instrument Panel Cluster Parameter Table (2 Of 2)
G02099462Courtesy of GENERAL MOTORS CORP.

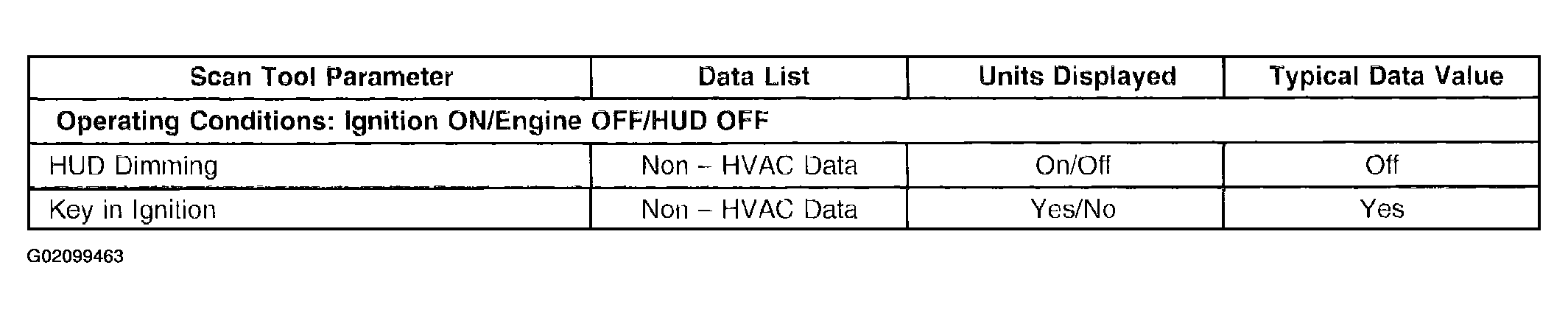

Fig 5: Instrument Panel Module Parameter Table
G02099463Courtesy of GENERAL MOTORS CORP.

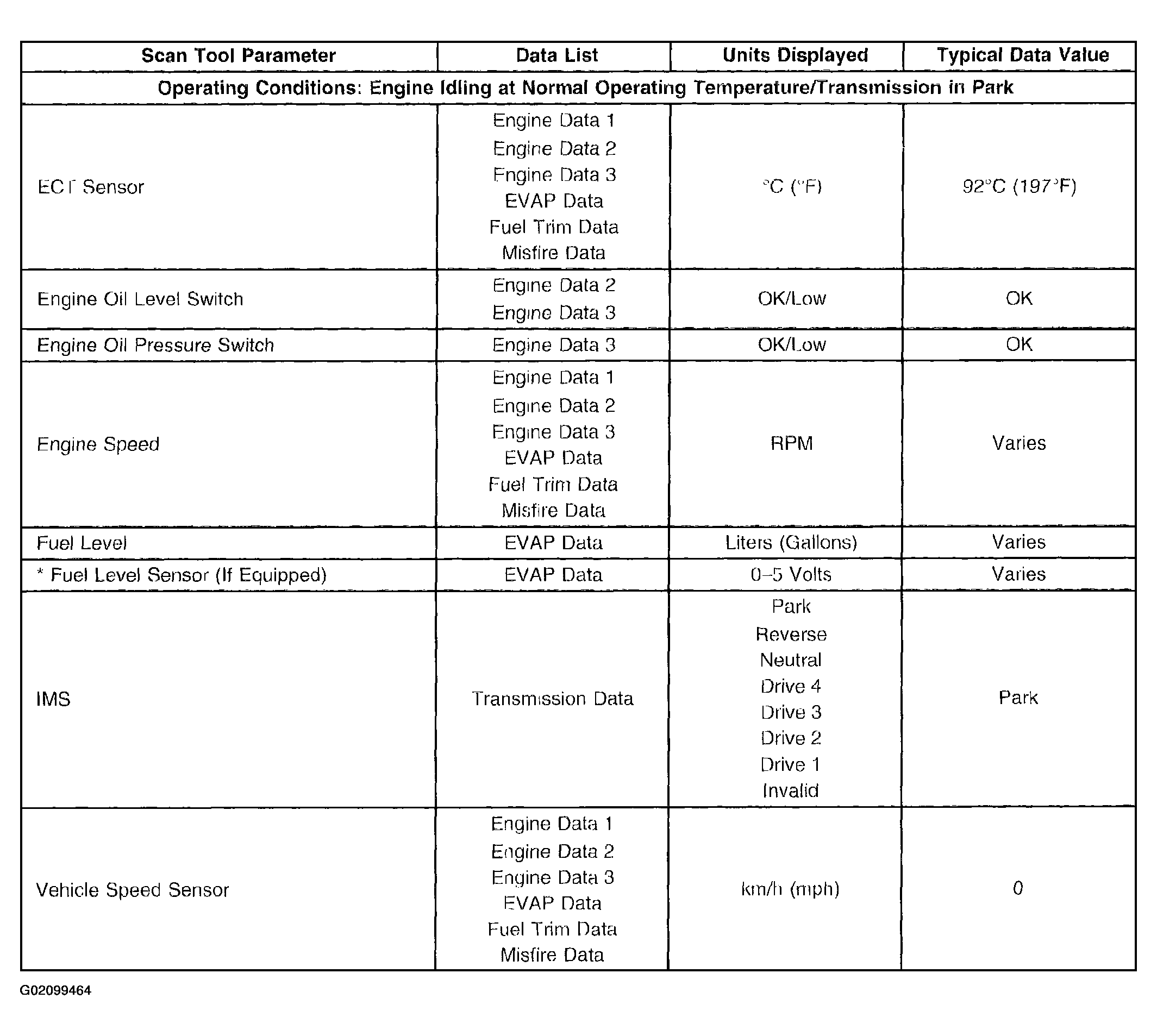

Fig 6: Powertrain Control Module Parameter Table
G02099464Courtesy of GENERAL MOTORS CORP.
