Night Vision Display Poor Video Image

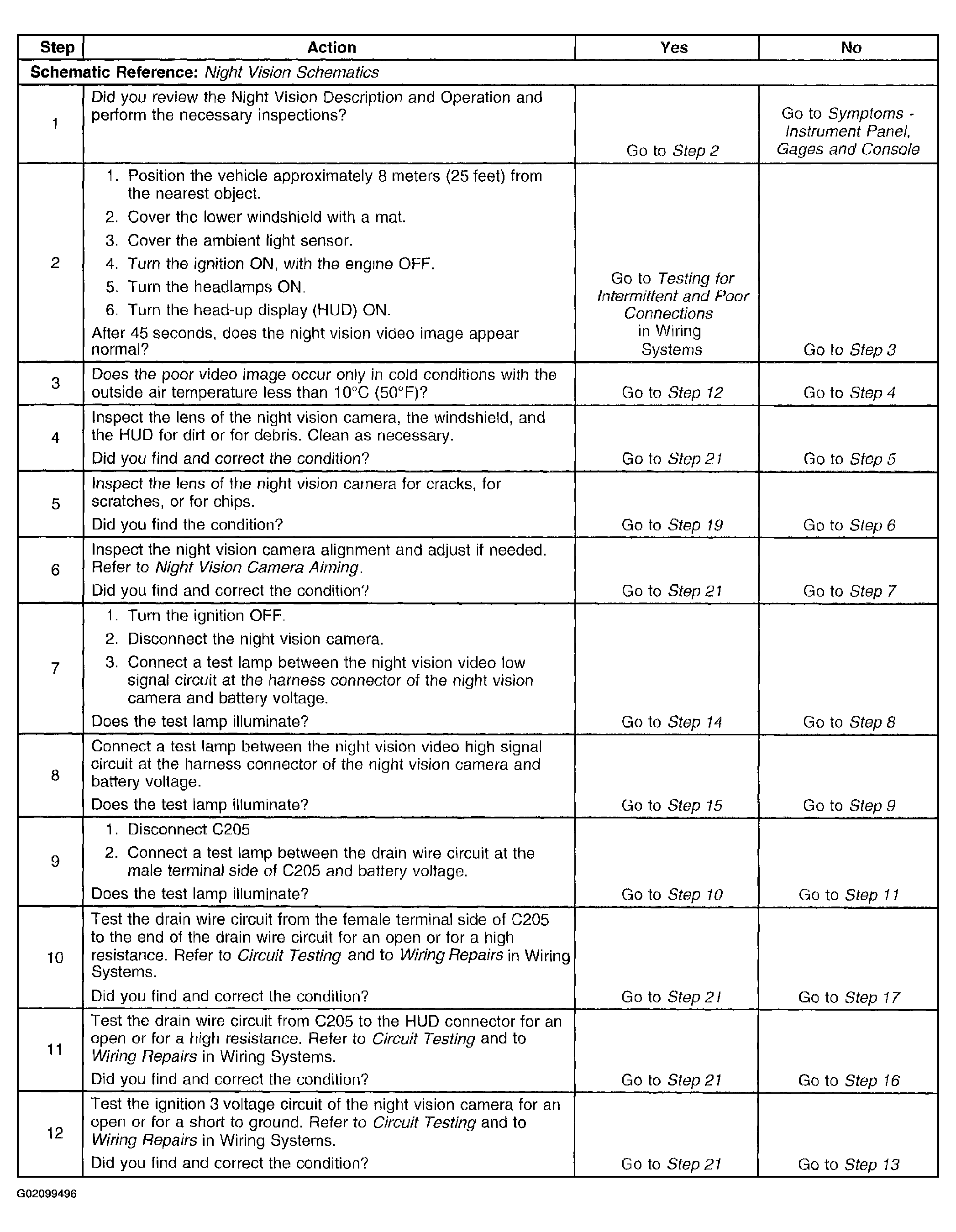

Fig 1: Diagnosis Procedure - Night Vision Display Poor Video Image (1 Of 2)
G02099496Courtesy of GENERAL MOTORS CORP.

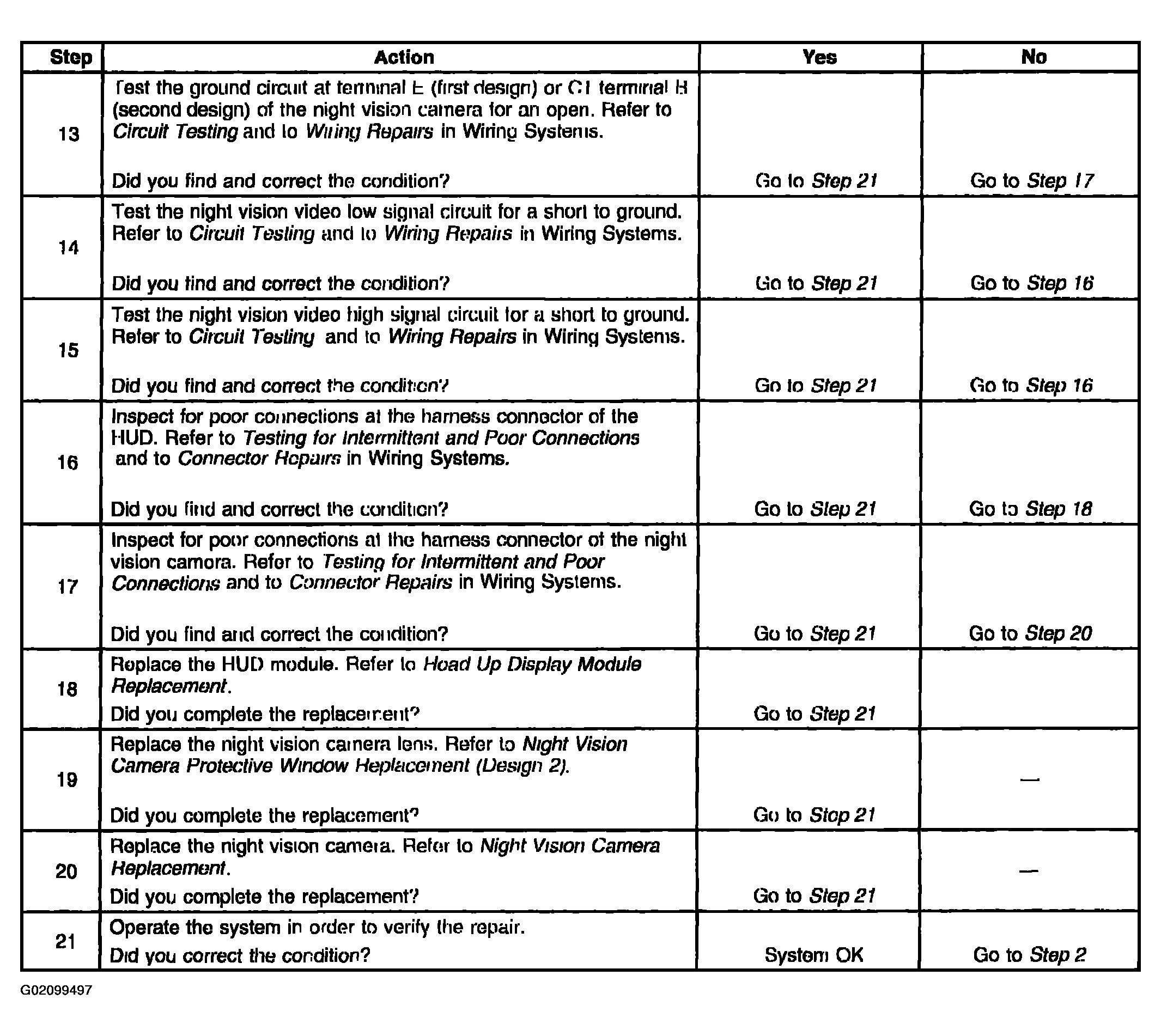

Fig 2: Diagnosis Procedure - Night Vision Display Poor Video Image (2 Of 2)
G02099497Courtesy of GENERAL MOTORS CORP.
