Night Vision Display Inoperative

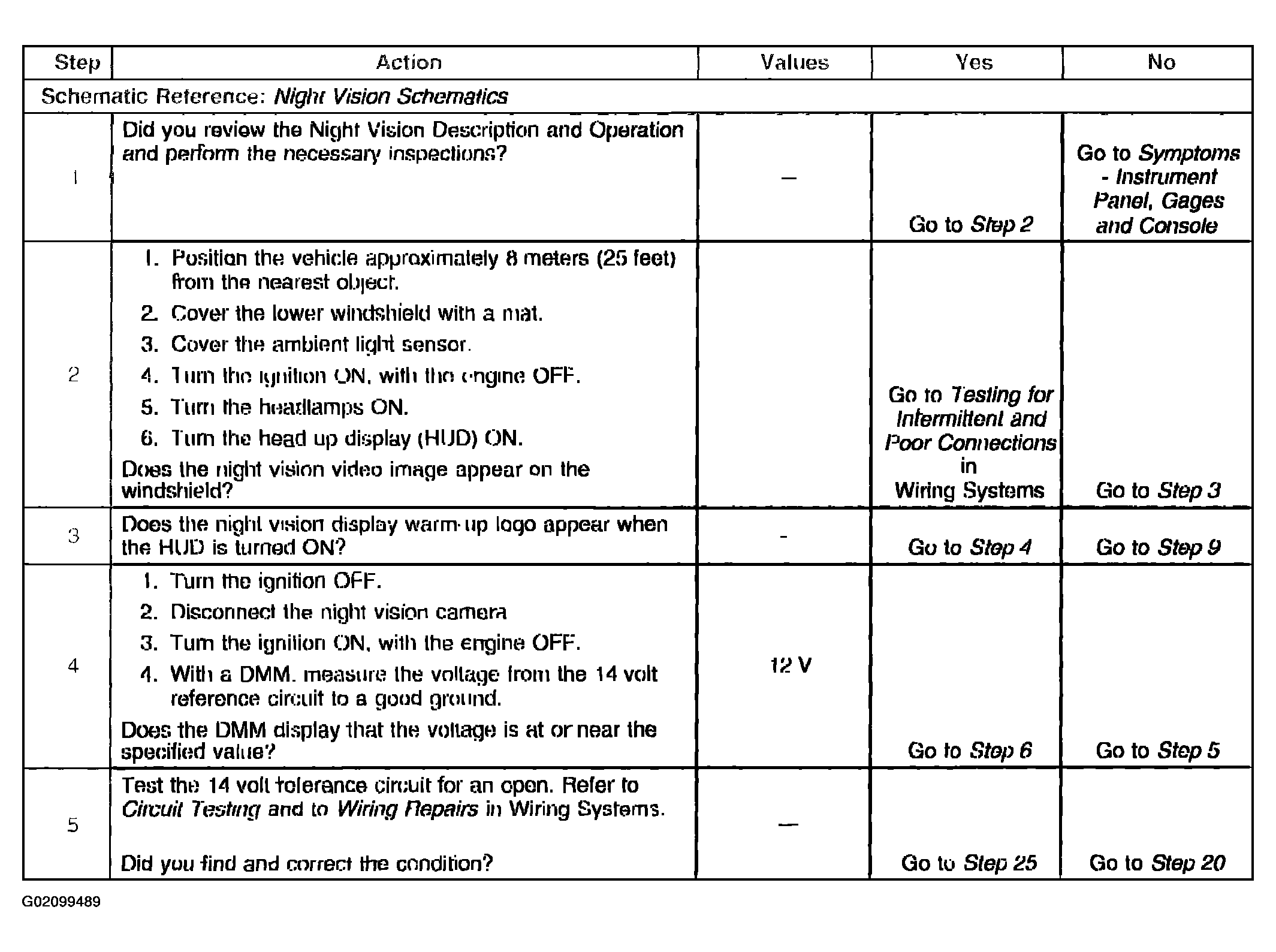

Fig 1: Diagnosis Procedure - Night Vision Display Inoperative (1 Of 3)
G02099489Courtesy of GENERAL MOTORS CORP.

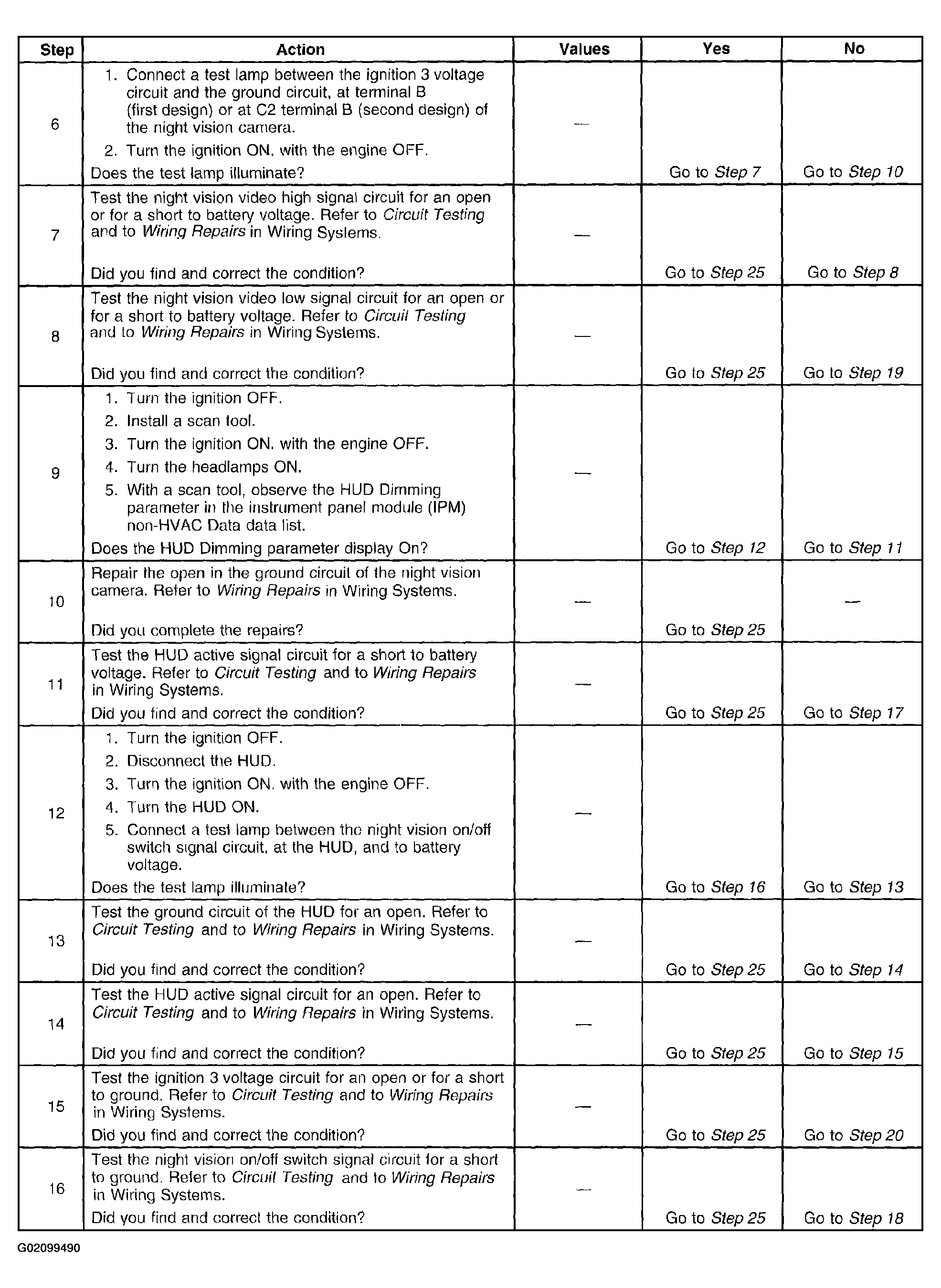

Fig 2: Diagnosis Procedure - Night Vision Display Inoperative (2 Of 3)
G02099490Courtesy of GENERAL MOTORS CORP.

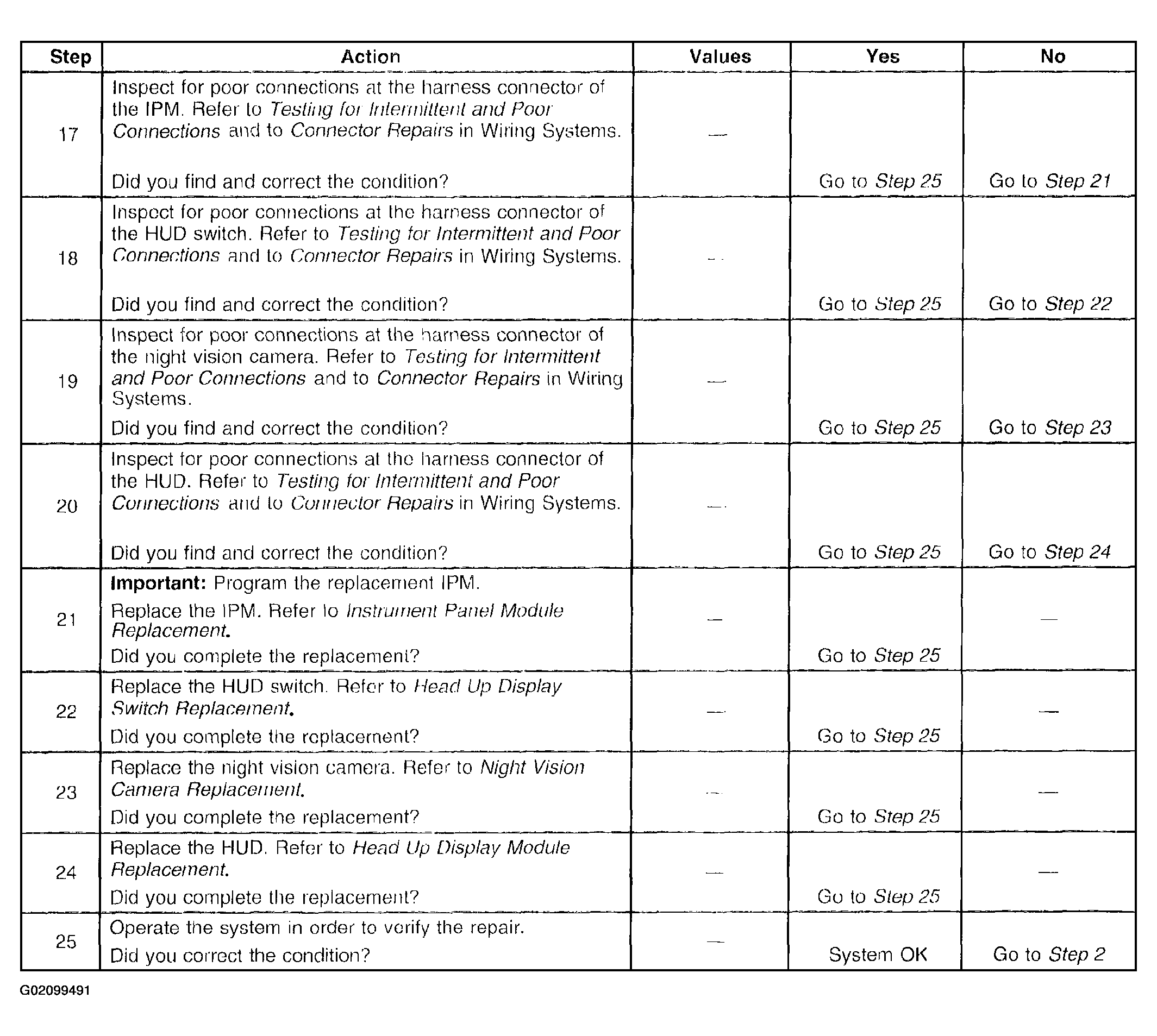

Fig 3: Diagnosis Procedure - Night Vision Display Inoperative (3 Of 3)
G02099491Courtesy of GENERAL MOTORS CORP.
