Night Vision Display Height Adjustment Inoperative

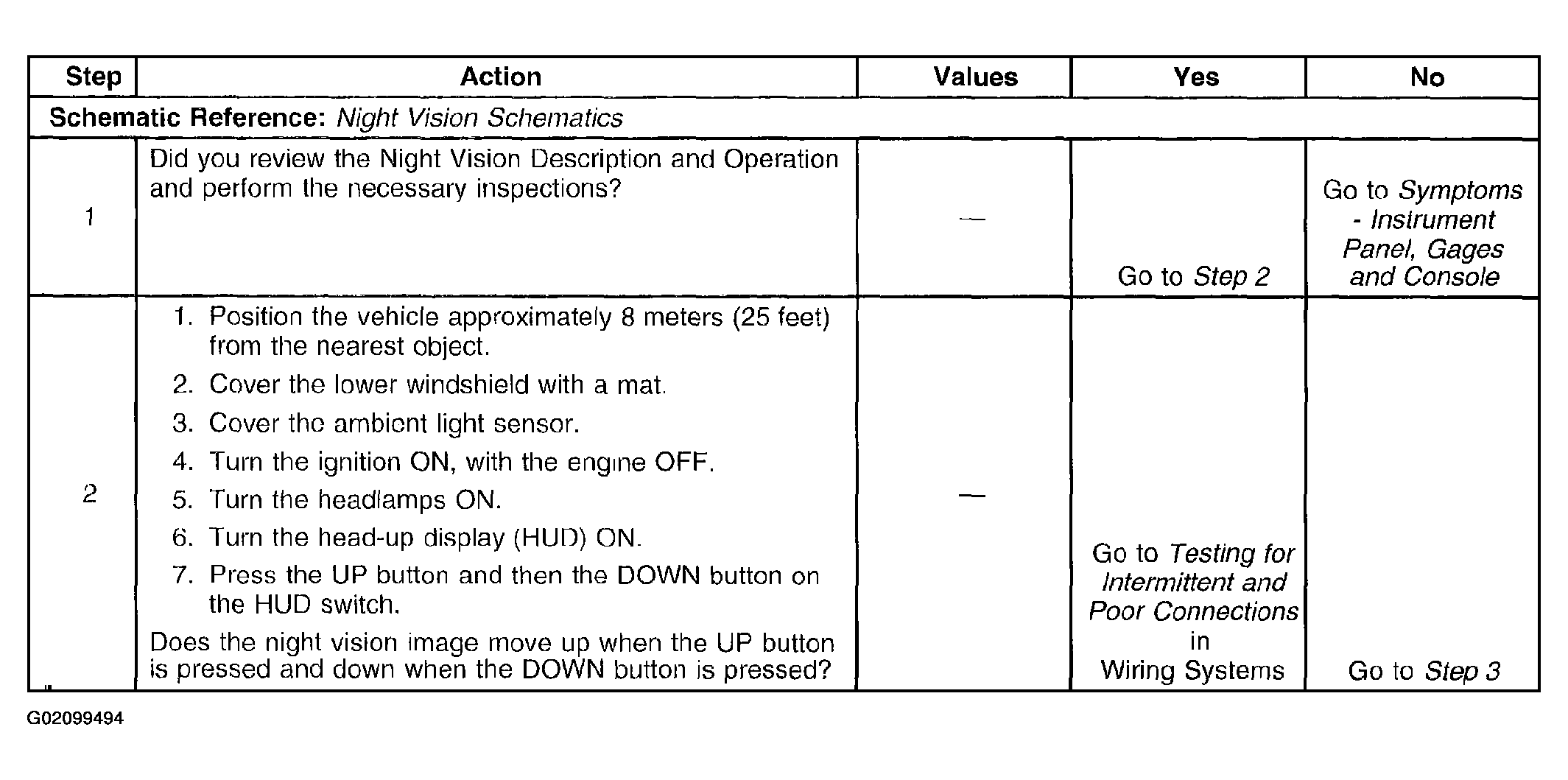

Fig 1: Diagnosis Procedure - Night Vision Display Height Adjustment Inoperative (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

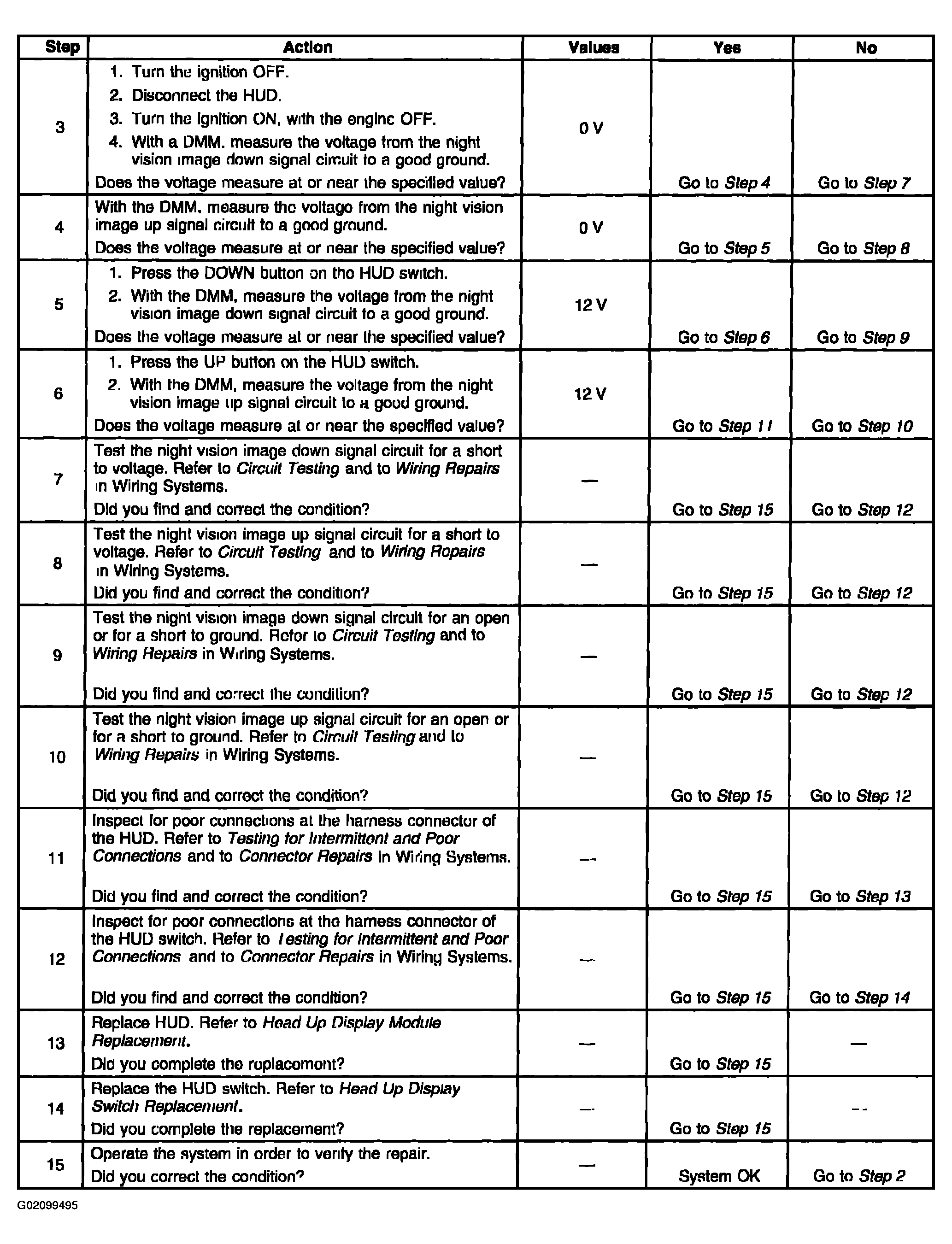

Fig 2: Diagnosis Procedure - Night Vision Display Height Adjustment Inoperative (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
