Night Vision Display Does Not Dim

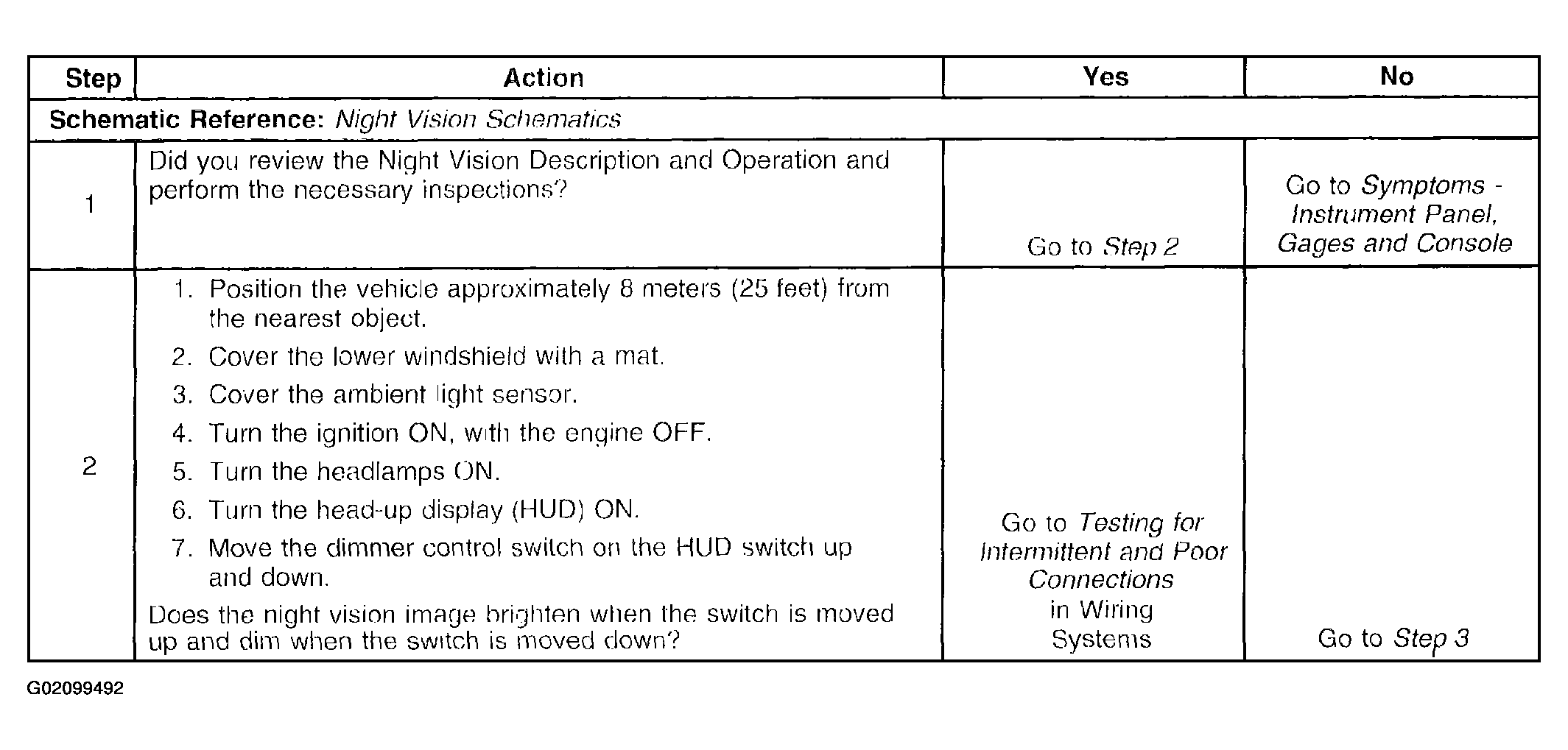

Fig 1: Diagnosis Procedure - Night Vision Display Does Not Dim (1 Of 2)
G02099492Courtesy of GENERAL MOTORS CORP.

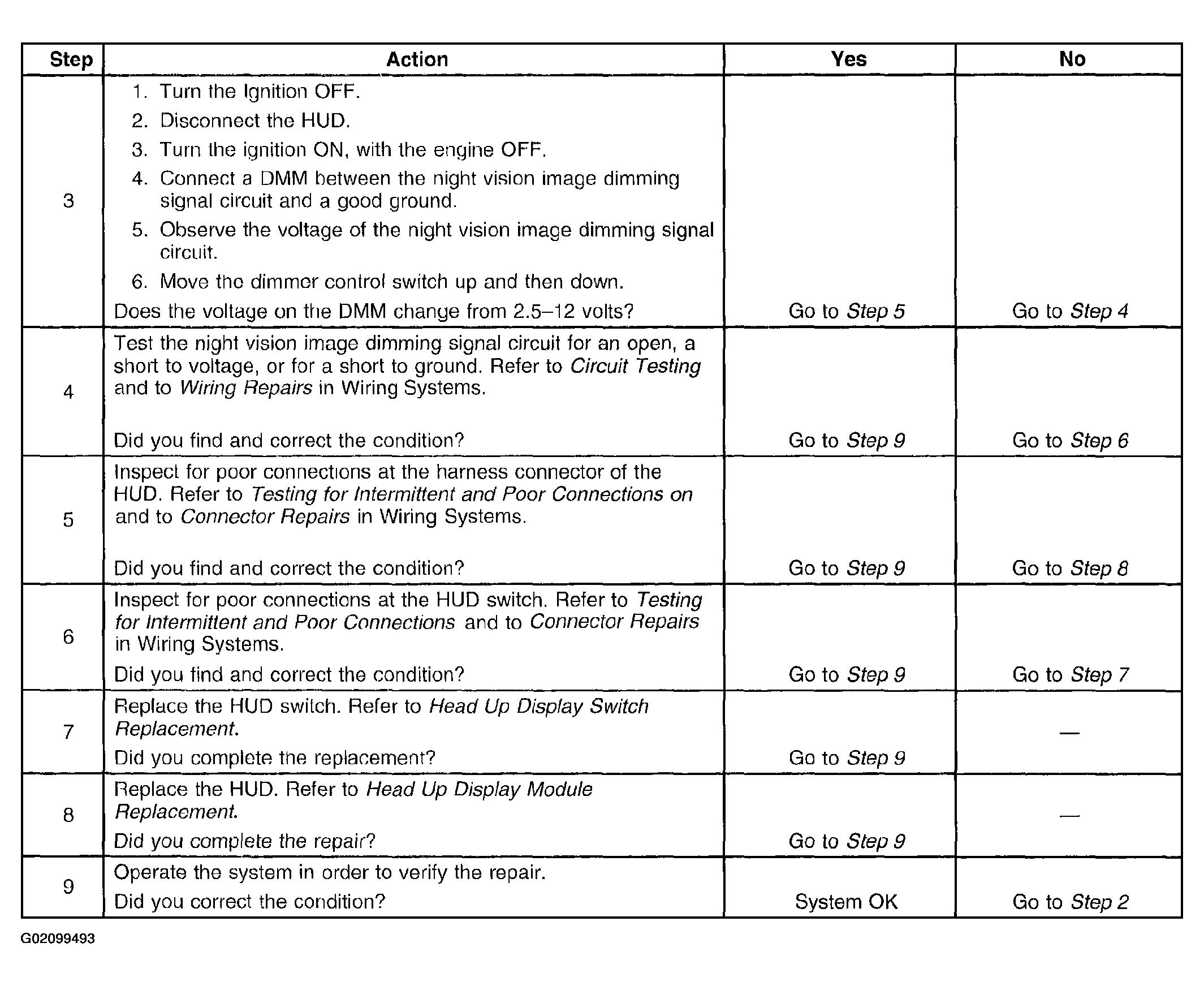

Fig 2: Diagnosis Procedure - Night Vision Display Does Not Dim (2 Of 2)
G02099493Courtesy of GENERAL MOTORS CORP.
