Night Vision Display Always On

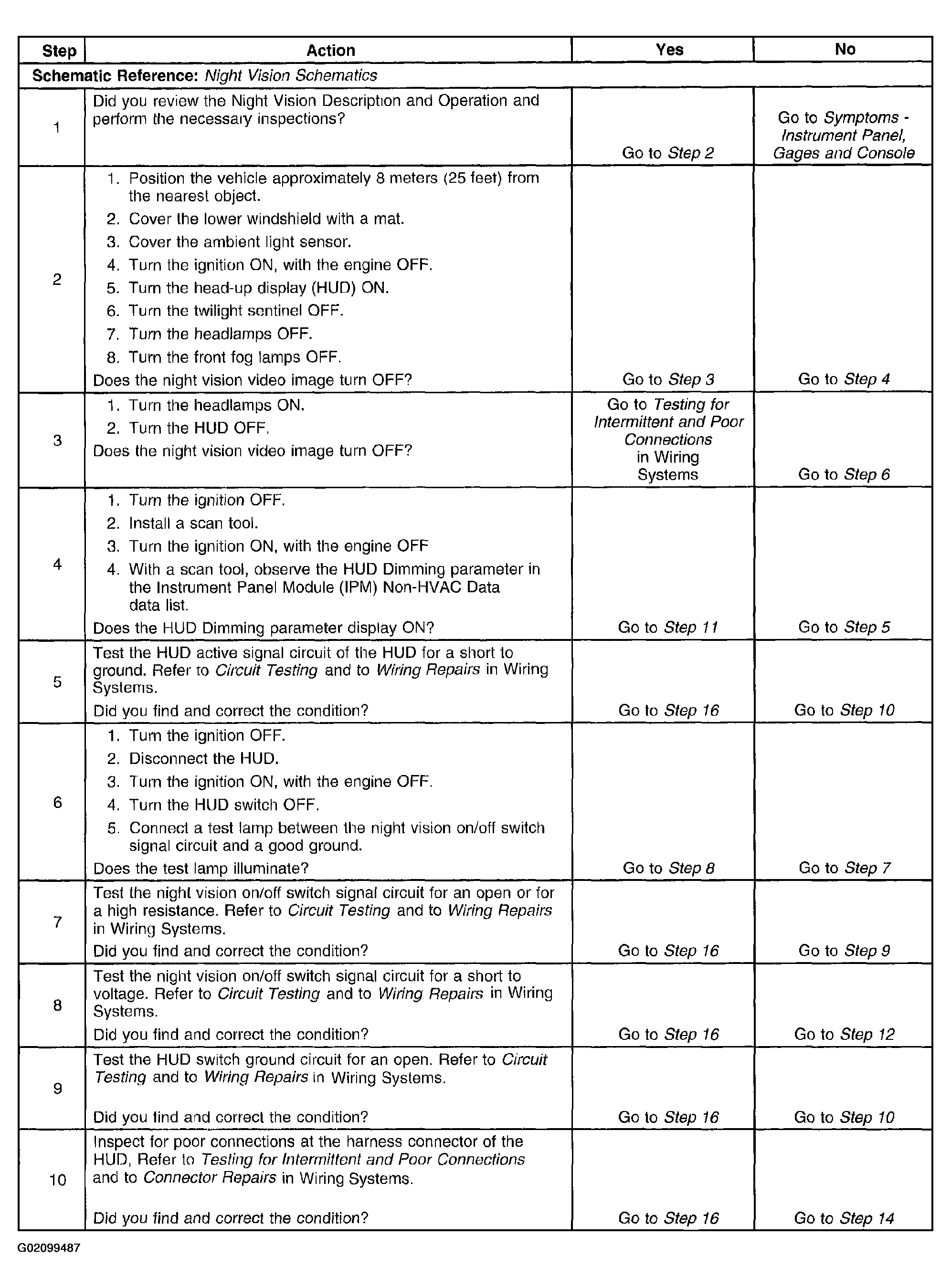

Fig 1: Diagnosis Procedure - Night Vision Display Always On (1 Of 2)
G02099487Courtesy of GENERAL MOTORS CORP.

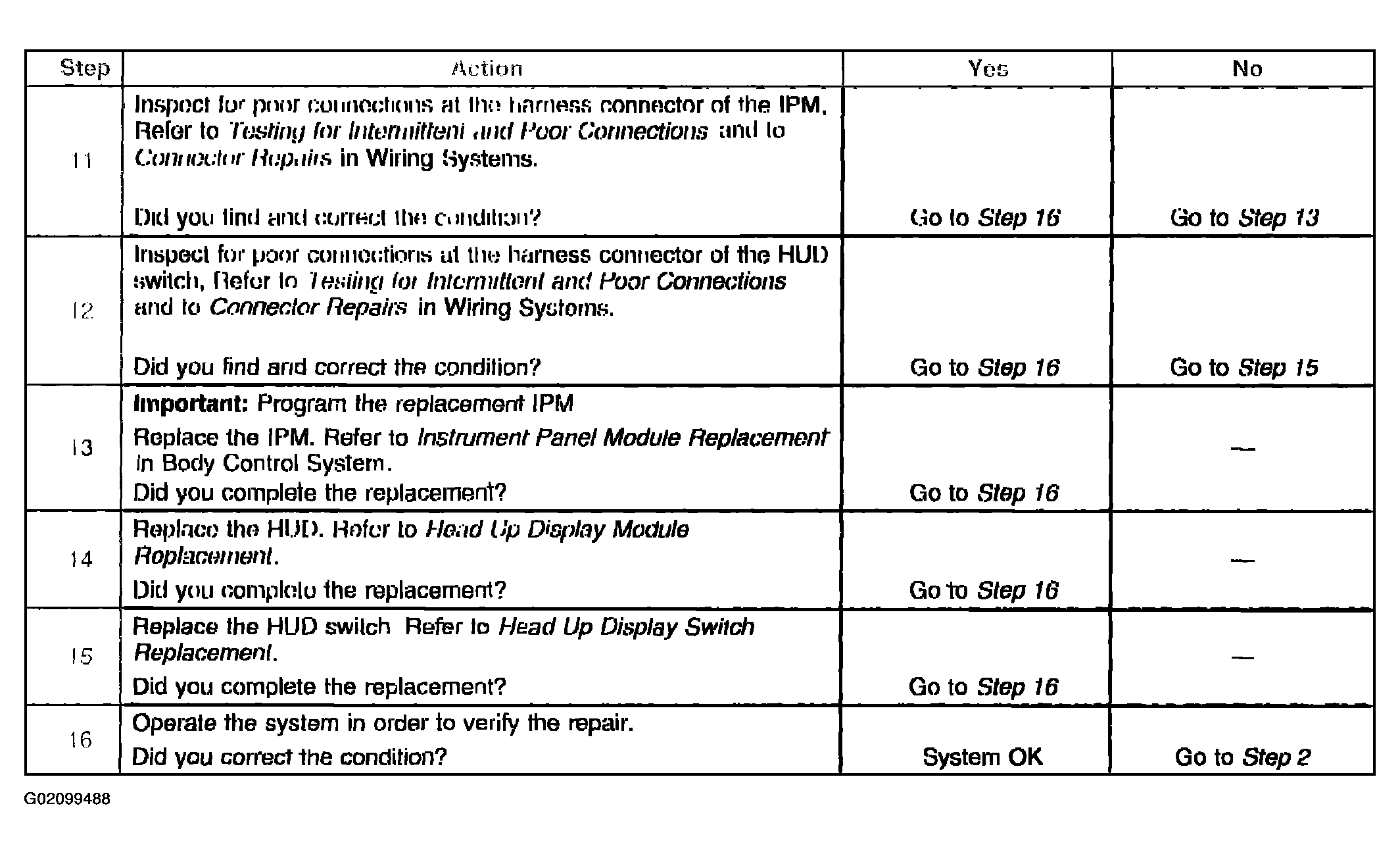

Fig 2: Diagnosis Procedure - Night Vision Display Always On (2 Of 2)
G02099488Courtesy of GENERAL MOTORS CORP.
